1695360 - Simplicity 42" Snow Thrower Attachment Auger Drive Group Parts Diagram

42" Snow Thrower Attachment

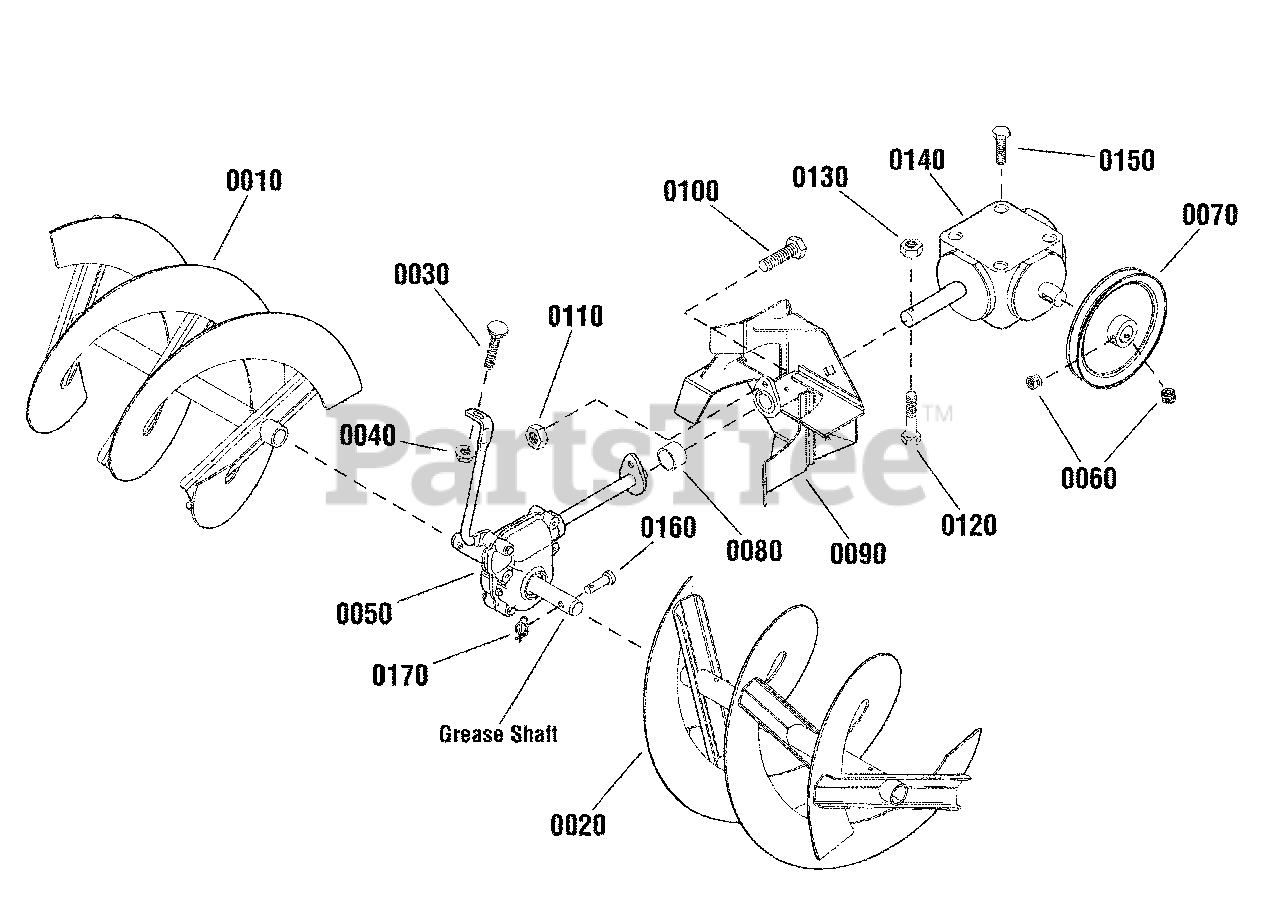

Auger Drive Group Parts Diagram

  • Title
0010

Simplicity 1734682A

AUGER ASSEMBLY, 42" Right Hand
(Superseded to 1734682ASM)

$341.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1734681A

AUGER ASSEMBLY, 42" Left Hand
(Superseded to 1734681ASM)

$302.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1931333

BOLT, Carriage 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0040

Simplicity 1931277

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Simplicity 1732207

GEARBOX ASSEMBLY, Auger
(Superseded to 1732207SM)

Note: (See Gearbox Assembly Group)

$396.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1928721

SET SCREW, Square Head Cup 5/16-18 x 1/2
(Superseded to 1928721SM)

$4.99

$

In Stock, only 2 left!

0

0070

Simplicity 1724003

PULLEY, 7.50 OD
(Superseded to 1724003SM)

$87.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1723997

BUSHING
(Superseded to 1723997SM)

$26.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1723994A

IMPELLER
(Superseded to 1723994ASM)

$301.99

$

In Stock, only 1 left!

0

0100

Simplicity 1931335

BOLT, Carriage 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0110

Simplicity 1919438

NUT, Hex, Nylock 5/16 - 18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

0120

Simplicity 1960506

CAPSCREW, 1/4 - 20 x 7/8
(Superseded to 704034)

$5.49

$

In Stock, only 1 left!

0

0130

Simplicity 1920397

NUT, Hex, Nylock 1/4 - 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 1723950A

GEARBOX ASSEMBLY
(Superseded to 1723950SM)

$404.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1933260

CAPSCREW, Whiz 3/8 - 16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

0160

Simplicity 1668344

PIN, Shear .248 ID x 1-3/4
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0170

Simplicity 7023590

COTTER PIN, 1/4" Self Locking
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0

--

Simplicity 1686947SM

SEAL KIT, for Gear Box, Reference No. 0140

$

$

Not available
