1695360 - Murray 42" Two Stage Snow Thrower Attachment Auger Housing & Chute Group Parts Diagram

42" Two Stage Snow Thrower Attachment

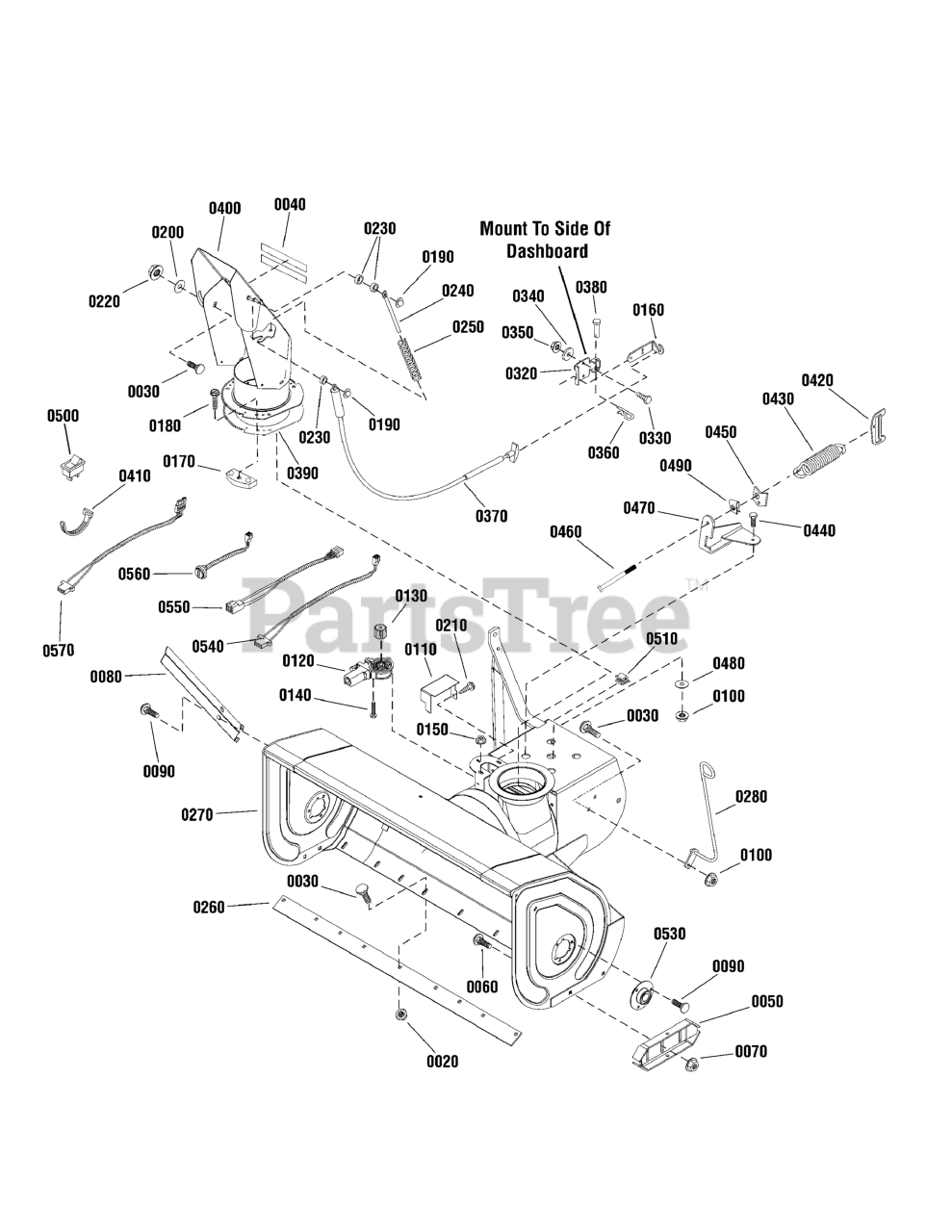

Auger Housing & Chute Group Parts Diagram

  • Title

0020

Murray 1935048

NUT, Hex Flange, Two Way Locking, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0030

Murray 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0040

Murray 1733600

DECAL, Black Strip
(Superseded to 1733600SM)

$11.99

$

Usually ships in 2-12 days

0

0050

Murray 1725747A

SKID SHOE
(Superseded to 1725747BMYP)

$92.99

$

In Stock, Qty 5

0

0060

Murray 1960702

BOLT, Carriage, 3/8-16 X 1
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

0070

Murray 1960687

NUT, Hex Lock Flange, 5/16 - 18 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0080

Murray 1733102A

DRIFT CUTTER
(Superseded to 1733102ASM)

$31.99

$

In Stock, only 4 left!

0

0090

Murray 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 1960684

NUT, Hex Keps Conical Washer, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0110

Murray 1733934A

COVER, Gear, Black
(Superseded to 1733934ASM)

$

$

Not available

0120

Murray 1728965

MOTOR, Spout Rotator, 38"
(Superseded to 1728965SM)

$176.99

$

In Stock, Qty 20+

0

0130

PINION, 1-1/4 Lg

$

$

Not available

0140

Murray 2860604

CAPSCREW, Hex Washer, #10 x 1-1/4
(Superseded to 2860604SM)

$4.49

$

In Stock, only 1 left!

0

0150

Murray 1960745

NUT, Hex Keps, #10 - 24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

0160

Murray 1726411A

BRACKET, Cable
(Superseded to 1726411ASM)

$

$

Not available

0170

Murray 1666613

CHUTE RETAINERS, Hold Down
(Superseded to 1666613SM)

$3.49

$

In Stock, Qty 20+

0

0180

Murray 1960001

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 16

0

0190

Murray 1960126

PUSHNUT, 1/4 Dia.
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

0200

Murray 2860210

WASHER, Nylon, 3/8
(Superseded to 2860210SM)

$4.49

$

In Stock, only 3 left!

0

0210

Murray 1927428

SCREW, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

0220

Murray 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0230

Murray 1702219

SPACER
(Superseded to 1702219SM)

$8.49

$

Usually ships in 2-12 days

0

0240

Murray 1611945

ROD, Spring
(Superseded to 1611945SM)

$13.99

$

In Stock, only 1 left!

0

0250

Murray 1611939

SPRING, Compression
(Superseded to 1611939SM)

$10.99

$

In Stock, only 1 left!

0

0260

Murray 1723986A

SCRAPER BAR, 42"
(Superseded to 1723986ASM)

$68.99

$

In Stock, only 4 left!

0

0270

Murray 1687340

AUGER HOUSING ASSEMBLY, 42"

$

$

Not available

0280

Murray 1717591A

GUIDE ASSEMBLY, Cable
(Superseded to 1717591ASM)

$27.99

$

In Stock, only 1 left!

0

0320

Murray 1721590A

BRACKET, Cable Mount
(Superseded to 1721590ASM)

$27.99

$

In Stock, Qty 5

0

0330

Murray 1924009

CAPSCREW, Hex Head, 1/4 - 20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

0340

Murray 1960151

WASHER, Plain 1/4 x 1-1/4 x 5/64
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

0350

Murray 1960685

NUT, Hex KEPS Conical Washer, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 12

0

0360

Murray 1960221

CLIP, Hairpin
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

0370

Murray 1724568

CABLE ASSEMBLY
(Superseded to 1724568SM)

$170.99

$

Usually ships in 2-12 days

0

0380

Murray 1668344

SHEAR PIN, .248 ID x 1-3/4" Long
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0390

Murray 1717477A

GEAR, Chute
(Superseded to 1717477ASM)

$50.99

$

Usually ships in 2-12 days

0

0400

Murray 1736420A

CHUTE ASSEMBLY
(Superseded to 1736420AYP)

$384.99

$

Usually ships in 2-12 days

0

0410

Murray 1701011

TIE, Self Locking, 7-5/16 Long
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0420

Murray 1724641A

ANCHOR, Spring
(Superseded to 1724641ASM)

$8.49

$

In Stock, only 1 left!

0

0430

Murray 1723412

SPRING, Extension
(Superseded to 1723412SM)

$58.99

$

In Stock, only 1 left!

0

0440

Murray 1921333

BOLT, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0450

Murray 1723499

RETAINER, Spring Flat
(Superseded to 1723499SM)

$8.49

$

In Stock, only 3 left!

0

0460

Murray 1722357

CAPSCREW, Hex Washer Head, 5/16-18 x 4-1/2
(Superseded to 1722357SM)

$17.99

$

Usually ships in 2-12 days

0

0470

Murray 1732127A

ANCHOR ASSEMBLY
(Superseded to 1732127ASM)

$54.99

$

Usually ships in 2-12 days

0

0480

Murray 1933468

WASHER, 5/16
(Superseded to 1933468SM)

$4.49

$

Usually ships in 2-12 days

0

0490

Murray 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, only 4 left!

0

0500

Murray 1724210

SWITCH, Electric Lift Rocker
(Superseded to 1724210SM)

$54.99

$

In Stock, only 1 left!

0

0510

Murray 1715956

CLIP, Wire
(Superseded to 1715956SM)

$4.99

$

Usually ships in 2-12 days

0

0530

Murray 1734645

RETAINER, Bearing
(Superseded to 703411)

$51.99

$

Usually ships in 2-12 days

0

0540

Murray 1733488

HARNESS, Chute
(Superseded to 1733488SM)

$48.99

$

Usually ships in 2-12 days

0

0550

Murray 1722735

HARNESS, Spout Rotator
(Superseded to 1722735SM)

Note: (Used on Non-Electric Height of Cut Model Tractors)

$

$

Not available

0560

Murray 1716987

HARNESS, Power Outlet
(Superseded to 1716987SM)

Note: (Used on Non-Electric Height of Cut Model Tractors)

$91.99

$

Usually ships in 2-12 days

0

0570

Murray 1732236

HARNESS, Motor
(Superseded to 1732236SM)

Note: (Used on Non-Electric Height of Cut Model Tractors)

$73.99

$

Usually ships in 2-12 days

0

0600

Murray 1757289AYP

BRACKET, Spring Assist, RH

$69.99

$

Usually ships in 2-12 days

0

0610

Murray 1921968SM

CAPSCREW, Hex, 3/8-16 x 1-3/8

$4.49

$

In Stock, only 3 left!

0
