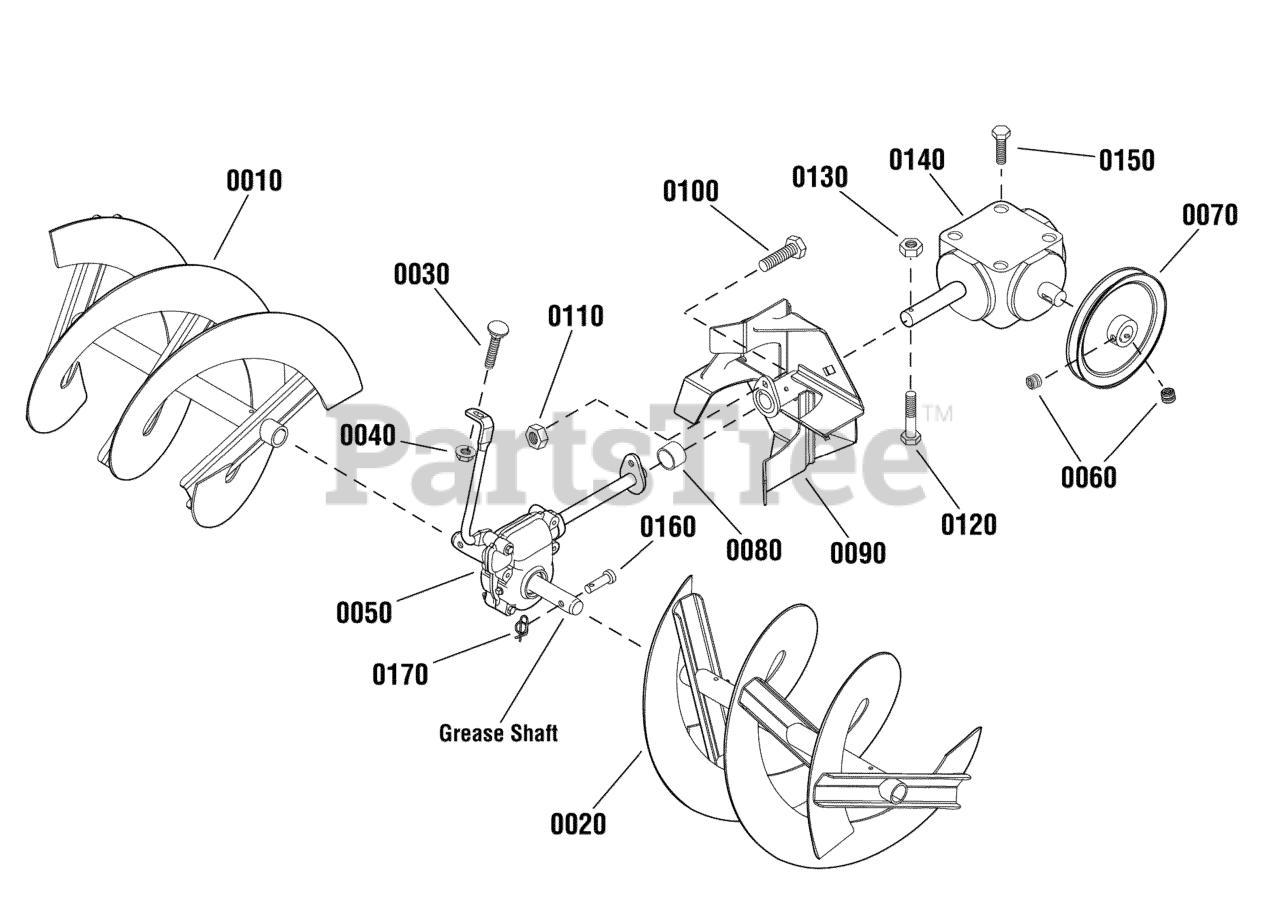

1695360 - Murray 42" Two Stage Snow Thrower Attachment Auger Drive Group Parts Diagram

42" Two Stage Snow Thrower Attachment

Auger Drive Group Parts Diagram

  • Title

0010

Murray 1734682A

AUGER ASSEMBLY, 42" Right Hand
(Superseded to 1734682ASM)

$341.99

$

Usually ships in 2-12 days

0

0020

Murray 1734681A

AUGER ASSEMBLY, 42" Left Hand
(Superseded to 1734681ASM)

$302.99

$

Usually ships in 2-12 days

0

0030

Murray 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0040

Murray 1931277

NUT, Hex Flange Whiz Lock, 5/16-18 all Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Murray 1732207

GEARBOX ASSEMBLY, Auger
(Superseded to 1732207SM)

Note: (See Gearbox Assembly Group)

$396.99

$

Usually ships in 2-12 days

0

0060

Murray 1928721

SCREW, Set, Square Head Cup Point 5/16-18 x 1/2 G8
(Superseded to 1928721SM)

$4.99

$

In Stock, only 2 left!

0

0070

Murray 1724003

PULLEY, 7.50 OD
(Superseded to 1724003SM)

$87.99

$

Usually ships in 2-12 days

0

0080

Murray 1723997

BUSHING
(Superseded to 1723997SM)

$26.99

$

Usually ships in 2-12 days

0

0090

Murray 1723994A

IMPELLER
(Superseded to 1723994ASM)

$301.99

$

In Stock, only 1 left!

0

0100

Murray 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0110

Murray 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

0120

Murray 1960506

BOLT, Socket Button Head, 1/4-20 x 7/8
(Superseded to 704034)

$5.49

$

In Stock, only 1 left!

0

0130

Murray 1920397

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0140

Murray 1723950A

GEARBOX ASSEMBLY, 42"
(Superseded to 1723950SM)

$404.99

$

Usually ships in 2-12 days

0

0150

Murray 1933260

CAPSCREW, Hex Flange Whiz Lock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

0160

Murray 1668344

SHEAR PIN, .248 ID x 1-3/4" Long
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0170

Murray 7023590

PIN, Cotter, Self Locking, 1/4"
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0

--

Murray 1686947SM

SEAL KIT

Note: (Gear Box, Ref. No. 0140)

$

$

Not available
