1695360-01 - Snapper 42" Snow Thrower Attachment Gearbox Assembly (80027866) Parts Diagram

42" Snow Thrower Attachment

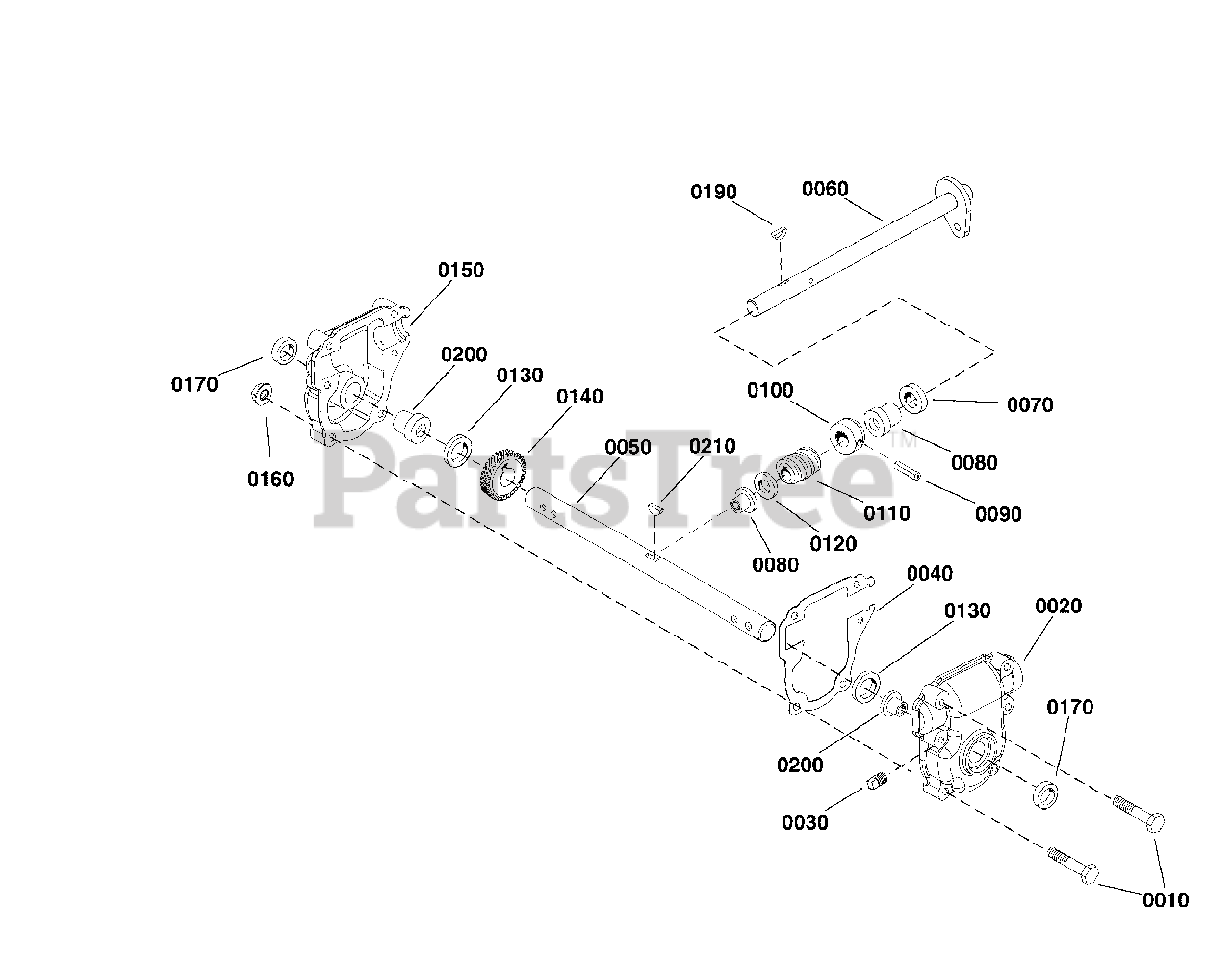

Gearbox Assembly (80027866) Parts Diagram

  • Title
0010

Snapper 704291

CAPSCREW, Hex Head, 1/4-20 X 2 1/4

$5.49

$

Usually ships in 2-12 days

0

0020

GEAR CASE HALF, Left Hand

$

$

Not available

0030

FITTING, Pipe Plug

$

$

Not available

0040

Snapper 772164

KIT, Gasket & Seal

Note: (Includes items 0050, 0080, 0180)

$27.99

$

Usually ships in 2-12 days

0

0050

SHAFT, Auger 1 x 12 1/4

$

$

Not available

0060

Snapper 1723995

SHAFT & TAB ASSEMBLY
(Superseded to 1723995SM)

$121.99

$

Usually ships in 2-12 days

0

0070

Snapper 772164

KIT, Gasket & Seal

Note: (Includes items 0050, 0080, 0180)

$27.99

$

Usually ships in 2-12 days

0

0080

BUSHING, 3/4 x 1

$

$

Not available

0090

PIN, Drive Lock, 3/16 X 1-1/2

$

$

Not available

0100

COLLAR, Thrust 3/4 x 1 1/2

$

$

Not available

0110

Snapper 706853

KIT, Gears

Note: (Includes items 0110 & 0140)

$

$

Not available

0120

WASHER, Thrust .76 x 1 3/8

$

$

Not available

0130

WASHER, Thrust 1 x 1 5/8

$

$

Not available

0140

Snapper 706853

KIT, Gears

Note: (Includes items 0110 & 0140)

$

$

Not available

0150

GEAR CASE HALF, Right Hand

$

$

Not available

0160

Snapper 703916

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, only 2 left!

0

0170

Snapper 772164

KIT, Gasket & Seal

Note: (Includes items 0050, 0080, 0180)

$27.99

$

Usually ships in 2-12 days

0

0190

Snapper 703891

KEY, Woodruff, Plain, 3/16 x 5/8

$4.99

$

In Stock, Qty 20+

0

0200

BUSHING, 1 x 1 1/4

$

$

Not available

0210

Snapper 704280

KEY, Woodruff, 1/4 x 3/4

$4.99

$

In Stock, Qty 9

0

--

GREASE, Brown Lithium Mobilux EP1 (3oz)

Note: (Use with Steel Gears)

$

$

Not available

--

GREASE, GR-132 (3oz)

Note: (Use with Brass Gears)

$

$

Not available
