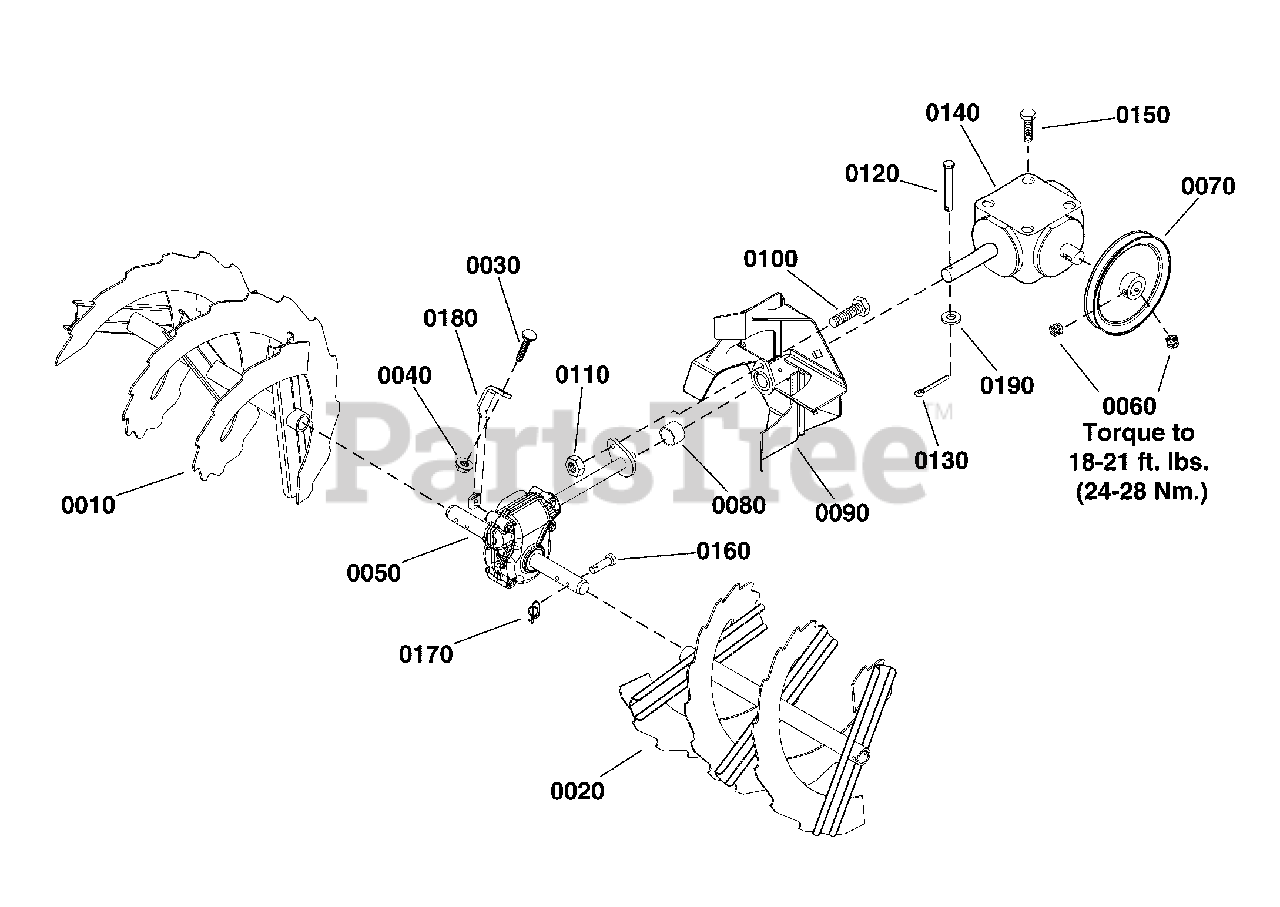

1695360-01 - Snapper 42" Snow Thrower Attachment Auger Drive Group Parts Diagram

42" Snow Thrower Attachment

Auger Drive Group Parts Diagram

  • Title
0010

Snapper 1734682A

AUGER ASSEMBLY, 42" Right Hand
(Superseded to 1734682ASM)

$341.99

$

Usually ships in 2-12 days

0

0020

Snapper 1734681A

AUGER ASSEMBLY, 42" Left Hand
(Superseded to 1734681ASM)

$302.99

$

Usually ships in 2-12 days

0

0030

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0040

Snapper 703222

NUT, Hex, KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0050

Snapper 772316

GEARBOX ASSEMBLY, Auger

Note: (For service parts. See Gearbox Assembly)

$396.99

$

Usually ships in 2-12 days

0

0060

Snapper 1928721

SCREW, Set, Square Head Cup Point 5/16-18 x 1/2 G8
(Superseded to 1928721SM)

$4.99

$

In Stock, only 2 left!

0

0070

Snapper 1724003

PULLEY, 7.50 OD
(Superseded to 1724003SM)

$87.99

$

Usually ships in 2-12 days

0

0080

Snapper 1723997

BUSHING
(Superseded to 1723997SM)

$26.99

$

Usually ships in 2-12 days

0

0090

Snapper 1723994ASM

IMPELLER ASSEMBLY

$301.99

$

In Stock, only 1 left!

0

0100

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0110

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

0120

Snapper 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0130

Snapper 703312

PIN, Cotter, 3/32 X 3/4

$3.99

$

In Stock, Qty 20+

0

0140

Snapper 1723950ASM

GEARBOX ASSEMBLY
(Superseded to 1723950SM)

$404.99

$

Usually ships in 2-12 days

0

0150

Snapper 1933260

CAPSCREW, Hex Flange Whiz Lock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

0160

Snapper 1668344

SHEAR PIN, .248 ID x 1-3/4" Long
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0170

Snapper 7023590

PIN, Cotter, Self Locking, 1/4"
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0

0180

Snapper 84001699

ROD, Gear Box

$

$

Currently unavailable

0190

Snapper 84001700

WASHER, 1/4"

$2.99

$

Usually ships in 2-12 days

0

--

Snapper 1686947SM

SEAL KIT

Note: (For Gear Box, Ref. No. 0140)

$

$

Not available
