1695353 - Simplicity Clean Sweep Twin Grass Catcher for 38" Mower Twin Catcher Assembly Parts Diagram

Clean Sweep Twin Grass Catcher for 38" Mower

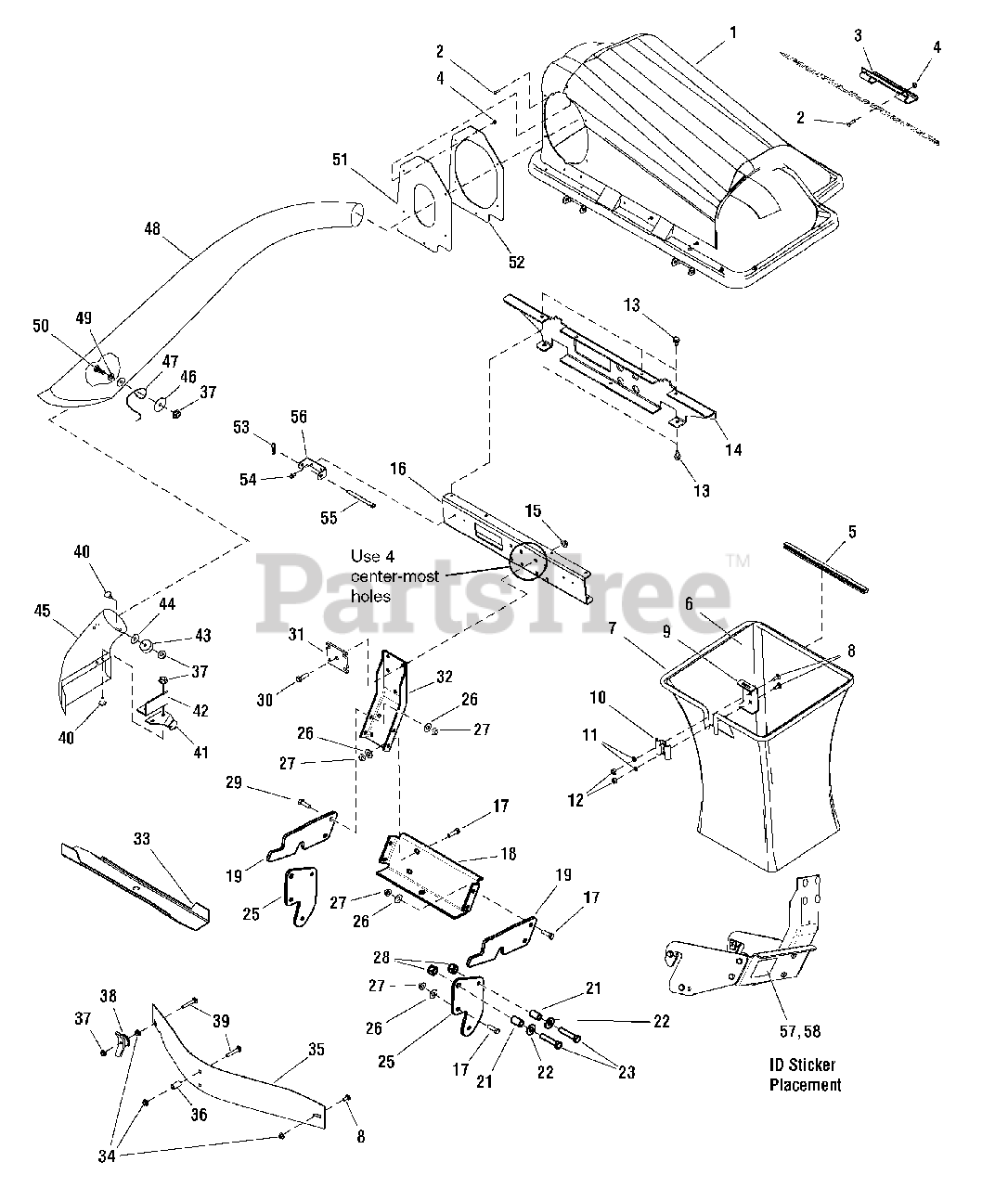

Twin Catcher Assembly Parts Diagram

  • Title

1

Simplicity 1733564SM

COVER ASSEMBLY, Twin Catcher

$353.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960404SM

SCREW, Truss Head Phillips, 10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

3

Simplicity 054537MA

HANDLE, Plastic

$18.99

$

Usually ships in 2-12 days

0

4

Simplicity 1933896SM

NUT, Hex Lock w/Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

5

Simplicity 1675707SM

CLIP, Tube Grass Bag

$6.49

$

In Stock, only 3 left!

0

6

Simplicity 1703764SM

BAG, Grass White Poly

$96.99

$

In Stock, Qty 12

0

7

Simplicity 1733491SM

HOOP, Twin

$146.99

$

In Stock, only 2 left!

0

8

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

Note: (Qty. of 1 included in Ref. No 57)

$3.49

$

In Stock, Qty 12

0

9

Simplicity 1703807ASM

HANGER, Grass Bag

$21.99

$

In Stock, only 1 left!

0

10

Simplicity 1672023ASM

CLAMP, Grass Bag Plain

$11.99

$

Usually ships in 2-12 days

0

11

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1733613ASM

BRACKET, Tab Cross Support Twin

$96.99

$

Usually ships in 2-12 days

0

15

Simplicity 1928352SM

NUT, Hex Whiz Lock Flange
(Superseded to 703793)

Note: (Included in Ref. No 59)

$4.49

$

In Stock, only 3 left!

0

16

Simplicity 1734228ASM

CHANNEL, Cross Support Twin

$70.99

$

Usually ships in 2-12 days

0

17

Simplicity 1921210SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703407)

Note: (Qty. of 2 included in Ref. No 59)

$11.99

$

In Stock, Qty 7

0

18

Simplicity 1703744ASM

BRACKET, Lower

$

$

Not available

19

Simplicity 1723067ASM

SUPPORT, Side Hitch

$67.99

$

In Stock, only 2 left!

0

21

Simplicity 1668662SM

SPACER, 1/2 ID x 1-17/64

Note: (Included in Ref. No 59)

$32.99

$

Usually ships in 2-12 days

0

22

Simplicity 1924361SM

WASHER, 1/2 x 1-1/4 OD
(Superseded to 703451)

Note: (Included in Ref. No 59)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1960462SM

CAPSCREW, Hex Head, 1/2-13 x 2-1/2
(Superseded to 703449)

Note: (Included in Ref. No 59)

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 1723044ASM

PLATE, Side

$

$

Not available

26

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

Note: (Qty. of 2 included in Ref. No 59)

$3.49

$

In Stock, Qty 15

0

27

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

Note: (Qty. of 2 included in Ref. No 59)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1960355SM

NUT, Hex Locking, 1/2-13
(Superseded to 703567)

Note: (Included in Ref. No 59)

$4.49

$

In Stock, only 2 left!

0

29

Simplicity 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, G5
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 1934654SM

CAPSCREW, Hex Head Whiz Lock, 3/8-16 x 1
(Superseded to 704038)

Note: (Included in Ref. No 59)

$5.99

$

In Stock, only 2 left!

0

31

Simplicity 1733948ASM

PLATE, Reinforcement, Upright

Note: (Included in Ref. No 59)

$11.99

$

Usually ships in 2-12 days

0

32

Simplicity 1735055AYP

SUPPORT, Upright

$

$

Not available

33

Simplicity 1704977ASM

BLADE, 22.30"
(Superseded to 1760200YP)

$30.99

$

In Stock, Qty 13

0

34

Simplicity 1927557SM

NUT, Hex Flange Locking, 5/16-18

Note: (Included in Ref. No 59)

$4.99

$

Usually ships in 2-12 days

0

35

Simplicity 1703765ASM

BAFFLE, 38"

$91.99

$

Usually ships in 2-12 days

0

36

Simplicity 1674669SM

SPACER, 3/8 ID x 5/8 OD x 1-5/32

Note: (Included in Ref. No 59)

$11.99

$

In Stock, Qty 20+

0

37

Simplicity 1935048SM

NUT, Hex Flange Two Way Locking, 5/16-18
(Superseded to 704067)

Note: (Qty. of 4 included in Ref. No 59)

$3.99

$

In Stock, Qty 20+

0

38

Simplicity 1679163SM

WINGNUT ASSEMBLY

Note: (Included in Ref. No 59)

$69.99

$

In Stock, only 1 left!

0

39

Simplicity 1960273SM

BOLT, Carriage, 5/16-18 x 2-1/4, G5
(Superseded to 704421)

Note: (Included in Ref. No 59)

$5.49

$

In Stock, only 1 left!

0

40

Simplicity 1960371SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

Note: (Included in Ref. No 59)

$5.49

$

Usually ships in 2-12 days

0

41

Simplicity 1704355ASM

BRACKET, Offset

Note: (Included in Ref. No 59)

$12.99

$

Usually ships in 2-12 days

0

42

Simplicity 1733970ASM

BRACKET, Deflector Prop

Note: (Included in Ref. No 59)

$22.99

$

Usually ships in 2-12 days

0

43

Simplicity 1704341SM

WASHER, 11/32 x 1-3/4 OD

Note: (Included in Ref. No 59)

$42.99

$

Usually ships in 2-12 days

0

44

Simplicity 1920283SM

WASHER, 5/16 x 1-1/2

Note: (Included in Ref. No 59)

$4.99

$

In Stock, Qty 5

0

45

Simplicity 1735054SM

ADAPTER, 38" Mower

$144.99

$

Usually ships in 2-12 days

0

46

Simplicity 1960185SM

WASHER, 5/16 x 2-1/8

$3.99

$

Usually ships in 2-12 days

0

47

Simplicity 1704603SM

LATCH, Tube

$6.49

$

Usually ships in 2-12 days

0

48

Simplicity 1703769SM

TRANSFER TUBE

$301.99

$

Usually ships in 2-12 days

0

49

Simplicity 1919326SM

WASHER, 5/16 x 3/4 OD

$4.49

$

In Stock, Qty 5

0

50

Simplicity 1960122SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$6.99

$

Usually ships in 2-12 days

0

51

Simplicity 1733741SM

SEAL, Cover
(Superseded to 1733741YP)

$29.99

$

Usually ships in 2-12 days

0

52

Simplicity 1732735ASM

FLANGE, Seal

$40.99

$

Usually ships in 2-12 days

0

53

Simplicity 1960074

CLIP, Hairpin, 5/8 Long
(Superseded to 703300)

Note: (Included in Ref. No 59)

$3.99

$

In Stock, Qty 20+

0

54

Simplicity 1925003

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

55

Simplicity 054407ZMA

PIN, Cover Hinge

Note: (Included in Ref. No 59)

$14.99

$

In Stock, only 1 left!

0

56

Simplicity 1733504ASM

PIVOT, Hinge

$22.99

$

Usually ships in 2-12 days

0

57

ID LABEL/SERIAL PLATE

Note: (Not a Serviceable Part)

$

$

Not available

58

OVERLAY, Mylar

Note: (Not a Serviceable Part)

$

$

Not available

59

Simplicity 1734745YP

HARDWARE BAG

Note: (Not Shown. Includes Ref. Nos. 8, 15, 17, 21, 22, 23, 26, 27, 28, 30, 31, 34, 36, 37, 38, 39, 40, 41, 42, 43, 44, 53, 55)

$

$

Not available
