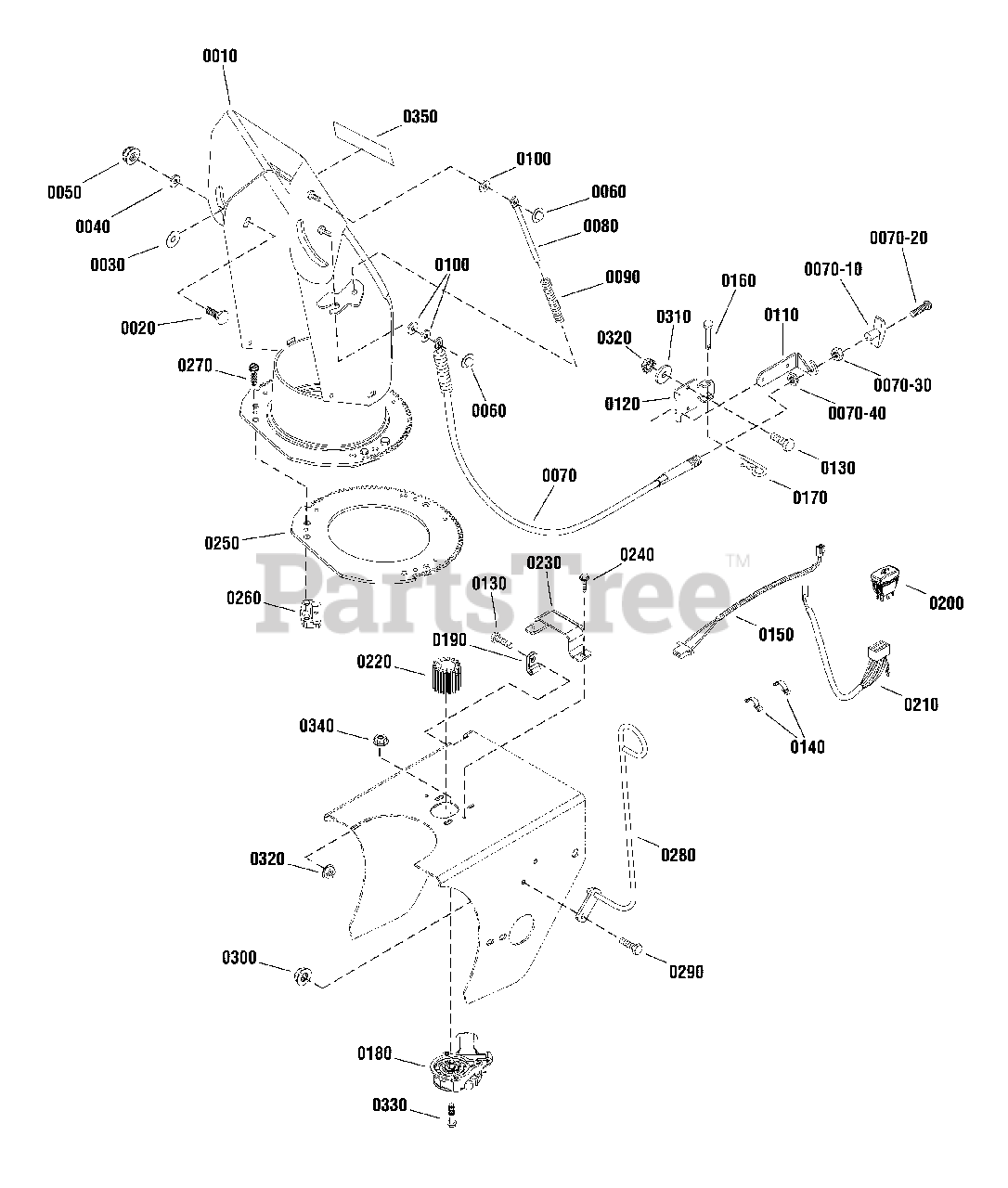

1695297 - Simplicity 42" Snow Thrower Attachment Spout Group Parts Diagram

42" Snow Thrower Attachment

Spout Group Parts Diagram

  • Title

0010

Simplicity 1736481AYP

CHUTE & DEFLECTOR ASSEMBLY

$341.99

$

Usually ships in 2-12 days

0

0020

Simplicity 703185

CARRIAGE BOLT, 5/16-18 x 3/4

$3.49

$

In Stock, Qty 12

0

0030

Simplicity 2860210SM

WASHER, Nylon, 5/16

$4.49

$

In Stock, only 2 left!

0

0040

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

0050

Simplicity 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0060

Simplicity 704066

NUT, Push Capped, 1/4

$4.99

$

In Stock, Qty 14

0

0070

Simplicity 1717482SM

CABLE & KNOB ASSEMBLY

Note: (Includes items 0070 thru 0070-40)

$162.99

$

Usually ships in 2-12 days

0

0070-10

Simplicity 1715799SM

HANDLE

$

$

Not available

0070-20

Simplicity 1930547SM

SCREW, Hex, 10-24

$4.49

$

Usually ships in 2-12 days

0

0070-30

Simplicity 1715801SM

NUT, Cap
(Superseded to 1718771SM)

$186.99

$

In Stock, only 1 left!

0

0070-40

Simplicity 703904

NUT, Hex Jam, 5/8-18

$4.99

$

In Stock, Qty 18

0

0080

Simplicity 1611945SM

ROD, Spring Guide

$13.99

$

In Stock, only 1 left!

0

0090

Simplicity 1611939SM

SPRING, Compression

$10.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1702219SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

0110

Simplicity 1726411ASM

BRACKET, Chute Cable

$

$

Not available

0120

Simplicity 1721590ASM

BRACKET, Cable Mounting

$27.99

$

In Stock, Qty 5

0

0130

Simplicity 703819

CAPSCREW, Hex Head, 1/4-20 x 7/8

$4.49

$

Usually ships in 2-12 days

0

0140

Simplicity 703176

CLIP, Wire

$3.49

$

Usually ships in 2-12 days

0

0150

Simplicity 1733488SM

HARNESS ASSEMBLY, Chute Rotator

$48.99

$

Usually ships in 2-12 days

0

0160

Simplicity 703063

PIN, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0170

Simplicity 704039

PIN, Cotter

$4.49

$

In Stock, Qty 9

0

0180

Simplicity 1728965SM

MOTOR, Spout Rotator

$176.99

$

In Stock, Qty 8

0

0190

Simplicity 1708008SM

CLAMP, Wire

$4.49

$

Usually ships in 2-12 days

0

0200

Simplicity 1724210SM

SWITCH, Rocker, 6 Pin

Note: (Used on non-electric height of cut models)

$54.99

$

In Stock, only 1 left!

0

0210

Simplicity 1734397YP

HARNESS ASSEMBLY, Chute Rotator

Note: (Used on non-electric height of cut models)

$29.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1728967SM

PINION, 16 Teeth

$17.99

$

In Stock, only 4 left!

0

0230

Simplicity 1734413AYP

COVER, Pinion

$28.99

$

Usually ships in 2-12 days

0

0240

Simplicity 704130

SCREW, Hex Head, Taptite, 1/4-20 x 1/2

$3.99

$

In Stock, only 3 left!

0

0250

Simplicity 1717477ASM

GEAR, Chute

$50.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1666613SM

HOLD DOWN

$3.49

$

In Stock, Qty 20+

0

0270

Simplicity 703062

SCREW, Hex Washer Head,10-14

$4.49

$

In Stock, only 2 left!

0

0280

Simplicity 1717591ASM

ROD & BAR ASSEMBLY

$27.99

$

In Stock, only 1 left!

0

0290

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 X 1

$4.99

$

Usually ships in 2-12 days

0

0300

Simplicity 703222

NUT, Hex Kep, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0310

Simplicity 703136

WASHER, Flat, 1/4

$3.99

$

In Stock, only 1 left!

0

0320

Simplicity 703061

NUT, Hex Keps. Conical, 1/4-20

$3.49

$

In Stock, Qty 11

0

0330

Simplicity 2860604SM

SCREW, Hex Washer Head, #10 X 1 1/4

$4.49

$

Usually ships in 2-12 days

0

0340

Simplicity 703917

NUT, Hex Flange, Whiz Lock, #10-24

$3.49

$

In Stock, Qty 20+

0

0350

Simplicity 1733600SM

Decal, Hinge

$11.99

$

Usually ships in 2-12 days

0
