1695213 - Simplicity 50" Mower Deck 44" & 50" Mower Deck - Clutch & Support Group Parts Diagram

50" Mower Deck

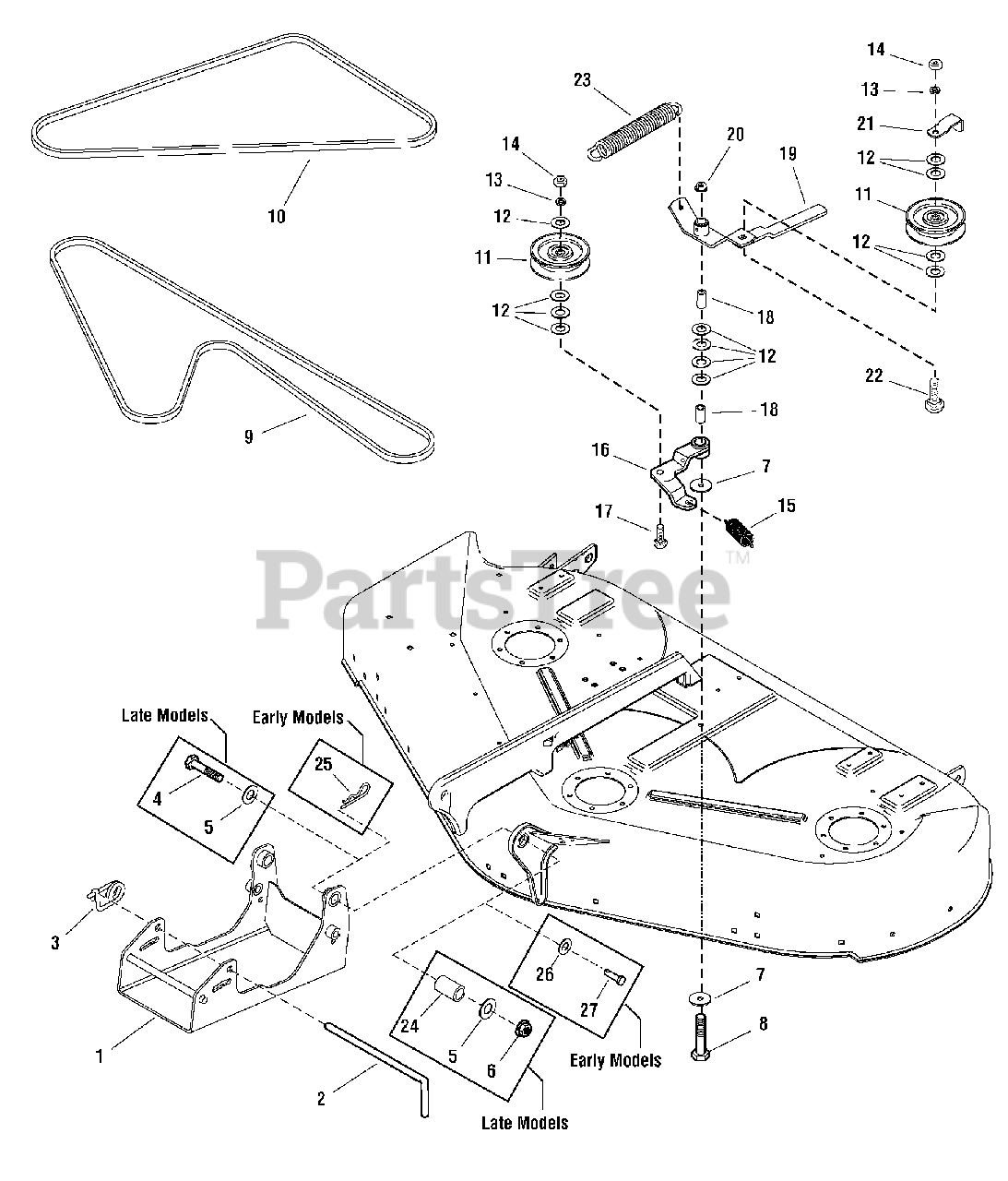

44" & 50" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

1

Simplicity 1737046ASM

HITCH & RODS ASSEMBLY, 4WD

$168.99

$

Usually ships in 2-12 days

0

2

Simplicity 1731414SM

ROD, Latch

$14.99

$

In Stock, only 1 left!

0

3

Simplicity 2176012SM

SPRING PIN
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1923701SM

CAPSCREW, 3/8-16 x 2
(Superseded to 703589)

Note: (Used on Late Models)

$4.49

$

Usually ships in 2-12 days

0

5

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

Note: (Used on Late Models)

$4.99

$

In Stock, Qty 11

0

6

Simplicity 1960687SM

NUT, Hex Flange 3/8-16
(Superseded to 703158)

Note: (Used on Late Models)

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

8

Simplicity 1923938SM

CAPSCREW, Hex Head 3/8-15 x 3-1/2 G5
(Superseded to 703182)

$6.99

$

Usually ships in 2-12 days

0

9

Simplicity 1703836SM

V-BELT, Arbor Drive

Note: (Used only on 50" Mower)

$45.99

$

In Stock, Qty 20+

0

9

Simplicity 1721532SM

V-BELT, Arbor Drive

Note: (Used only on 44" Mower)

$58.99

$

In Stock, Qty 20+

0

10

Simplicity 1734114SM

V-BELT, Mower Drive 70.1

Note: (Used only on 50" Mower)

$49.99

$

In Stock, only 2 left!

0

10

Simplicity 1734115SM

V-BELT, Mower Drive 62.1

Note: (Used only on 44" Mower)

$49.99

$

Usually ships in 2-12 days

0

11

Simplicity 1724387SM

PULLEY, Idler

$35.99

$

In Stock, Qty 20+

0

12

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1916965SM

LOCKWASHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

14

Simplicity 1916950SM

NUT, Hex 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1656936SM

SPRING, Extension

$9.99

$

In Stock, Qty 20+

0

16

Simplicity 1718561SM

LEVER ASSEMBLY, Idler w/Bushing & Fitting

$50.99

$

Usually ships in 2-12 days

0

17

Simplicity 1931352SM

BOLT, Carriage, 3/8-16 x 1-1/2, G5

$4.49

$

In Stock, only 2 left!

0

18

Simplicity 1674669SM

SPACER

$11.99

$

In Stock, Qty 20+

0

19

Simplicity 1704658SM

LEVER ASSEMBLY, Idler w/Bushings & Fitting

$48.99

$

In Stock, only 2 left!

0

20

Simplicity 1960339SM

NUT, Hex Flange 3/8-16 Machine Lock

$

$

Not available

21

Simplicity 1677135ASM

GUARD, Belt

$12.99

$

In Stock, Qty 8

0

22

Simplicity 1960315SM

BOLT, Carriage, 3/8-16 x 2, G5

$6.49

$

In Stock, only 1 left!

0

23

Simplicity 1715435SM

SPRING, Extension

$9.49

$

In Stock, Qty 20+

0

24

Simplicity 1737061SM

SPACER

Note: (Used on Late Models)

$12.99

$

Usually ships in 2-12 days

0

25

Simplicity 1960033SM

HAIRPIN

Note: (Used on Early Models)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 2960202SM

WASHER, Flat, 3/4

Note: (Used on Early Models)

$

$

Not available

27

Simplicity 1733830SM

PIN, Clevis

Note: (Used on Early Models)

$7.99

$

In Stock, only 2 left!

0
