1695196 - Simplicity Hitch, Sub Frame, 42" Snow Thrower Drive Group - Sub Frame Parts Diagram

Hitch, Sub Frame, 42" Snow Thrower

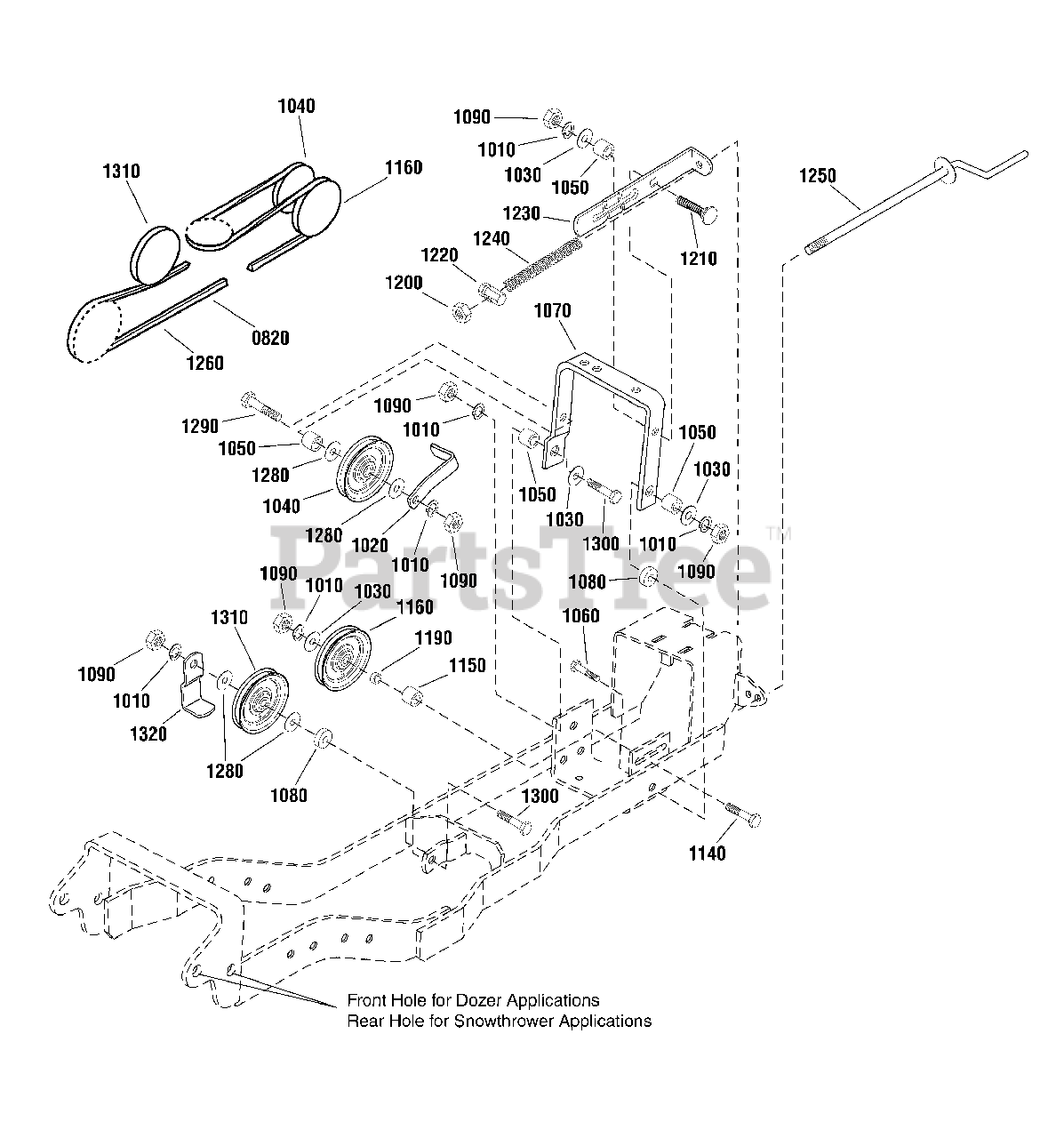

Drive Group - Sub Frame Parts Diagram

  • Title

0820

Simplicity 1703372

V-BELT, Two-Stage Blower
(Superseded to 1703372SM)

$108.99

$

In Stock, only 2 left!

0

1010

Simplicity 1916965

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

1020

Simplicity 2162115A

BELT GUIDE
(Superseded to 2162115ASM)

$12.99

$

Usually ships in 2-12 days

0

1030

Simplicity 1924940

WASHER, Plain 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

1040

Simplicity 2171247

PULLEY 5 x 3/8
(Superseded to 2171247SM)

$51.99

$

In Stock, Qty 20+

0

1050

Simplicity 2158227

SPACER .39 ID
(Superseded to 2158227SM)

$32.99

$

In Stock, only 1 left!

0

1060

Simplicity 1923701

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

1070

Simplicity 1722963A

PIVOT BRACKET
(Superseded to 1722963ASM)

$21.99

$

Usually ships in 2-12 days

0

1080

Simplicity 1667811

SPACER .39 ID
(Superseded to 1667811SM)

$3.49

$

In Stock, Qty 20+

0

1090

Simplicity 1916950

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

1140

Simplicity 1960244

CAPSCREW, Hex Head, Whizlock, 3/8-16 x 2-3/4
(Superseded to 704037)

$5.99

$

Usually ships in 2-12 days

0

1150

Simplicity 1667812

SPACER .39 ID
(Superseded to 1667812SM)

$5.99

$

In Stock, Qty 16

0

1160

Simplicity 1666287A

PULLEY ASSEMBLY
(Superseded to 1666287ASM)

$91.99

$

Usually ships in 2-12 days

0

1190

Simplicity 1666294

SPACER .385 ID
(Superseded to 1666294SM)

$4.99

$

In Stock, Qty 20+

0

1200

Simplicity 1930645

NUT, Hex Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

1210

Simplicity 1960268

CARRIAGE BOLT, 3/8-16 x 1-1/4
(Superseded to 1960268SM)

$4.49

$

In Stock, Qty 9

0

1220

Simplicity 1704743

TRUNNION
(Superseded to 1704743SM)

$37.99

$

Usually ships in 2-12 days

0

1230

Simplicity 1722972A

GUIDE ASSEMBLY, Spring
(Superseded to 1722972ASM)

$79.99

$

Usually ships in 2-12 days

0

1240

Simplicity 1668282

SPRING
(Superseded to 1668282SM)

$22.99

$

Usually ships in 2-12 days

0

1250

Simplicity 1723681

ROD ASSEMBLY
(Superseded to 1723681SM)

$92.99

$

Usually ships in 2-12 days

0

1260

Simplicity 1703371

V-BELT, Single-Stage Blower
(Superseded to 1703371SM)

$82.99

$

In Stock, Qty 10

0

1280

Simplicity 1922755

WASHER, 3/8 x 1 x 1/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

1290

Simplicity 1922130

CAPSCREW, Hex Head, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

1300

Simplicity 1921971

CAPSCREW, Hex Head, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

1310

Simplicity 1724387

PULLEY, IDLER
(Superseded to 1724387SM)

$35.99

$

In Stock, Qty 20+

0

1320

Simplicity 1677135A

BELT GUIDE
(Superseded to 1677135ASM)

$12.99

$

In Stock, Qty 8

0
