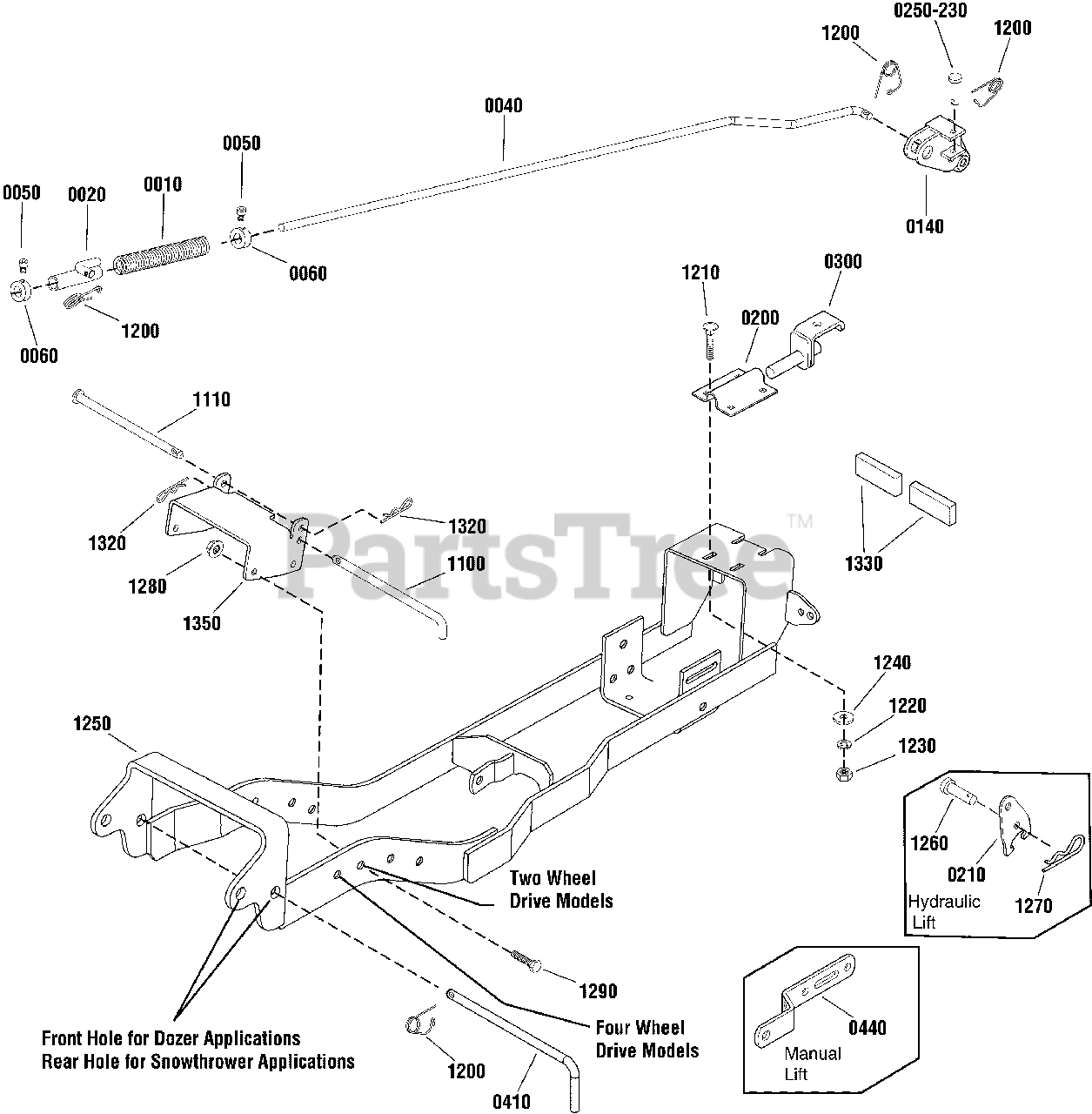

1695195 - Simplicity Hitch, Sub Frame, 42" Dozer Blade Hitch Group Parts Diagram

Hitch, Sub Frame, 42" Dozer Blade

Hitch Group Parts Diagram

  • Title

0010

Simplicity 2171011

SPRING, Compression
(Superseded to 2171011SM)

$75.99

$

In Stock, only 1 left!

0

0020

Simplicity 1723115

TUBE & PIN ASSEMBLY, Guide
(Superseded to 1723115SM)

$54.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1722946

ROD, Rear Lift
(Superseded to 1722946SM)

$108.99

$

In Stock, only 1 left!

0

0050

Simplicity 1928721

SCREW, Set, Square Head Cup Point 5/16-18 x 1/2 G8
(Superseded to 1928721SM)

$4.99

$

In Stock, only 2 left!

0

0060

Simplicity 1729258

COLLAR, Set
(Superseded to 5010477YP)

$

$

Not available

0140

Simplicity 1724025A

LEVER ASSEMBLY, Lift Snow Attach
(Superseded to 1724025ASM)

$155.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1653768A

CLAMP, Wheel Support for 3/4 Shaft
(Superseded to 1653768ASM)

$12.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1722469

LOCK DOWN, Hydraulic
(Superseded to 1722469SM)

$16.99

$

Usually ships in 2-12 days

0

0250-230

Simplicity 2105249

PIN, Round Head Drilled 3/8 x 2-3/8
(Superseded to 2105249SM)

$16.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1723292A

SHAFT & HOOK ASSEMBLY
(Superseded to 1723292ASM)

$

$

Not available

0410

Simplicity 1723309

ROD, Hitch
(Superseded to 1723309SM)

$38.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1723795A

BAR, Lift, 8-15/16 Long
(Superseded to 1723795ASM)

$16.99

$

Usually ships in 2-12 days

0

1100

Simplicity 1733812

ROD, Hitch
(Superseded to 1733812SM)

$24.99

$

Usually ships in 2-12 days

0

1110

Simplicity 1734050

ROD, Mower Hitch
(Superseded to 1734050SM)

$35.99

$

Usually ships in 2-12 days

0

1200

Simplicity 2176012

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

1210

Simplicity 1931335

CARRIAGE BOLT, 5/16-18 x 1 G5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

1220

Simplicity 1917356

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

1230

Simplicity 1917372

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

1240

Simplicity 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

1250

Simplicity 1733779A

PUSH BAR ASSEMBLY, Hitch Sub Frame

$

$

Not available

1260

Simplicity 1722819

PIN, Flat Head Drilled
(Superseded to 1722819SM)

$6.99

$

In Stock, only 2 left!

0

1270

Simplicity 1960033

CLIP, Hair Pin 1/8 Diameter Spring
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 20+

0

1280

Simplicity 1928352

NUT, Hex Flange 3/8-16 Whiz Lock
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

1290

Simplicity 1921210

CAPSCREW, Hex Head 3/8-16 x 1 G5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

1320

Simplicity 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

1330

Simplicity 1701600

REFLECTOR
(Superseded to 1701600SM)

$11.99

$

Usually ships in 2-12 days

0

1350

Simplicity 1733814A

LATCH, Push Bar
(Superseded to 1733814ASM)

$67.99

$

Usually ships in 2-12 days

0
