1695177 - Simplicity 54" Mower Deck 54" Mower Deck - Electric Height Adjustment & Roller Bar Group Parts Diagram

54" Mower Deck

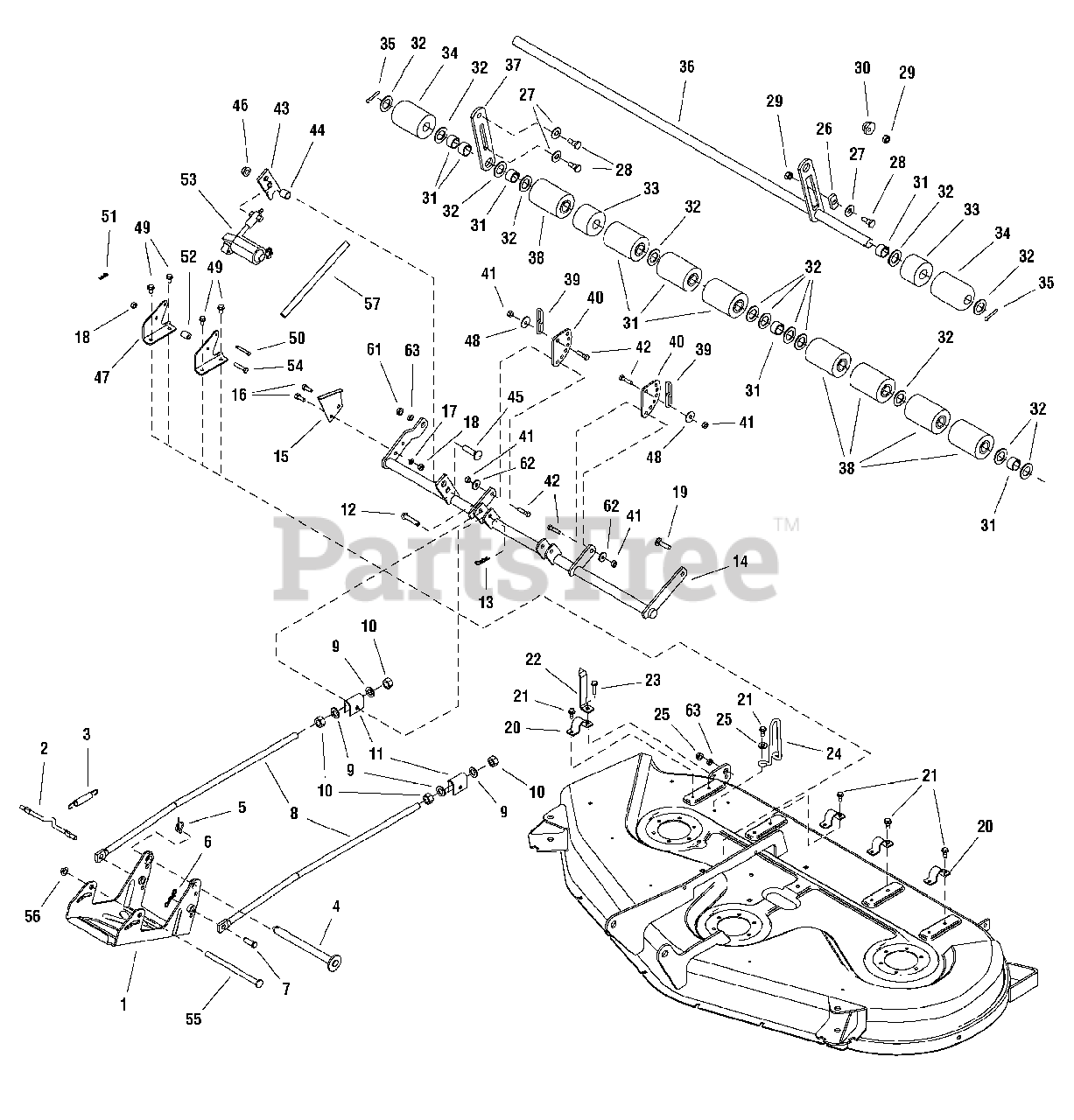

54" Mower Deck - Electric Height Adjustment & Roller Bar Group Parts Diagram

  • Title

1

Simplicity 1733229ASM

HITCH & ROD ASSEMBLY, 54"

$222.99

$

Usually ships in 2-12 days

0

2

Simplicity 1715759SM

ROD

$7.99

$

In Stock, Qty 11

0

3

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 20+

0

4

Simplicity 1734011SM

PIN & WASHER ASSEMBLY

$67.99

$

In Stock, only 3 left!

0

5

Simplicity 1709189SM

PIN, Klink

$6.99

$

Usually ships in 2-12 days

0

6

Simplicity 1722320SM

PIN, Cotter Locking

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1960116SM

PIN, Yoke
(Superseded to 5025479YP)

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 1722995SM

ROD, Adjusting

$41.99

$

Usually ships in 2-12 days

0

9

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1915726SM

NUT, Hex 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

11

Simplicity 1706645ASM

TRUNNION
(Superseded to 84003858)

$8.49

$

Usually ships in 2-12 days

0

12

Simplicity 2118053SM

PIN, Round Head Drilled 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

13

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 1733523ASM

SHAFT ASSEMBLY, Rocker 54"

$262.99

$

Usually ships in 2-12 days

0

15

Simplicity 1704116ASM

BRACKET, Height of Cut
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

16

Simplicity 1923325SM

CAPSCREW, Hex Head 5/16-18 x 7/8 G5
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

17

Simplicity 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1917372SM

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2 G5

$4.49

$

In Stock, only 3 left!

0

20

Simplicity 1720147ASM

STRAP, Rod
(Superseded to 1720147BZYP)

$9.99

$

Usually ships in 2-12 days

0

21

Simplicity 1960541SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 1720643ASM

INDICATOR, Height of Cut

$19.99

$

In Stock, only 2 left!

0

23

Simplicity 1931202SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

24

Simplicity 1719929SM

STOP, Up

$16.99

$

Usually ships in 2-12 days

0

25

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, only 3 left!

0

27

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

29

Simplicity 2860681SM

NUT, Hex Toplock Spiralock Flange 3/8-16

$4.49

$

In Stock, Qty 7

0

30

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 16

0

31

Simplicity 1701873SM

SPACER

$6.49

$

In Stock, Qty 5

0

32

Simplicity 2860626SM

WASHER, 1

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1720159SM

ROLLER

$35.99

$

In Stock, only 3 left!

0

34

Simplicity 1678043SM

ROLLER

$45.99

$

In Stock, Qty 20+

0

35

Simplicity 1918459SM

PIN, Cotter
(Superseded to 703983)

$4.49

$

In Stock, Qty 13

0

36

Simplicity 1723008ASM

SHAFT & BAR ASSEMBLY

$231.99

$

Usually ships in 2-12 days

0

37

Simplicity 1723009ASM

BAR, Roller

$19.99

$

Usually ships in 2-12 days

0

38

Simplicity 1678042SM

ROLLER W/BUSHINGS
(Superseded to 1678043SM)

$45.99

$

In Stock, Qty 20+

0

39

Simplicity 1731383ASM

CHAIN, Link

$6.49

$

In Stock, only 2 left!

0

40

Simplicity 1734126ASM

BRACKET, Roller Adjust

$19.99

$

In Stock, only 2 left!

0

41

Simplicity 1919438SM

NUT, Hex Lock ESNA Light 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 1921977SM

CAPSCREW, Hex Head 5/16-18 x 1-1/4 G5
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

43

Simplicity 1733520ASM

ARM, Rocker

$10.99

$

Usually ships in 2-12 days

0

44

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

45

Simplicity 1960706SM

CARRIAGE BOLT, 1/2-13 x 2 G5

$5.99

$

Usually ships in 2-12 days

0

46

Simplicity 1960689SM

NUT, Hex Toplock Flange 1/2-13

$3.49

$

Usually ships in 2-12 days

0

47

Simplicity 1733831ASM

BRACKET, Mounting

$16.99

$

Usually ships in 2-12 days

0

48

Simplicity 1960044SM

WASHER, 5/16

$4.49

$

In Stock, only 3 left!

0

49

Simplicity 1930601SM

SCREW, Hex Washer Head Taptite 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

50

Simplicity 1668344SM

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

51

Simplicity 1960221SM

CLIP, Hairpin
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

52

Simplicity 1673796SM

SPACER, Powdered Metal

$24.99

$

Usually ships in 2-12 days

0

53

Simplicity 1733513SM

MOTOR, Electric Mini Actuator
(Superseded to 7600123YP)

$159.99

$

In Stock, only 2 left!

0

54

Simplicity 1921221SM

CAPSCREW, Hex Head 5/16-18 x 1-1/2 G5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

55

Simplicity 1713578SM

ROD

$15.99

$

In Stock, only 1 left!

0

56

Simplicity 1960519SM

NUT, Push
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

57

Simplicity 1733895SM

TUBE, Flexible

$3.49

$

Usually ships in 2-12 days

0

61

Simplicity 1960339SM

NUT, Hex Flange 3/8-16 Machine Lock

$

$

Not available

62

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

63

Simplicity 1663752SM

SPACER

$5.99

$

In Stock, only 2 left!

0
