1695168 - Simplicity Clean Sweep Twin Grass Catcher for 38" Mower Twin Catcher Assembly Parts Diagram

Clean Sweep Twin Grass Catcher for 38" Mower

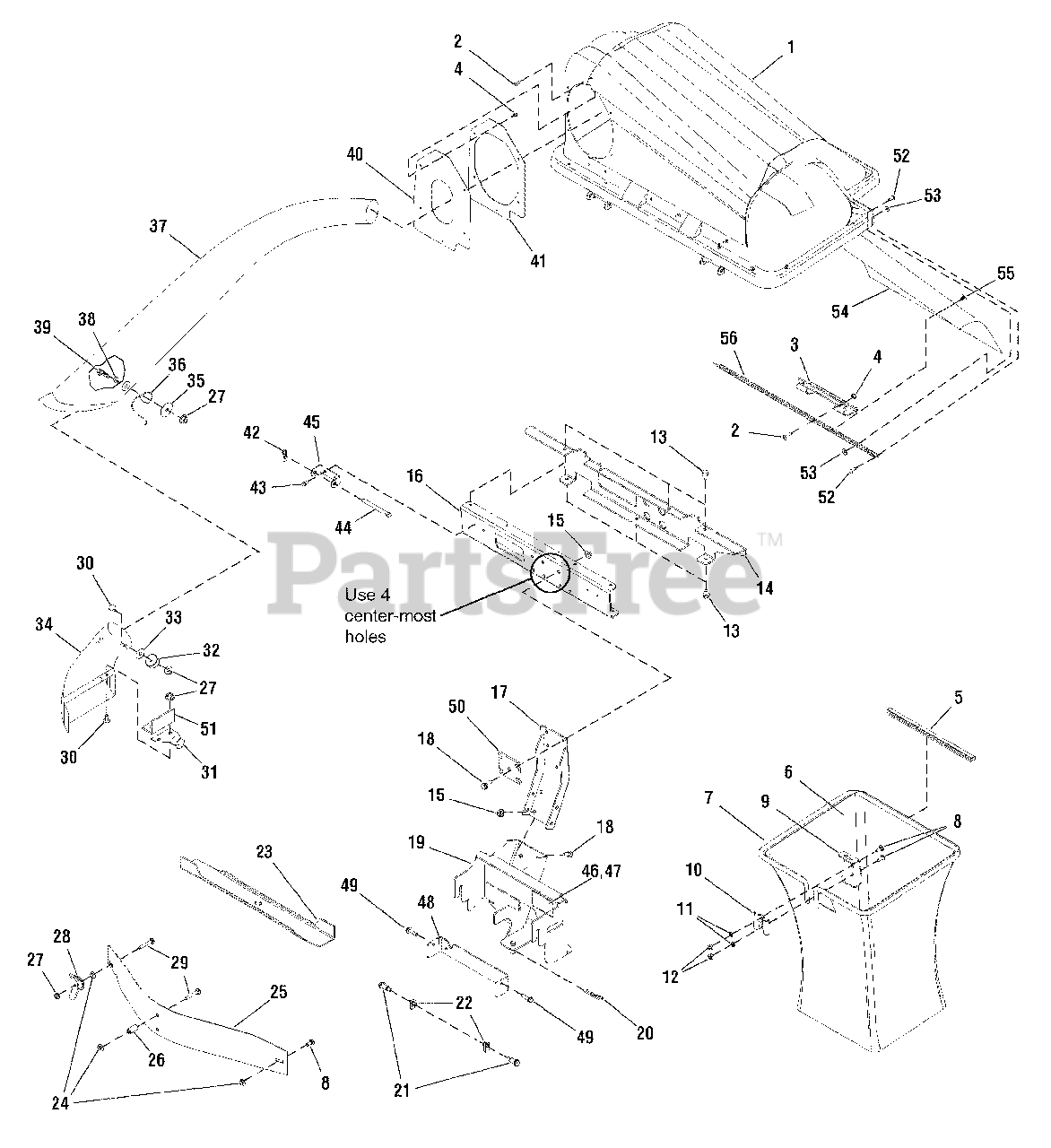

Twin Catcher Assembly Parts Diagram

  • Title

1

Simplicity 1733564SM

COVER ASSEMBLY, Twin Catcher

$353.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960404SM

SCREW, Truss Head Phillips, 10 - 24 x 3/4

$3.99

$

In Stock, only 4 left!

0

3

Simplicity 054537MA

HANDLE, Plastic

$18.99

$

In Stock, only 3 left!

0

4

Simplicity 1933896SM

NUT, Hex Lock w/Nylon Insert, 10 - 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

5

Simplicity 1675707SM

CLIP, Tube Grass Bag

$6.49

$

In Stock, only 3 left!

0

6

Simplicity 1703764SM

BAG, Grass White Poly

$96.99

$

In Stock, Qty 12

0

7

Simplicity 1733491SM

HOOP, Twin

$146.99

$

In Stock, only 2 left!

0

8

Simplicity 1931333SM

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703185)

Note: (Qty. of 1 included in Ref. No 57)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1703807ASM

HANGER, Grass Bag

$21.99

$

In Stock, only 1 left!

0

10

Simplicity 1672023ASM

CLAMP, Grass Bag Plain

$11.99

$

Usually ships in 2-12 days

0

11

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

12

Simplicity 1917372SM

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite, 5/16 - 18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1733613ASM

BRACKET, Tab Cross Support Twin

$

$

Not available

15

Simplicity 1928352SM

NUT, Hex Whiz Lock Flange
(Superseded to 5025128SM)

Note: (Included in Ref. No 57)

$3.49

$

In Stock, only 2 left!

0

16

Simplicity 1734228ASM

CHANNEL, Cross Support Twin

$70.99

$

Usually ships in 2-12 days

0

17

Simplicity 1707526ASM

SUPPORT, Upright

$82.99

$

Usually ships in 2-12 days

0

18

Simplicity 1934654SM

SCREW, Hex Whiz Lock Flange
(Superseded to 704038)

Note: (Included in Ref. No 57)

$5.99

$

In Stock, only 2 left!

0

19

Simplicity 1733627SM

SUPPORT ASSEMBLY, Regent Catcher
(Superseded to 1733627ASM)

$239.99

$

Usually ships in 2-12 days

0

20

Simplicity 1960033SM

CLIP, Hair Pin

Note: (Included in Ref. No 57)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1728976SM

BOLT, Shoulder, 5/16 - 18

Note: (Included in Ref. No 57)

$6.49

$

In Stock, only 2 left!

0

22

Simplicity 1960717SM

NUT, Speed, 5/16 - 18
(Superseded to 5022308SM)

Note: (Included in Ref. No 57)

$5.99

$

In Stock, only 2 left!

0

23

Simplicity 1704977SM

BLADE, Mower 22.3" Hi-Lift
(Superseded to 1760200YP)

$30.99

$

In Stock, Qty 13

0

24

Simplicity 1927557SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703330)

Note: (Included in Ref. No 57)

$4.99

$

In Stock, Qty 13

0

25

Simplicity 1703765ASM

BAFFLE, 38"

$91.99

$

Usually ships in 2-12 days

0

26

Simplicity 1674669SM

SPACER

Note: (Included in Ref. No 57)

$11.99

$

In Stock, Qty 20+

0

27

Simplicity 1935048SM

NUT, Hex Two-Way Lock Flange, 5/16 - 18
(Superseded to 704067)

Note: (Qty. of 4 included in Ref. No 57)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1679163SM

WINGNUT ASSEMBLY

Note: (Included in Ref. No 57)

$69.99

$

In Stock, only 1 left!

0

29

Simplicity 1931339SM

BOLT, Carriage, 5/16 - 18 x 2
(Superseded to 704035)

Note: (Included in Ref. No 57)

$4.49

$

In Stock, only 1 left!

0

30

Simplicity 1960371SM

SCREW, Hex Head, 5/16 - 18 x 3/4

Note: (Included in Ref. No 57)

$5.49

$

Usually ships in 2-12 days

0

31

Simplicity 1704355ASM

BRACKET, Offset

Note: (Included in Ref. No 57)

$12.99

$

Usually ships in 2-12 days

0

32

Simplicity 1704341SM

WASHER, Special

Note: (Included in Ref. No 57)

$42.99

$

Usually ships in 2-12 days

0

33

Simplicity 1920283SM

WASHER

Note: (Included in Ref. No 57)

$4.99

$

In Stock, Qty 5

0

34

Simplicity 1732561SM

ADAPTER, 38"

$231.99

$

Usually ships in 2-12 days

0

35

Simplicity 1960185SM

WASHER, 5/16

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 1704603SM

LATCH, Tube

$

$

Not available

37

Simplicity 1703769SM

TUBE, Transfer

$301.99

$

Usually ships in 2-12 days

0

38

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

39

Simplicity 1960122SM

SCREW, Hex Head, 5/16 - 18 x 3/4

$6.99

$

Usually ships in 2-12 days

0

40

Simplicity 1733741SM

SEAL, Cover
(Superseded to 1733741YP)

$29.99

$

Usually ships in 2-12 days

0

41

Simplicity 1732735ASM

FLANGE, Seal

$40.99

$

Usually ships in 2-12 days

0

42

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

Note: (Included in Ref. No 57)

$3.99

$

In Stock, Qty 20+

0

43

Simplicity 1925003SM

SCREW, Hex Washer Head Taptite, 1/4 - 20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 4 left!

0

44

Simplicity 054407ZMA

PIN, Cover Hinge

Note: (Included in Ref. No 57)

$14.99

$

In Stock, only 1 left!

0

45

Simplicity 1733504ASM

PIVOT, Hinge

$22.99

$

Usually ships in 2-12 days

0

46

ID LABEL/SERIAL PLATE

Note: (Not Serviceable)

$

$

Not available

47

OVERLAY, Mylar

Note: (Not Serviceable)

$

$

Not available

48

Simplicity 1733903ASM

PLATE, Reinforcement

$32.99

$

Usually ships in 2-12 days

0

49

Simplicity 1930595SM

SCREW, Hex Whiz Lock Flange, 5/16 - 18 x 1-1/4

Note: (Included in Ref. No 57)

$3.99

$

In Stock, Qty 5

0

50

Simplicity 1733948ASM

PLATE, Reinforcement, Upright

Note: (Included in Ref. No 57)

$11.99

$

Usually ships in 2-12 days

0

51

Simplicity 1733970ASM

BRACKET, Deflector Prop

Note: (Included in Ref. No 57)

$22.99

$

Usually ships in 2-12 days

0

52

Simplicity 1673320SM

RIVET, Pop, 3/16

$4.49

$

In Stock, Qty 8

0

53

Simplicity 1910531SM

WASHER, Rivet, 3/16

$3.99

$

Usually ships in 2-12 days

0

54

Simplicity 1732488SM

SCREEN, Twin Cover

$68.99

$

Usually ships in 2-12 days

0

55

Simplicity 1732490SM

FASTENERS, Push, 1/4 x 1/2

$58.99

$

Usually ships in 2-12 days

0

56

Simplicity 1734384SM

SCREEN SUPPORT, Twin

$66.99

$

Usually ships in 2-12 days

0

57

Simplicity 1660950SM

HARDWARE BAG

Note: (Not Shown. Includes Ref. Nos. 8, 15, 18, 20, 21, 22, 24, 26, 27, 28, 29, 30, 31, 32, 33, 42, 44, 49, 50 & 51)

$142.99

$

Usually ships in 2-12 days

0

--

Simplicity 1733729

INSTRUCTION MANUAL

$

$

Not available
