1695140 - Snapper 44" Mower Deck 44" & 50" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

44" Mower Deck

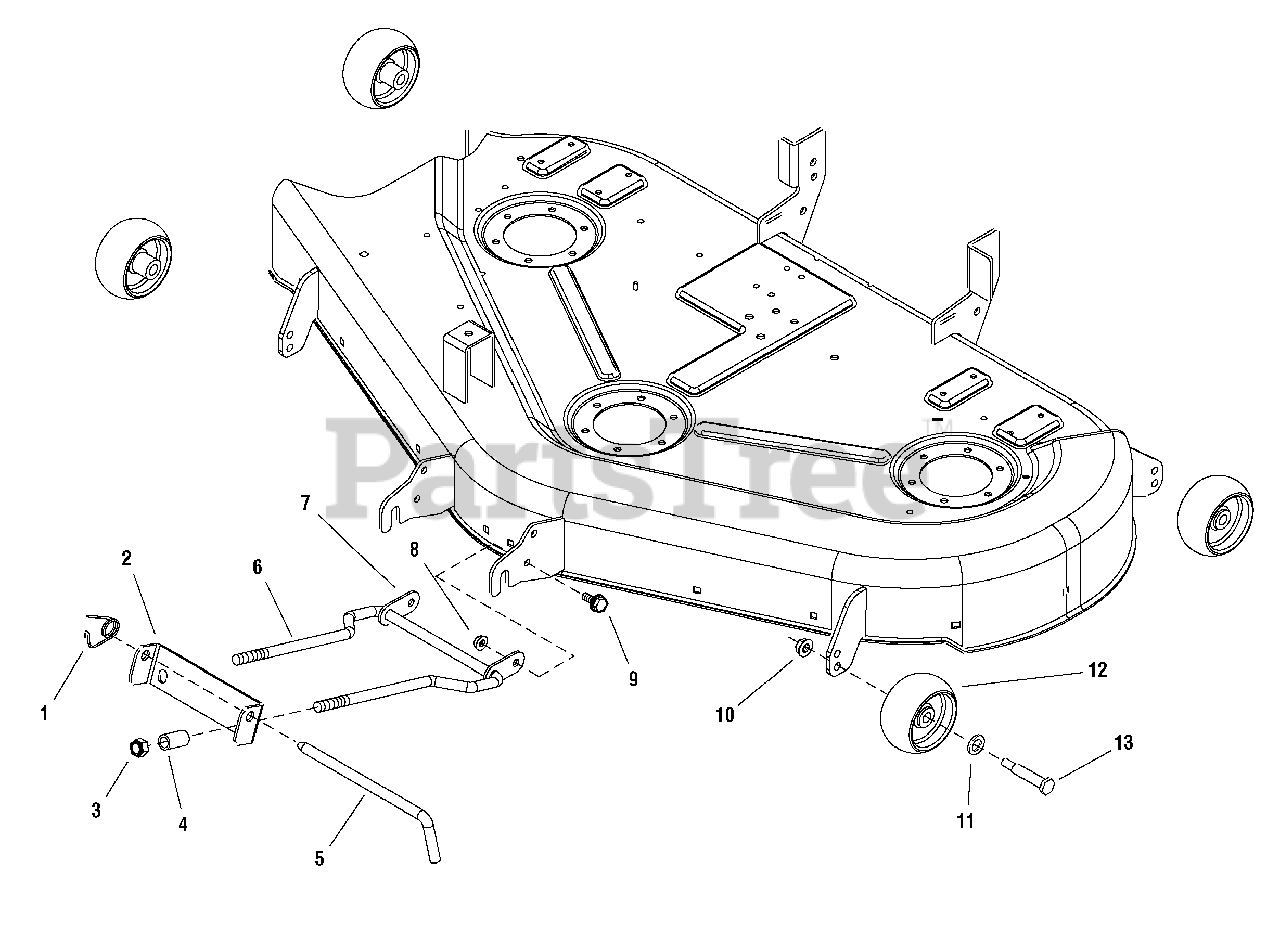

44" & 50" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

  • Title
1

Snapper 2176012SM

CLIP, Pin, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 1730221ASM

HANGER, Front Mower

$12.99

$

In Stock, only 2 left!

0

3

Snapper 1960379SM

NUT, Hex Lock, 1/2-13

$4.99

$

In Stock, Qty 18

0

4

Snapper 1679166SM

SPACER, 1/2 x 7/8 x 1 3/16

$7.49

$

In Stock, only 2 left!

0

5

Snapper 1731414SM

PIN, Hitch

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 1730097SM

ROD, Bail Mowers Yellow

$43.99

$

Usually ships in 2-12 days

0

7

Snapper 1731899ASM

PLATE, PIVOT Lock 10 GA

$

$

Not available

8

Snapper 1931277SM

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 1930591SM

CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

10

Snapper 1960687SM

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

12

Snapper 1714760SM

WHEEL, Gauge

$6.49

$

In Stock, Qty 20+

0

13

Snapper 2108765SM

BOLT, Rear Wheel

$6.49

$

In Stock, Qty 20+

0
