1695133 - Simplicity 44" Mower Deck 44" Mower Deck - Belt, Idler Arm & Hitch Group Parts Diagram

44" Mower Deck

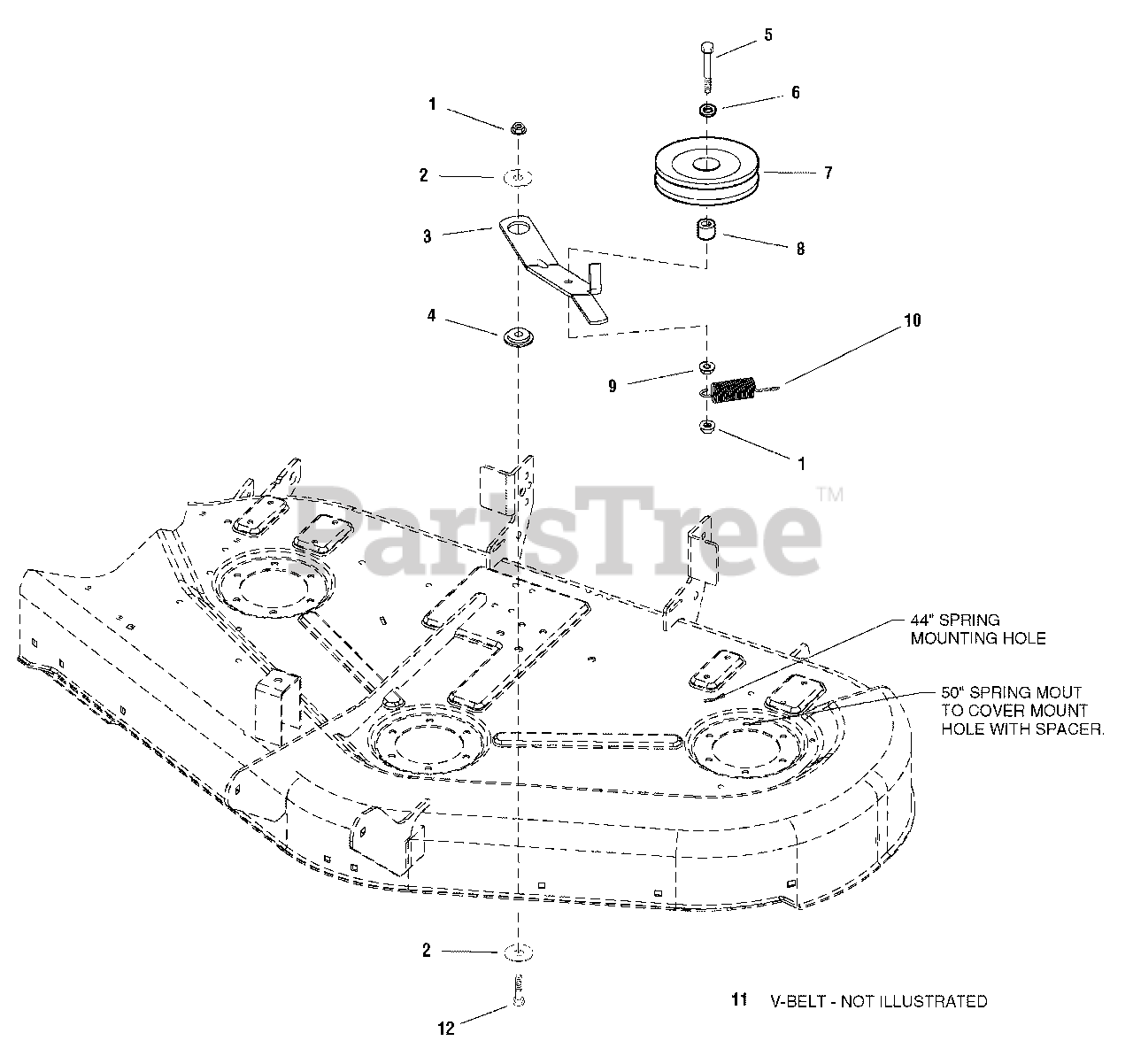

44" Mower Deck - Belt, Idler Arm & Hitch Group Parts Diagram

  • Title

1

Simplicity 1960339SM

NUT, Hex Flange Center Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

2

Simplicity 1924356SM

WASHER, Plain, 13/32 x 1-1/2 x 1/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 1730090ASM

ARM, Idler 7GA

$60.99

$

In Stock, only 1 left!

0

4

Simplicity 1714255SM

SPACER

$6.49

$

In Stock, Qty 17

0

5

Simplicity 1921972SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/2
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

6

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 2171247SM

PULLEY ASSEMBLY

$51.99

$

In Stock, Qty 20+

0

8

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 20+

0

9

Simplicity 1931211SM

NUT, Whizlock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1732558SM

SPRING, Extension, Idler Arm

$8.49

$

Usually ships in 2-12 days

0

11

Simplicity 1729627SM

V-BELT, Arbor Drive, 44"
(Superseded to 1761772YP)

$76.99

$

In Stock, only 3 left!

0

12

Simplicity 1922605SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, G8
(Superseded to 703969)

$4.99

$

Usually ships in 2-12 days

0
