1695099 - Simplicity 42" Snow Thrower Attachment Auger Drive Group Parts Diagram

42" Snow Thrower Attachment

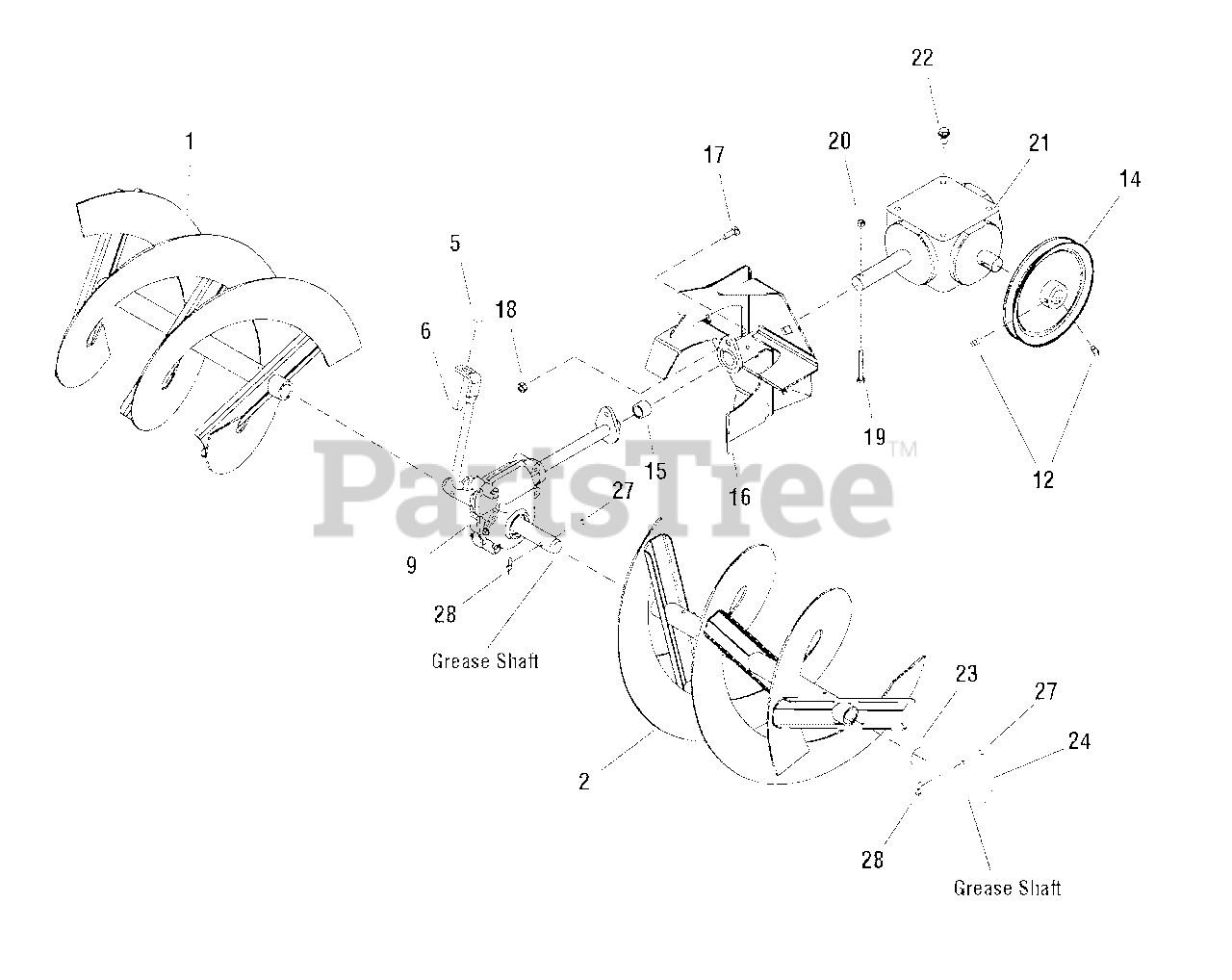

Auger Drive Group Parts Diagram

  • Title

1

Simplicity 1731326ASM

AUGER ASSEMBLY, 42" Housing, R.H.

$341.99

$

Usually ships in 2-12 days

0

2

Simplicity 1731325ASM

AUGER ASSEMBLY, 42" Housing, L.H.

$289.99

$

Usually ships in 2-12 days

0

5

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

6

Simplicity 1931277SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 1732207SM

AUGER, Gearbox Assembly
(Superseded to 772316)

Note: (See Gear Box Assembly Group)

$396.99

$

Usually ships in 2-12 days

0

12

Simplicity 1928721SM

SET SCREW, Square Head Cup 5/16-18 x 1/2, G8

$4.99

$

In Stock, only 3 left!

0

14

Simplicity 1724003SM

PULLEY, 7.50 OD

$87.99

$

Usually ships in 2-12 days

0

15

Simplicity 1723997SM

BUSHING

$26.99

$

Usually ships in 2-12 days

0

16

Simplicity 1723994ASM

IMPELLER ASSEMBLY, Large Frame Snow

$301.99

$

In Stock, only 1 left!

0

17

Simplicity 1731335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

18

Simplicity 1919438SM

NUT, Hex, Nylock 5/16 - 18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 1960506SM

CAPSCREW, 1/4 - 20 x 7/8
(Superseded to 704034)

$5.49

$

In Stock, only 1 left!

0

20

Simplicity 1920397SM

NUT, Hex, Nylock 1/4 - 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1723950ASM

GEARBOX, Assembly, Black
(Superseded to 1723950SM)

$404.99

$

Usually ships in 2-12 days

0

22

Simplicity 1933260SM

CAPSCREW, Whiz, 3/8 - 16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

23

Simplicity 1709894SM

BUSHING, 1.009ID x 1-1/8 OD x 1.13 Long Zytel

$5.49

$

In Stock, only 1 left!

0

24

Simplicity 1723931SM

SHAFT, 0.98 Diameter 4.85 Long

$24.99

$

Usually ships in 2-12 days

0

27

Simplicity 1668344SM

PIN, Shear, .248 ID x 1-3/4 Long
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 7023590SM

COTTER PIN, 1/4" Self Locking

$3.99

$

In Stock, Qty 20+

0

--

Simplicity 1686947SM

SEAL KIT, for Gear Box, Reference No. 21

$

$

Not available
