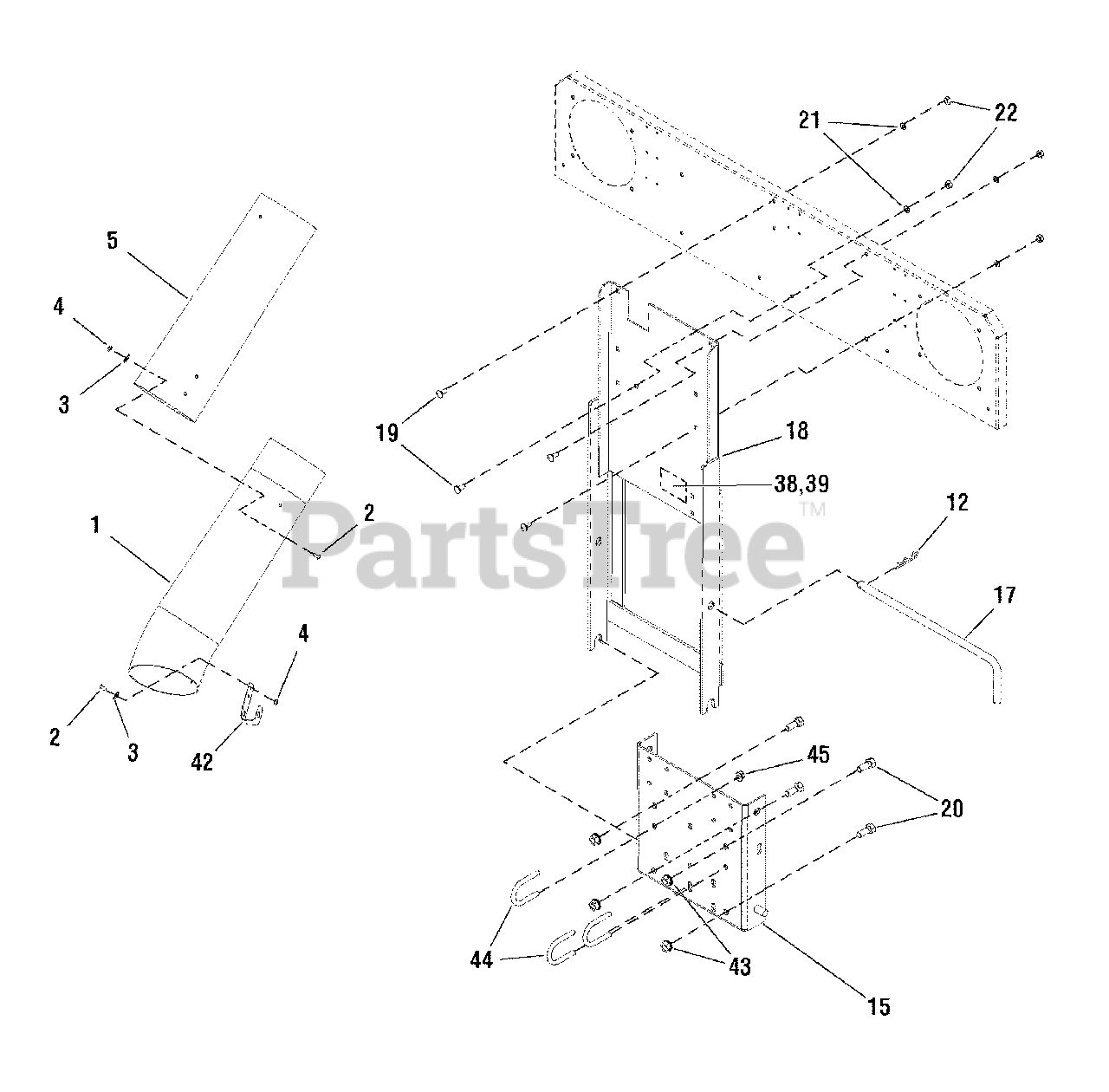

1695065 - Simplicity Clean Sweep Turbo Triple Grass Catcher Tube & Hitch Assembly Parts Diagram

Clean Sweep Turbo Triple Grass Catcher

Tube & Hitch Assembly Parts Diagram

  • Title

1

Simplicity 5049152SM

LOWER TUBE

$87.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960404SM

SCREW, Truss Head, #10 - 24 x 3/4

$3.99

$

In Stock, only 4 left!

0

3

Simplicity 1960096SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1933896SM

NUT, Hex Nylock, #10 - 24
(Superseded to 703412)

$4.49

$

Usually ships in 2-12 days

0

5

Simplicity 5049151SM

TUBE, Mid-Section

$107.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960033SM

CLIP, Hairpin

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1732625ASM

HITCH PLATE ASSEMBLY

$131.99

$

Usually ships in 2-12 days

0

17

Simplicity 1717085SM

HITCH ROD

$50.99

$

In Stock, only 2 left!

0

18

Simplicity 1723437ASM

SUPPORT ASSEMBLY

$186.99

$

Usually ships in 2-12 days

0

19

Simplicity 1931335SM

BOLT, Carriage, 5/16 - 18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 8

0

20

Simplicity 1921176SM

CAPSCREW, Hex Head, 1/2 - 13 x 1-1/4

Note: (Used ONLY on models with Flat Bumpers)

$4.99

$

In Stock, only 1 left!

0

21

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1917372SM

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

38

DECAL I.D.

Note: (Not serviceable)

$

$

Not available

39

OVERLAY, Mylar

Note: (Not serviceable)

$

$

Not available

42

Simplicity 1705063SM

CLIP, Spring
(Superseded to 1705063YP)

$

$

Not available

43

Simplicity 1960668SM

NUT, Hex Whiz Lock Flange, 1/2 - 13
(Superseded to 703918)

Note: (Used ONLY on models with Flat Bumpers)

$3.49

$

Usually ships in 2-12 days

0

44

Simplicity 1732617SM

U-BOLT, 3/8 x 1-1/4

Note: (Used ONLY on models with Tube Bumpers)

$7.49

$

Usually ships in 2-12 days

0

45

Simplicity 1960687SM

NUT, Hex Flange, 3/8 - 16, ESNA
(Superseded to 703158)

Note: (Used ONLY on models with Tube Bumpers)

$3.49

$

Usually ships in 2-12 days

0

46

Simplicity 1732613

OPERATORS MANUAL

$

$

Not available
