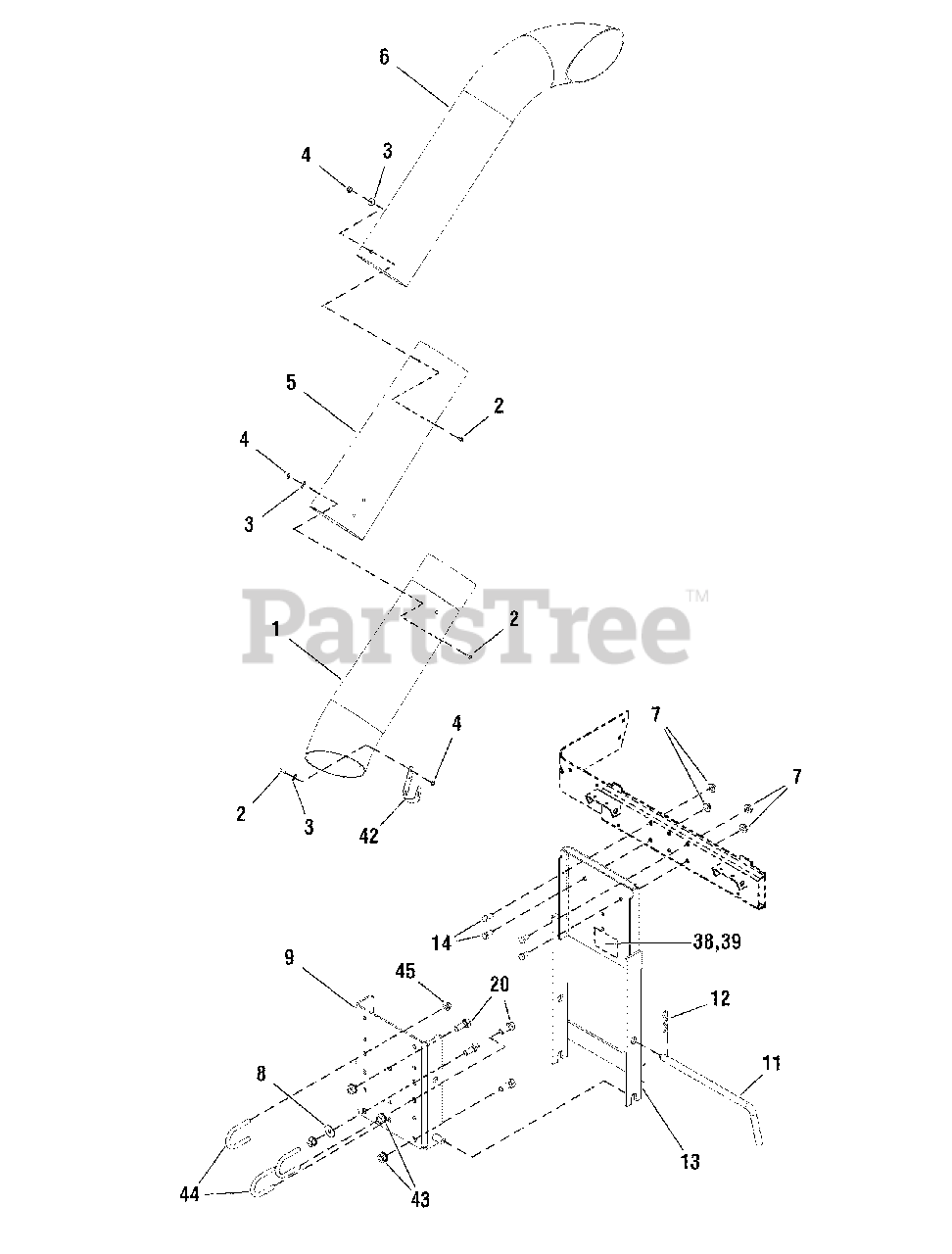

1695064 - Simplicity Clean Sweep Turbo Twin Grass Catcher Tube & Hitch Group Parts Diagram

Clean Sweep Turbo Twin Grass Catcher

Tube & Hitch Group Parts Diagram

  • Title

1

Simplicity 5049152SM

LOWER TUBE

$87.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960404SM

SCREW, Truss Head, #10 - 24 x 3/4

$3.99

$

In Stock, only 4 left!

0

3

Simplicity 1960096SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1933896SM

NUT, Hex Nylock, #10 - 24
(Superseded to 703412)

$4.49

$

Usually ships in 2-12 days

0

5

Simplicity 5049151SM

TUBE, Mid-Section

$107.99

$

Usually ships in 2-12 days

0

6

Simplicity 1704283SM

TUBE, Upper Section

$91.99

$

Usually ships in 2-12 days

0

7

Simplicity 1928352SM

NUT, Whiz Lock, 3/8 - 16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

8

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1732627ASM

MOUNTING PLATE, Bumper

$107.99

$

Usually ships in 2-12 days

0

11

Simplicity 5046693SM

ROD, Support

$22.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960033SM

CLIP, Hairpin

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 5046687ASM

COVER SUPPORT ASSEMBLY

$279.99

$

Usually ships in 2-12 days

0

14

Simplicity 1921965SM

CAPSCREW, 3/8 - 16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 1921176SM

CAPSCREW, Hex Head, 1/2 - 13 x 1-1/4

Note: (Used ONLY on models with Flat Bumpers)

$4.99

$

In Stock, only 1 left!

0

38

DECAL, I.D.

Note: (Not Serviceable)

$

$

Not available

39

OVERLAY, Mylar

Note: (Not Serviceable)

$

$

Not available

42

Simplicity 1705063SM

CLIP, Spring
(Superseded to 1705063YP)

Note: (View Operators Manual for clip position)

$

$

Not available

43

Simplicity 1960668SM

NUT, Hex Whiz Lock Flange, 1/2 - 13
(Superseded to 703918)

Note: (Used ONLY on models with Flat Bumpers)

$3.49

$

Usually ships in 2-12 days

0

44

Simplicity 1732617SM

U-BOLT, 3/8 x 1-1/4

Note: (Used ONLY on models with Tube Bumpers)

$7.49

$

Usually ships in 2-12 days

0

45

Simplicity 1960687SM

NUT, Hex Flange, 3/8 - 16, ESNA
(Superseded to 703158)

Note: (Used ONLY on models with Tube Bumpers)

$3.49

$

Usually ships in 2-12 days

0

46

Simplicity 1732614

OPERATORS MANUAL

$

$

Not available
