1695054 - Snapper Mulch Kit for 50" Mower 44 & 50" Mulcher Kit (1695054_1695055) Parts Diagram

Mulch Kit for 50" Mower

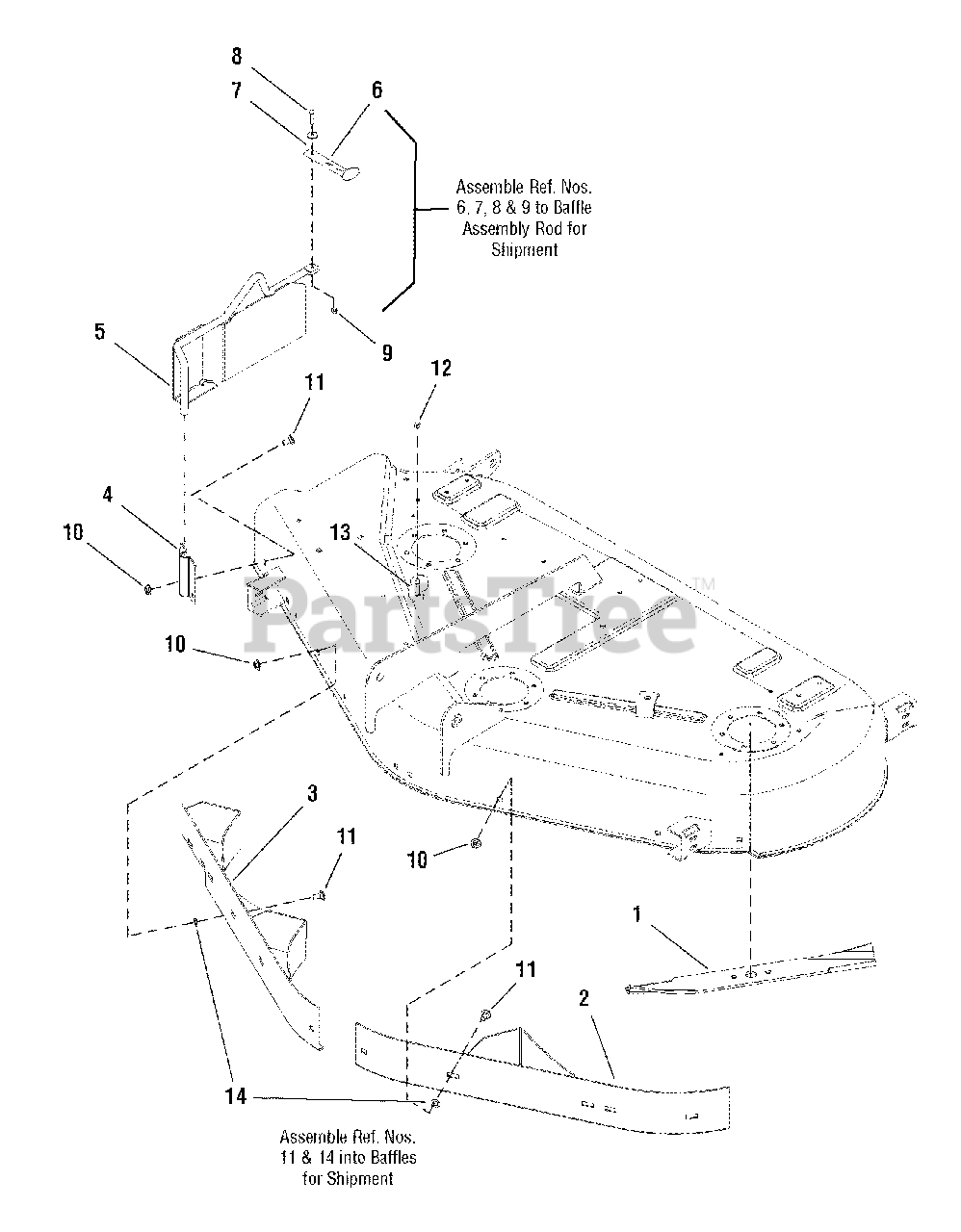

44 & 50" Mulcher Kit (1695054_1695055) Parts Diagram

  • Title

1

Snapper 1716697SM

BLADE, Mower, 50"
(Superseded to 1716697ASM)

$24.99

$

In Stock, Qty 20+

0

1

Snapper 1716696SM

BLADE, Mower, 44"
(Superseded to 1716696ASM)

$25.99

$

In Stock, Qty 20+

0

2

Snapper 1732436ASM

BAFFLE & DEFLECTOR ASSEMBLY, L.H. 50"

$247.99

$

Usually ships in 2-12 days

0

2

Snapper 1732435ASM

BAFFLE & DEFLECTOR ASSEMBLY, L.H. 44"

$110.99

$

Usually ships in 2-12 days

0

3

Snapper 1732433ASM

BAFFLE & DEFLECTOR ASSEMBLY, R.H. 50"

$

$

Not available

3

Snapper 1732432ASM

BAFFLE & DEFLECTOR ASSEMBLY, R.H. 44"

$

$

Not available

4

Snapper 1726578ASM

PLATE, Chute Rod

$32.99

$

Usually ships in 2-12 days

0

5

Snapper 1732349ASM

BAFFLE ASSEMBLY, Mulcher 50"

$286.99

$

In Stock, only 1 left!

0

5

Snapper 1732198ASM

BAFFLE ASSEMBLY, Mulcher 44"

$256.99

$

Usually ships in 2-12 days

0

6

Snapper 2171600SM

STRAP

$7.99

$

In Stock, Qty 20+

0

7

Snapper 1960096SM

WASHER, Flat, 3/16

$3.99

$

In Stock, only 2 left!

0

8

Snapper 1960393SM

SCREW, Phillips, Pan Head, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 1933896SM

NUT, ESNA, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

10

Snapper 1927557SM

NUT, Whiz Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

12

Snapper 1920397SM

NUT, ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 1960633SM

BOLT, Carriage, 1/4-20 x 1-1/2
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 1933988SM

NUT, PUSH, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

--

Snapper 1695054SM

KIT, Grass Mulcher, 50"

$427.99

$

Usually ships in 2-12 days

0

--

Snapper 1695055SM

KIT, Grass Mulcher, 44"

$282.99

$

Usually ships in 2-12 days

0
