1695033 - Snapper 44" Mower Deck 44" Mower Deck - Height Adjustment Parts Diagram

44" Mower Deck

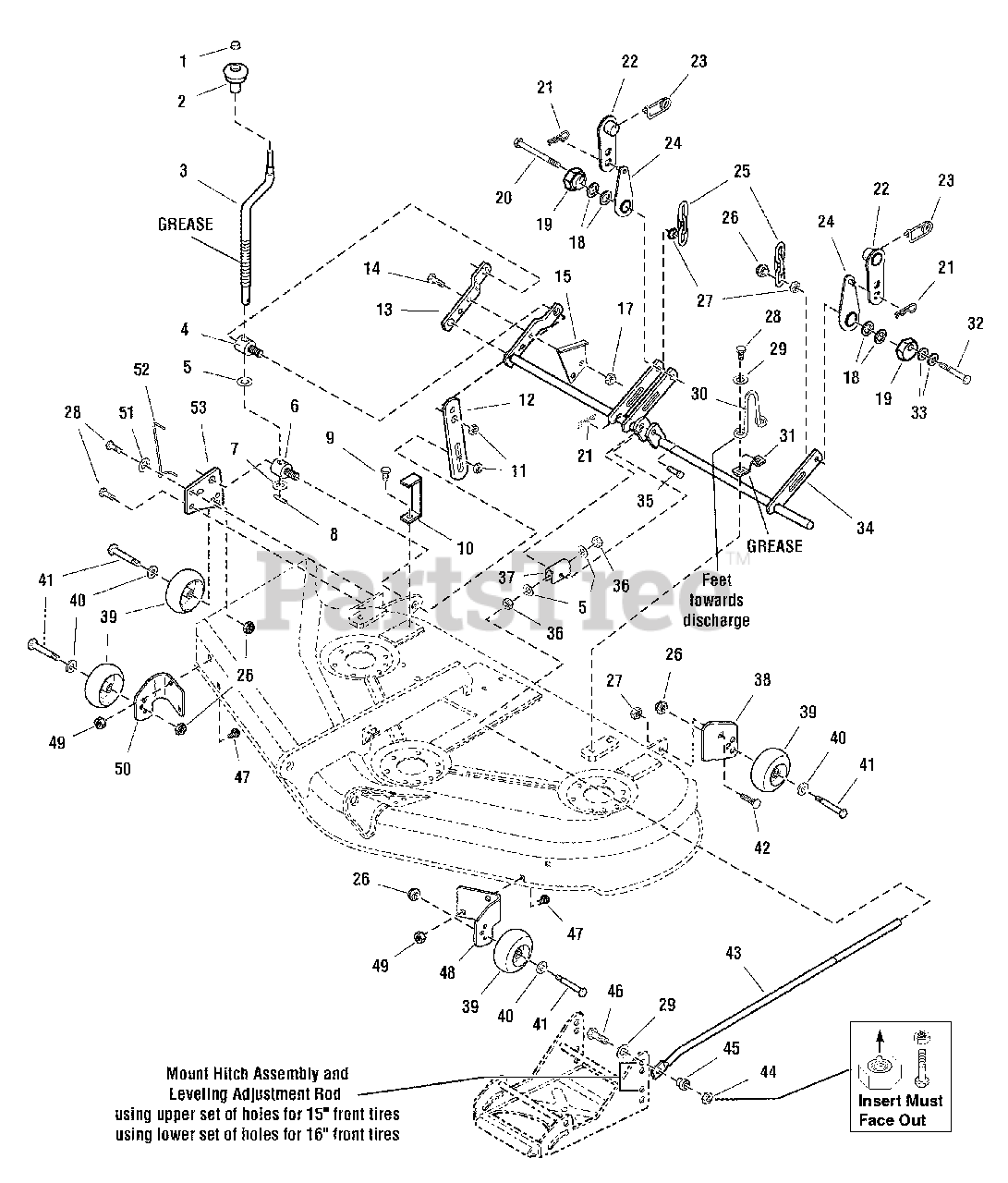

44" Mower Deck - Height Adjustment Parts Diagram

  • Title

1

Snapper 1960093SM

NUT, Push Pal Stud Capped
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

2

Snapper 1714084SM

KNOB, Spinner

$12.99

$

In Stock, only 1 left!

0

3

Snapper 1719901SM

CRANK, Height Adjustment

$48.99

$

In Stock, only 1 left!

0

4

Snapper 1704087SM

TRUNNION

$109.99

$

Usually ships in 2-12 days

0

5

Snapper 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

6

Snapper 1704086SM

TRUNNION

$31.99

$

Usually ships in 2-12 days

0

7

Snapper 1704097SM

WASHER, Detent

$4.49

$

In Stock, Qty 11

0

8

Snapper 2816001SM

PIN, Spring

$4.49

$

In Stock, Qty 11

0

9

Snapper 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 1722748ASM

BRACKET, Upstop

$19.99

$

Usually ships in 2-12 days

0

11

Snapper 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

12

Snapper 1727143ASM

STOP, Height Adjust

$12.99

$

Usually ships in 2-12 days

0

13

Snapper 1704083ASM

ARM, 1-1/4 Wide 6-41/64 Long

$13.99

$

In Stock, only 1 left!

0

14

Snapper 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

15

Snapper 1704116ASM

BRACKET, Height of Cut
(Superseded to 1704116BMYP)

$11.99

$

In Stock, only 1 left!

0

17

Snapper 1931277SM

NUT, Whiz Lock 5/16-18 NC-2B
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Snapper 2860208SM

WASHER, 1

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 1704082SM

NUT, Hex Adjusting, 11/16

$5.49

$

In Stock, Qty 16

0

20

Snapper 1913709SM

CAPSCREW, Hex Head, 3/8-16 x 3 G5

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 1960074SM

CLIP, Hair Pin Spring Wire 1-5/8 Long
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 1727361ASM

HANGER & SPACER ASSEMBLY

$40.99

$

Usually ships in 2-12 days

0

23

Snapper 2176012SM

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 1727356ASM

HANGER & PIN ASSEMBLY

$21.99

$

Usually ships in 2-12 days

0

25

Snapper 1707514ASM

CHAIN, Link 3 Links 4-1/2 Long

$14.99

$

In Stock, only 1 left!

0

26

Snapper 1960687SM

NUT, Hex Flange ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 1931211SM

NUT, Hex Flange Whiz Lock Small, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

28

Snapper 1931202SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

29

Snapper 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 1722747SM

STOP, Up

$21.99

$

Usually ships in 2-12 days

0

31

Snapper 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

32

Snapper 1922130SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/4 G5
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

33

Snapper 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

34

Snapper 1727138ASM

SHAFT ASSEMBLY, Rocker 44"

$139.99

$

Usually ships in 2-12 days

0

35

Snapper 2118053SM

PIN, Round Head Drilled, 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

36

Snapper 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 19

0

37

Snapper 1704081ASM

TRUNNION

$7.99

$

Usually ships in 2-12 days

0

38

Snapper 1727135ASM

SUPPORT, Roller LH

$9.49

$

Usually ships in 2-12 days

0

39

Snapper 1714760SM

WHEEL, 2 Wide

$6.49

$

In Stock, Qty 20+

0

40

Snapper 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

41

Snapper 2108765SM

BOLT, Wheel, 3/8-16 x 2-25/32

$6.49

$

In Stock, Qty 20+

0

42

Snapper 1931350SM

CARRIAGE BOLT, 3/8-16 x 1 G5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

43

Snapper 1704093SM

ROD, Adjustment, 28 Long

$47.99

$

Usually ships in 2-12 days

0

44

Snapper 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 7

0

45

Snapper 1706644SM

SPACER

$8.49

$

In Stock, only 1 left!

0

46

Snapper 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 12

0

47

Snapper 1931334SM

CARRIAGE BOLT, 5/16-18 x 7/8 G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

48

Snapper 1719852ASM

BRACKET, Wheel Guage LH

$26.99

$

In Stock, only 1 left!

0

49

Snapper 1927557SM

NUT, Hex Flange Whiz Liock Large, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

50

Snapper 1719853ASM

BRACKET, Wheel Guage RH

$29.99

$

In Stock, only 1 left!

0

51

Snapper 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

52

Snapper 1704114SM

ROD, Indicator, 6-5/16 Long

$16.99

$

In Stock, Qty 9

0

53

Snapper 1727134ASM

SUPPORT, Plate

$12.99

$

Usually ships in 2-12 days

0
