1694947 - Snapper Lift Lever Kit Lift Lever Kit Parts Diagram

Lift Lever Kit

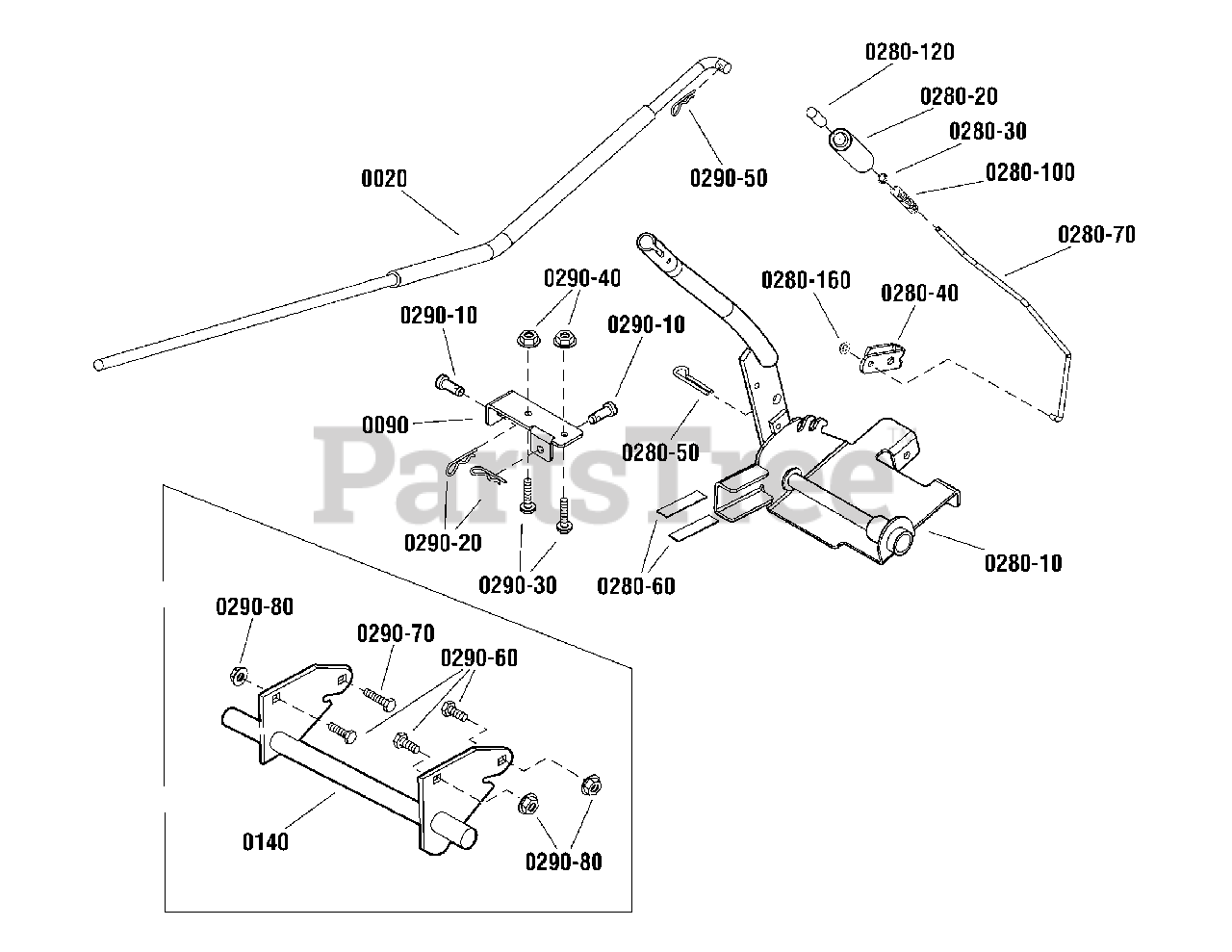

Lift Lever Kit Parts Diagram

  • Title

0020

Snapper 1725959ASM

ROD & TUBE ASSEMBLY

$99.99

$

Usually ships in 2-12 days

0

0090

Snapper 1732511ASM

BRACKET, Mounting

$45.99

$

Usually ships in 2-12 days

0

0140

Snapper 1731381ASM

SHAFT ASSEMBLY

$77.99

$

In Stock, only 1 left!

0

0280-10

Snapper 1727441ASM

LEVER ASSEMBLY
(Superseded to 1727441SM)

$274.99

$

Usually ships in 2-12 days

0

0280-20

Snapper 1713995SM

GRIP, Soft, Black

$12.99

$

In Stock, only 1 left!

0

0280-30

Snapper 1960674SM

PUSH NUT, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0280-40

Snapper 1721999ASM

LATCH, Lift Lever

$46.99

$

Usually ships in 2-12 days

0

0280-50

Snapper 1927609SM

PIN, 3/8 x 1

$3.49

$

In Stock, Qty 5

0

0280-60

Snapper 1725957SM

PAD, Rubber

$7.49

$

Usually ships in 2-12 days

0

0280-70

Snapper 1725958SM

ROD, Latch

$30.99

$

Usually ships in 2-12 days

0

0280-100

Snapper 1723321SM

SPRING, Compression

$6.99

$

In Stock, only 4 left!

0

0280-120

Snapper 1723124SM

BUTTON, Red

$5.99

$

In Stock, Qty 20+

0

0280-160

Snapper 1960126SM

PUSH NUT, 1/4
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

--

Snapper 1660908SM

HARDWARE BAG

Note: (Not a serviceable part)

$

$

Not available

0290-10

Snapper 1708298SM

PIN, Round Head, Drilled, 3/8 x 1

$

$

Not available

0290-20

Snapper 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0290-30

Snapper 1960585SM

CAPSCREW, Hex Head, 5/16-18 x 1-3/4

$5.49

$

Usually ships in 2-12 days

0

0290-40

Snapper 1931277SM

NUT, Hex, Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0290-50

Snapper 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

0290-60

Snapper 2826149SM

CAPSCREW, Hex Head, 5/16-18 x 1

$3.49

$

Usually ships in 2-12 days

0

0290-70

Snapper 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

0290-80

Snapper 1960636SM

NUT, Hex, KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0
