1694938 - Simplicity 50" Mower Deck 50" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

50" Mower Deck

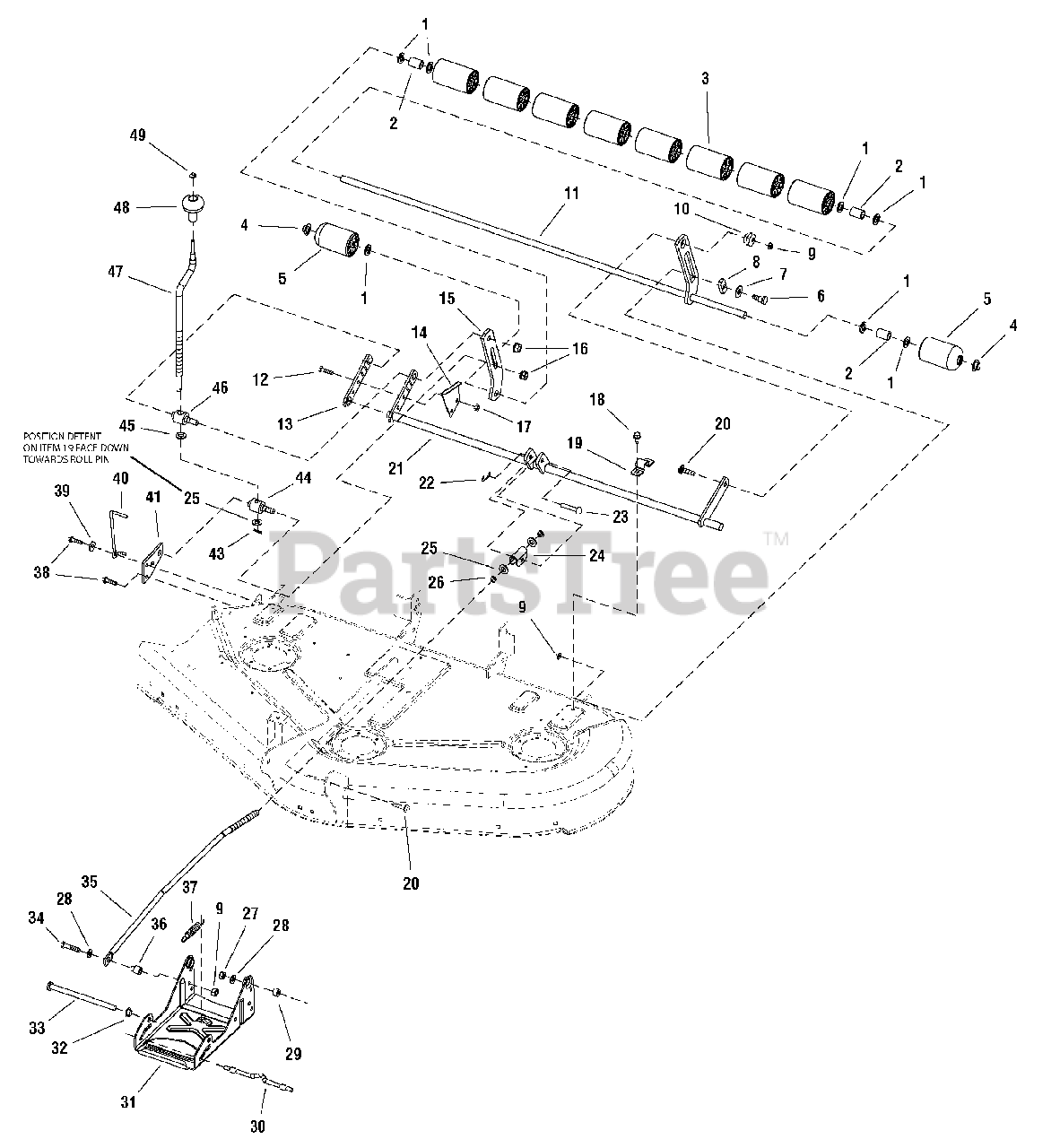

50" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

  • Title

1

Simplicity 1924366

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1709195

SPACER, 1-1/4 x 5/8
(Superseded to 1709195SM)

$5.99

$

In Stock, Qty 20+

0

3

Simplicity 1668513

ROLLER
(Superseded to 1668513SM)

$10.99

$

In Stock, Qty 20+

0

4

Simplicity 1960520

PUSH NUT, 5/8
(Superseded to 1960520SM)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1722036

ROLLER, Rounded End
(Superseded to 1722036SM)

$7.99

$

In Stock, Qty 20+

0

6

Simplicity 2172622

SHOULDER BOLT
(Superseded to 2172622SM)

$6.99

$

In Stock, Qty 20+

0

7

Simplicity 1924361

WASHER, Plain
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1677507

SLIDE
(Superseded to 1677507SM)

$6.99

$

In Stock, only 3 left!

0

9

Simplicity 2860681

NUT, Hex Toplock Spiral Flange, 3/8-16
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 7

0

10

Simplicity 1704082

NUT, Adjuster
(Superseded to 1704082SM)

$5.49

$

In Stock, Qty 16

0

11

Simplicity 1729739A

ROCKER SHAFT ASSEMBLY, 50"

$

$

Not available

12

Simplicity 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

13

Simplicity 1726409A

ARM, Rear
(Superseded to 1726409ASM)

$7.49

$

Usually ships in 2-12 days

0

14

Simplicity 1704116A

BRACKET, Cutting Height
(Superseded to 1704116BMYP)

$11.99

$

In Stock, only 1 left!

0

15

Simplicity 1731190A

BAR, Roller 44", 50"

$

$

Not available

16

Simplicity 1930644

NUT, Hex Head, 1/2-13
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 6

0

17

Simplicity 1931277

NUT, Hex, 5/16-18 NC-2B
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Simplicity 1664847SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1665374

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

20

Simplicity 1931352

CARRIAGE BOLT, 3/8-16 x 1-1/2
(Superseded to 1931352SM)

$4.49

$

In Stock, Qty 5

0

21

Simplicity 1729594A

SHAFT ASSEMBLY, Rocker 50"
(Superseded to 1729594ASM)

$165.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960074

CLIP, Spring
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 2118053

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

24

Simplicity 1704081A

TRUNNION
(Superseded to 1704081ASM)

$7.99

$

Usually ships in 2-12 days

0

25

Simplicity 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

26

Simplicity 1913744

LOCKNUT, Hex, Jam, 1/2-13
(Superseded to 1913744SM)

$4.99

$

In Stock, Qty 19

0

27

Simplicity 1960687

NUT, Hex ESNA Lock, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 2172329

SPACER
(Superseded to 1732443SM)

$5.99

$

In Stock, Qty 20+

0

30

Simplicity 1715759

ROD
(Superseded to 1715759SM)

$7.99

$

In Stock, Qty 10

0

31

Simplicity 1731406A

SUPPORT, Mower
(Superseded to 1760192AYP)

$155.99

$

In Stock, only 1 left!

0

32

Simplicity 1960519

NUT, Push, 1/2
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1713578

ROD
(Superseded to 1713578SM)

$15.99

$

In Stock, only 1 left!

0

34

Simplicity 1922606

CAPSCREW, Hex Head, 3/8-16 x 1 3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

35

Simplicity 1729625

ROD, E-Coat, 1/2-13 x 5.3, 28.900LG
(Superseded to 1729625SM)

$43.99

$

In Stock, only 1 left!

0

36

Simplicity 1706644

SPACER, 3/8 x 3/4 x 15/16
(Superseded to 1706644SM)

$8.49

$

In Stock, only 1 left!

0

37

Simplicity 2156302

SPRING, Extension
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

38

Simplicity 1931202

CAPSCREW, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

39

Simplicity 1919381

WASHER, Plain, 5/16
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

40

Simplicity 1732092

ROD, Indicator, Cutting Height
(Superseded to 1732092SM)

$11.99

$

In Stock, only 1 left!

0

41

Simplicity 1704080A

PLATE, Mower Support
(Superseded to 1704080ASM)

$8.49

$

In Stock, only 1 left!

0

43

Simplicity 2816001

PIN, Spring
(Superseded to 2816001SM)

$4.49

$

In Stock, Qty 11

0

44

Simplicity 1704086

TRUNNION
(Superseded to 1704086SM)

$31.99

$

Usually ships in 2-12 days

0

45

Simplicity 1704097

WASHER, Detent
(Superseded to 1704097SM)

$4.49

$

In Stock, Qty 11

0

46

Simplicity 1704087

TRUNNION, Threaded
(Superseded to 1704087SM)

$109.99

$

Usually ships in 2-12 days

0

47

Simplicity 1719901

CRANK, Height Adjustment, Black
(Superseded to 1719901SM)

$48.99

$

In Stock, only 1 left!

0

48

Simplicity 1714084

KNOB, Chute Control Spinner
(Superseded to 1714084SM)

$12.99

$

In Stock, only 1 left!

0

49

Simplicity 1960093

NUT, Push, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0
