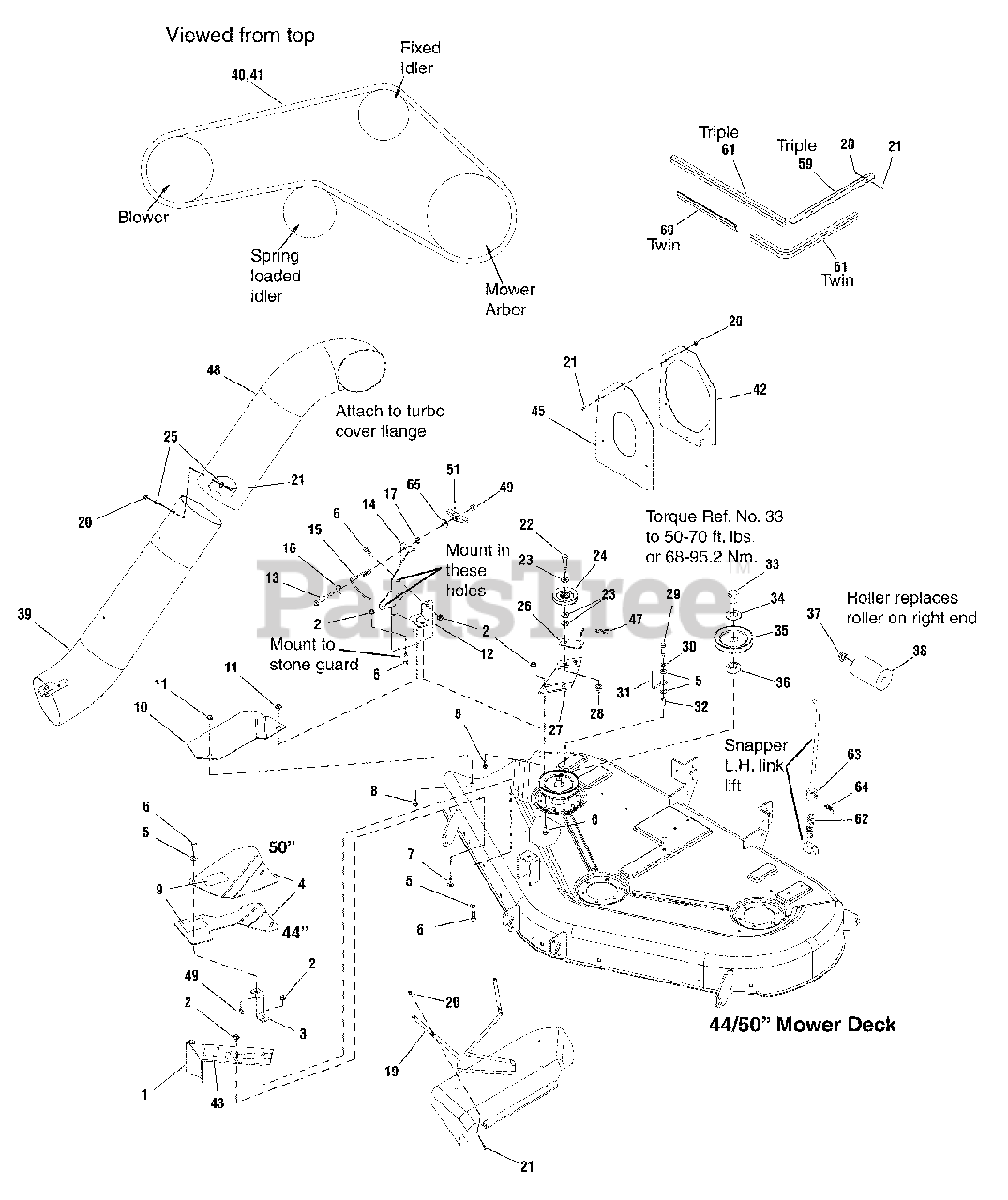

1694924 - Simplicity Turbo Collector for 44" & 50" Regent Mower Turbo, Mounting Kit Parts Diagram

Turbo Collector for 44" & 50" Regent Mower

Turbo, Mounting Kit Parts Diagram

  • Title

1

Simplicity 1722546ASM

PIVOT BRACKET ASSEMBLY

$216.99

$

Usually ships in 2-12 days

0

2

Simplicity 1931277SM

NUT, Hex Whiz Lock Flange, 5/16 - 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 1718304ASM

SUPPORT, Belt Cover

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 1724374ASM

COVER, Belt, 44"

$22.99

$

Usually ships in 2-12 days

0

4

Simplicity 1724376ASM

COVER, Belt, 50"

$21.99

$

Usually ships in 2-12 days

0

5

Simplicity 1919326SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 5

0

6

Simplicity 1923325SM

CAPSCREW, Hex, 5/16 - 18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 13

0

7

Simplicity 1931333SM

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

8

Simplicity 1931317SM

BOLT, Carriage, 1/4 - 20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

9

Simplicity 1717291SM

DECAL, Warning

$13.99

$

Usually ships in 2-12 days

0

10

Simplicity 1732591ASM

COVER, Mower

$40.99

$

Usually ships in 2-12 days

0

11

Simplicity 1960685SM

NUT, Keps Conical, 1/4 - 20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

12

Simplicity 1732592ASM

BRACKET, Baffle

$45.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960318SM

CAPSCREW, Hex, 5/16 - 18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1732619ASM

BAFFLE, Turbo

$27.99

$

Usually ships in 2-12 days

0

15

Simplicity 1705064SM

SPRING, Latch

$44.99

$

Usually ships in 2-12 days

0

16

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1960636SM

NUT, Keps Lock, 5/16 - 18

$4.99

$

In Stock, only 1 left!

0

19

Simplicity 1718295ASM

ROD, Deflector

$112.99

$

Usually ships in 2-12 days

0

20

Simplicity 1933896SM

NUT, ESNA Lock, 10 - 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 1960404SM

SCREW, Truss Phillips, 10 - 24 x 3/4

$3.99

$

In Stock, only 4 left!

0

22

Simplicity 1923701SM

CAPSCREW, Hex, 3/8 - 16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1714817SM

PULLEY, Idler, 2-3/4
(Superseded to 703056)

$42.99

$

In Stock, Qty 6

0

25

Simplicity 1910531SM

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 1724373ASM

BRACKET, "L"

$17.99

$

Usually ships in 2-12 days

0

27

Simplicity 1704768ASM

BRACKET, "Z"

$13.99

$

Usually ships in 2-12 days

0

28

Simplicity 1931211SM

NUT, Whiz Lock Small, 3/8 - 16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

29

Simplicity 1921221SM

CAPSCREW, Hex, 5/16 - 18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

30

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 2172845SM

STOP, Belt

$11.99

$

Usually ships in 2-12 days

0

32

Simplicity 1710703SM

SPACER

$6.49

$

In Stock, Qty 20+

0

33

Simplicity 1733078SM

NUT, Short Sleeve

$27.99

$

Usually ships in 2-12 days

0

34

Simplicity 1603592SM

WASHER, Flat, 7/8

$11.99

$

Usually ships in 2-12 days

0

35

Simplicity 1709941SM

PULLEY, 4.3

$28.99

$

Usually ships in 2-12 days

0

36

Simplicity 1713623SM

HUB, Double, 5/8

$9.99

$

In Stock, only 1 left!

0

37

Simplicity 1960520SM

NUT, Push
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

38

Simplicity 1713540SM

ROLLER

$43.99

$

Usually ships in 2-12 days

0

39

Simplicity 1719719SM

TUBE ASSEMBLY, Lower

$170.99

$

Usually ships in 2-12 days

0

40

Simplicity 1732801SM

V-BELT, 39.62

Note: (50" Mower Decks)

$26.99

$

Usually ships in 2-12 days

0

41

Simplicity 1732945SM

V-BELT, 37.9

Note: (44" Mower Decks)

$25.99

$

In Stock, only 1 left!

0

42

Simplicity 1732735ASM

SEAL, Flange

$40.99

$

Usually ships in 2-12 days

0

43

*DECAL, Patent

$

$

Not available

45

Simplicity 1733741SM

SEAL, Cover
(Superseded to 1733741YP)

$29.99

$

Usually ships in 2-12 days

0

47

Simplicity 1960074SM

PIN, Klik
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

48

Simplicity 1732800SM

TUBE, Upper

$74.99

$

Usually ships in 2-12 days

0

49

Simplicity 1919438SM

NUT, ESNA, 5/16 - 18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

51

Simplicity 071294MA

WINGNUT
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

59

Simplicity 1733580ASM

PLATE, Deflector

$36.99

$

Usually ships in 2-12 days

0

60

Simplicity 1717496SM

SEAL, Rubber

$19.99

$

Usually ships in 2-12 days

0

61

Simplicity 1733579SM

SEAL, Rubber
(Superseded to 1721175SM)

$39.99

$

Usually ships in 2-12 days

0

62

Simplicity 1729277SM

SPRING, Compression

Note: (For Use On Snapper Models)

$6.99

$

In Stock, only 1 left!

0

63

Simplicity 1719777SM

COLLAR, Locking

Note: (For Use On Snapper Models)

$14.99

$

Usually ships in 2-12 days

0

64

Simplicity 1928721SM

SCREW, Set, 5/16 - 19

Note: (For Use On Snapper Models)

$4.99

$

In Stock, only 2 left!

0

65

Simplicity 1709256SM

WASHER, Spring Cup

$5.99

$

In Stock, only 2 left!

0

--

Simplicity 1660934SM

HARDWARE BAG

$53.99

$

Usually ships in 2-12 days

0

--

Simplicity 1732839

INSTALLATION INSTRUCTIONS

$

$

Not available
