1694920 - Simplicity 42" Snow Thrower Attachment Drive & Hitch Group Parts Diagram

42" Snow Thrower Attachment

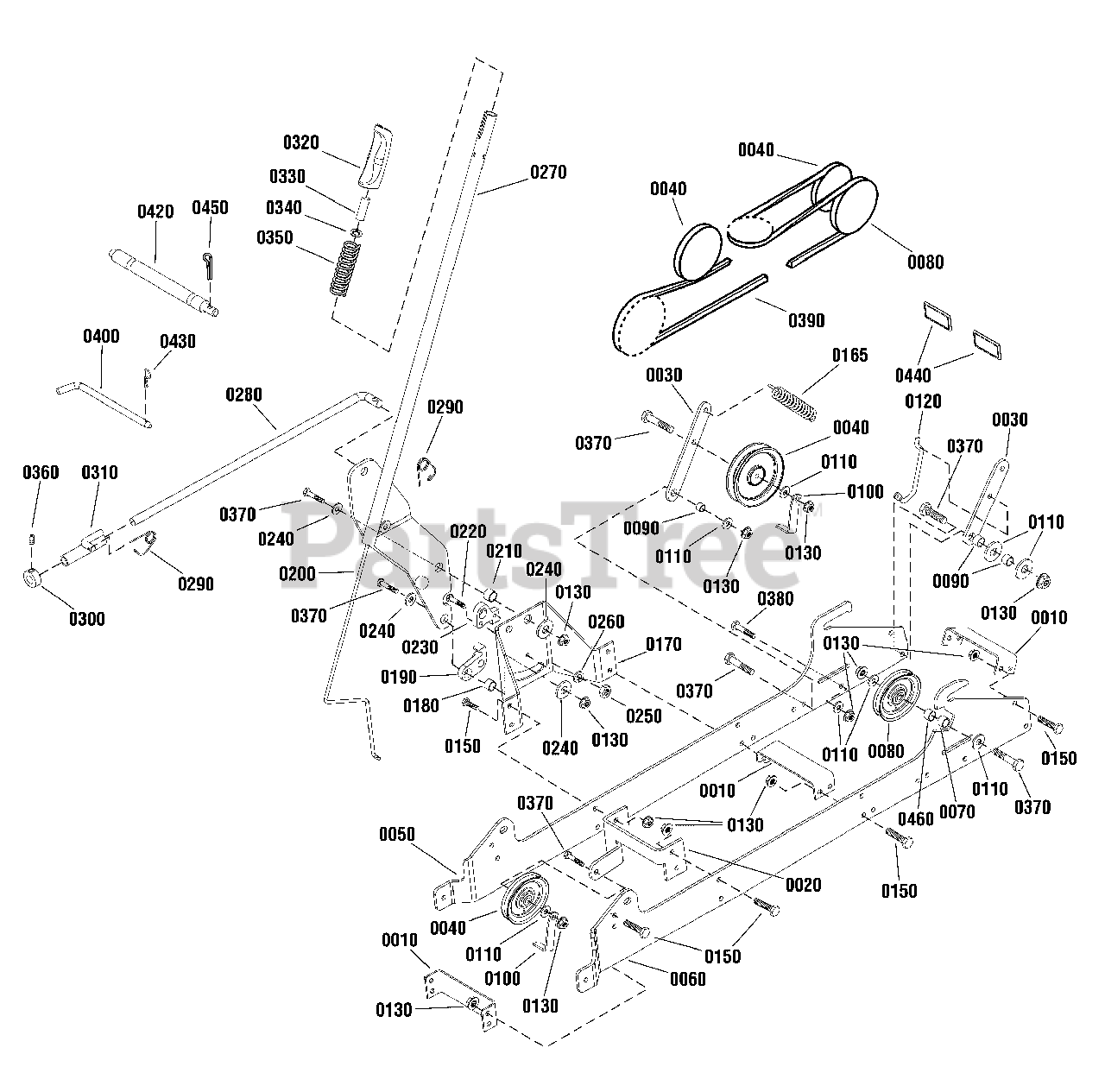

Drive & Hitch Group Parts Diagram

  • Title

0010

Simplicity 1733050ASM

BRACE

$45.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1732629ASM

FRONT CROSS RAIL

$59.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1731341ASM

ARM, Pivot

$32.99

$

Usually ships in 2-12 days

0

0040

Simplicity 2171247SM

PULLEY, Idler

$51.99

$

In Stock, Qty 20+

0

0050

Simplicity 1732508ASM

SIDE PLATE, RH

$170.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1732507ASM

SIDE PLATE, LH

$170.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1667812SM

SPACER .39 ID

$5.99

$

In Stock, Qty 16

0

0080

Simplicity 1666287ASM

PULLEY ASSEMBLY w/ Bearing

$91.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1611705SM

SPACER .385 ID

$4.49

$

In Stock, Qty 17

0

0100

Simplicity 2162115ASM

STOP, Belt

$12.99

$

Usually ships in 2-12 days

0

0110

Simplicity 704128

WASHER, 3/8

$4.99

$

In Stock, Qty 9

0

0120

Simplicity 1732562SM

StOP, Belt

$

$

Not available

0130

Simplicity 703158

NUT, Whizlock 3/8 - 16

$3.49

$

Usually ships in 2-12 days

0

0150

Simplicity 703969

CAPSCREW, HexHead 3/8 - 16 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

0165

Simplicity 1716853SM

SPRING, Tension

$12.99

$

In Stock, only 3 left!

0

0170

Simplicity 1733010ASM

BRACKET, Handle

$42.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1733068SM

SPACER .39 ID

$13.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1722112SM

LOCK, Lift

$16.99

$

In Stock, Qty 8

0

0200

Simplicity 1733018SM

ROD, Latch

$53.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1733031SM

SPACER, Pivot .39 ID

$24.99

$

Usually ships in 2-12 days

0

0220

Simplicity 703570

CAPSCREW, HexHead 5/16 - 18 x 1-1/4

$4.99

$

In Stock, Qty 7

0

0230

Simplicity 1721581SM

QUADRANT, Lift

$11.99

$

In Stock, only 2 left!

0

0240

Simplicity 703591

WASHER 3/8

$5.49

$

In Stock, Qty 20+

0

0250

Simplicity 703465

NUT, Hex 5/16 - 18

$4.49

$

Usually ships in 2-12 days

0

0260

Simplicity 703116

LOCKWASHER, Spring 5/16

$3.49

$

In Stock, Qty 20+

0

0270

Simplicity 1733061ASM

HANDLE, Weldment

$290.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1733088SM

ROD, Lift

$39.99

$

Usually ships in 2-12 days

0

0290

Simplicity 703852

CLIP, Safety

$4.49

$

In Stock, Qty 20+

0

0300

Simplicity 1729258SM

COLLAR, Set
(Superseded to 5010477YP)

$

$

Not available

0310

Simplicity 1723115SM

GUIDE, Rod Assembly

$54.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1722291SM

GRIP, Lift Handle

$11.99

$

In Stock, Qty 11

0

0330

Simplicity 1723124SM

BUTTON

$5.99

$

In Stock, Qty 20+

0

0340

Simplicity 1960674SM

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0350

Simplicity 1723321SM

SPRING, Compression

$6.99

$

In Stock, only 4 left!

0

0360

Simplicity 1928721SM

SCREW, Set

$4.99

$

In Stock, only 2 left!

0

0370

Simplicity 703872

CAPSCREW, HexHead 3/8 - 16 x 2-1/4

$4.99

$

In Stock, Qty 20+

0

0380

Simplicity 703406

CAPSCREW, HexHead, 3/8 - 16 x 1-1/2

$4.99

$

In Stock, only 1 left!

0

0390

Simplicity 1724507SM

V-BELT HA
(Superseded to 771999)

$95.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1731414SM

ROD, Latch

$14.99

$

Usually ships in 2-12 days

0

0420

Simplicity 1732420SM

SHAFT, Cross

$100.99

$

Usually ships in 2-12 days

0

0430

Simplicity 703796

PIN, Cotter

$5.49

$

In Stock, only 1 left!

0

0440

Simplicity 1701600SM

REFLECTOR, Red

$11.99

$

Usually ships in 2-12 days

0

0450

Simplicity 703795

PIN, Cotter

$5.99

$

In Stock, only 1 left!

0

0460

Simplicity 1666294SM

SPACER, Idler

$4.99

$

In Stock, Qty 20+

0
