1694875 - Murray Power Source Handles & Controls Group Parts Diagram

Power Source

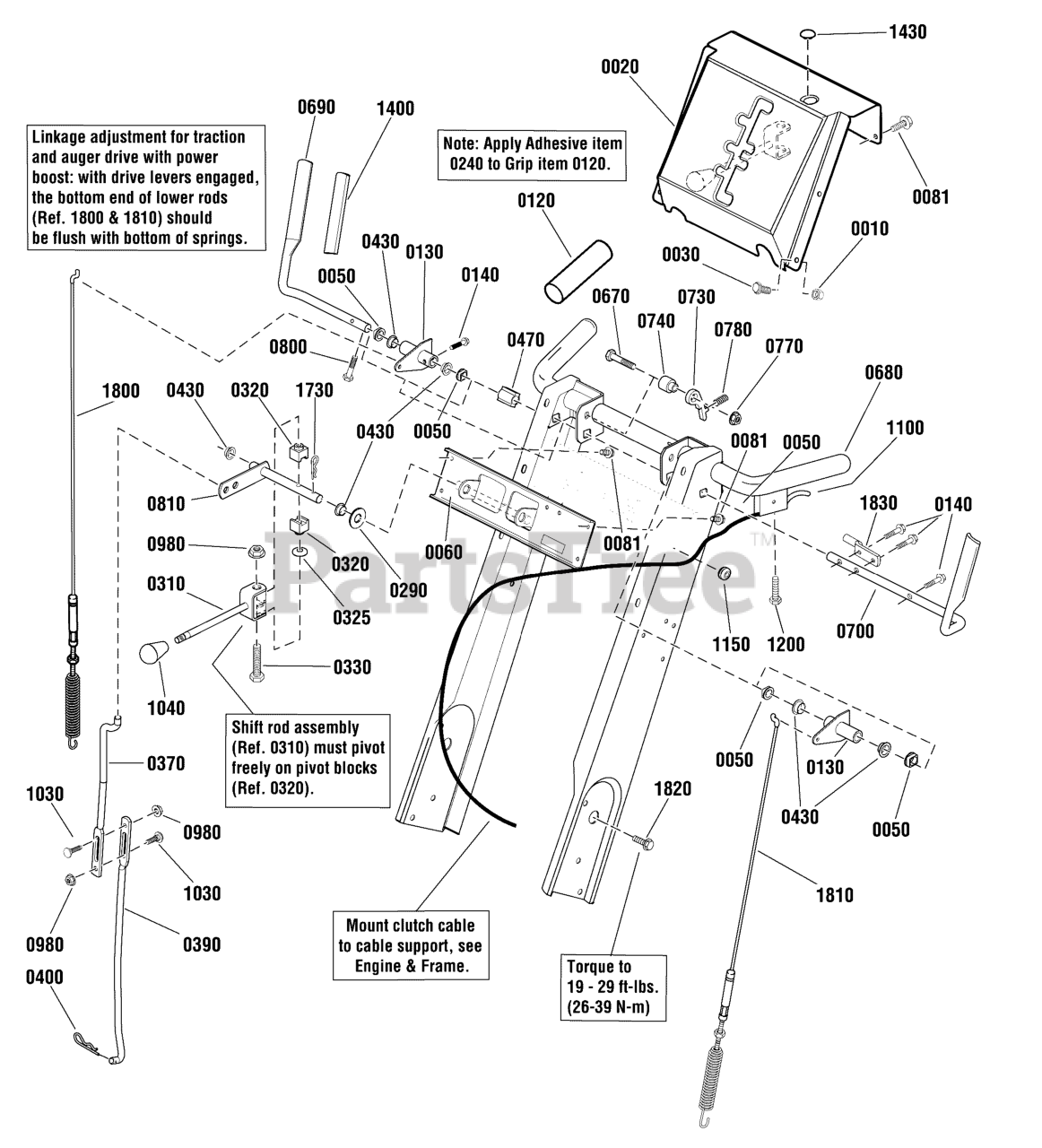

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 1930641SM

NUT, Hex Flange 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0020

Murray 1667800ZSM

DASHBOARD

$

$

Not available

0030

Murray 1935450SM

CAPSCREW, Hex Flange 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0050

Murray 1732732SM

BUSHING

$3.99

$

Usually ships in 2-12 days

0

0060

Murray 1723935ASM

BRACKET, Shift Control
(Superseded to 1723935BMYP)

$15.99

$

Usually ships in 2-12 days

0

0081

Murray 1925592SM

SCREW, Hex Washer Head 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0120

Murray 1726317SM

GRIP, Black

$8.49

$

In Stock, only 1 left!

0

0130

Murray 1725205ASM

LEVER, Clutch Assembly

$33.99

$

Usually ships in 2-12 days

0

0140

Murray 1960471SM

SCREW, Washer Head 12-24 x 1

$3.49

$

In Stock, only 1 left!

0

0240

ADHESIVE, Locktite

$

$

Not available

0290

Murray 1924361SM

WASHER, Flat, 17/32 ID X 1 1/4 OD X 5/64 THK
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0310

Murray 1668523SM

SHIFT ROD & CLEVIS ASSEMBLY
(Superseded to 703053)

$38.99

$

Usually ships in 2-12 days

0

0320

Murray 1668524SM

BLOCK, Pivot
(Superseded to 703050)

$13.99

$

Usually ships in 2-12 days

0

0325

Murray 1668681SM

WASHER, Curved

$4.49

$

Usually ships in 2-12 days

0

0330

Murray 1960705SM

SCREW, Hex Whiz Lock 1/4-20 x 2 1/4

$2.99

$

Usually ships in 2-12 days

0

0370

Murray 1726304SM

ROD, 11 3/8 Long

$

$

Not available

0390

Murray 1666255SM

ROD, 15 5/16 Long

$51.99

$

In Stock, only 4 left!

0

0400

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0430

Murray 1668185SM

BUSHING, 1/2 - 3/4 x 1/4

$5.49

$

In Stock, only 1 left!

0

0470

Murray 1705899SM

GUIDE, Control
(Superseded to 703213)

$8.49

$

In Stock, only 2 left!

0

0670

Murray 1933689SM

SCREW, 5/16-18 x 1-1/2, Hex Flange, Whiz Lock

$4.49

$

Usually ships in 2-12 days

0

0680

Murray 1729855ZSM

HANDLE ASSEMBLY
(Superseded to 1729855JSM)

$253.99

$

Usually ships in 2-12 days

0

0690

Murray 1727128SM

HANDLE, Clutch RH

$40.99

$

Usually ships in 2-12 days

0

0700

Murray 1727127SM

HANDLE, Clutch LH

$45.99

$

Usually ships in 2-12 days

0

0730

Murray 1705898SM

LATCH, Control
(Superseded to 703214)

$9.49

$

Usually ships in 2-12 days

0

0740

Murray 1678579SM

SPACER, 21/64
(Superseded to 703049)

$6.99

$

Usually ships in 2-12 days

0

0770

Murray 1960686SM

NUT, Hex Flange 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0780

Murray 1701342SM

SPRING, Compression
(Superseded to 1750475YP)

$4.49

$

Usually ships in 2-12 days

0

0800

Murray 1928732SM

SCREW, Hex Washer Head #10-24 x 1
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

0810

Murray 1734696SM

ROD & ARM ASSEMBLY
(Superseded to 703052)

$39.99

$

Usually ships in 2-12 days

0

0980

Murray 1960685SM

NUT, Hex 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

1030

Murray 1931317SM

BOLT, Round Head, Short Neck 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

1040

Murray 1732470SM

KNOB

$19.99

$

In Stock, Qty 6

0

1100

Murray 1718791SM

HANDLE & CABLE ASSEMBLY

$70.99

$

In Stock, only 3 left!

0

1150

Murray 1664022SM

GROMMET, 1/2

$4.49

$

Usually ships in 2-12 days

0

1200

Murray 1725702SM

SCREW, Pan head

$5.49

$

Usually ships in 2-12 days

0

1400

Murray 1668608SM

GRIP, Handle Clutch

$

$

Not available

1430

Murray 1724489SM

PLUG, Button

$3.49

$

Usually ships in 2-12 days

0

1730

Murray 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

1800

Murray 1735148SM

CABLE & SPRING ASSEMBLY, RH

$23.99

$

In Stock, only 1 left!

0

1810

Murray 1728115SM

CABLE & SPRING ASSEMBLY, LH

$17.99

$

Usually ships in 2-12 days

0

1820

Murray 1960729SM

SCREW, Hex Head Serrated Flange Tapping, 5/16-18 X 1

$3.49

$

Usually ships in 2-12 days

0

1830

Murray 1677453SM

ROD, Control

$8.99

$

Usually ships in 2-12 days

0
