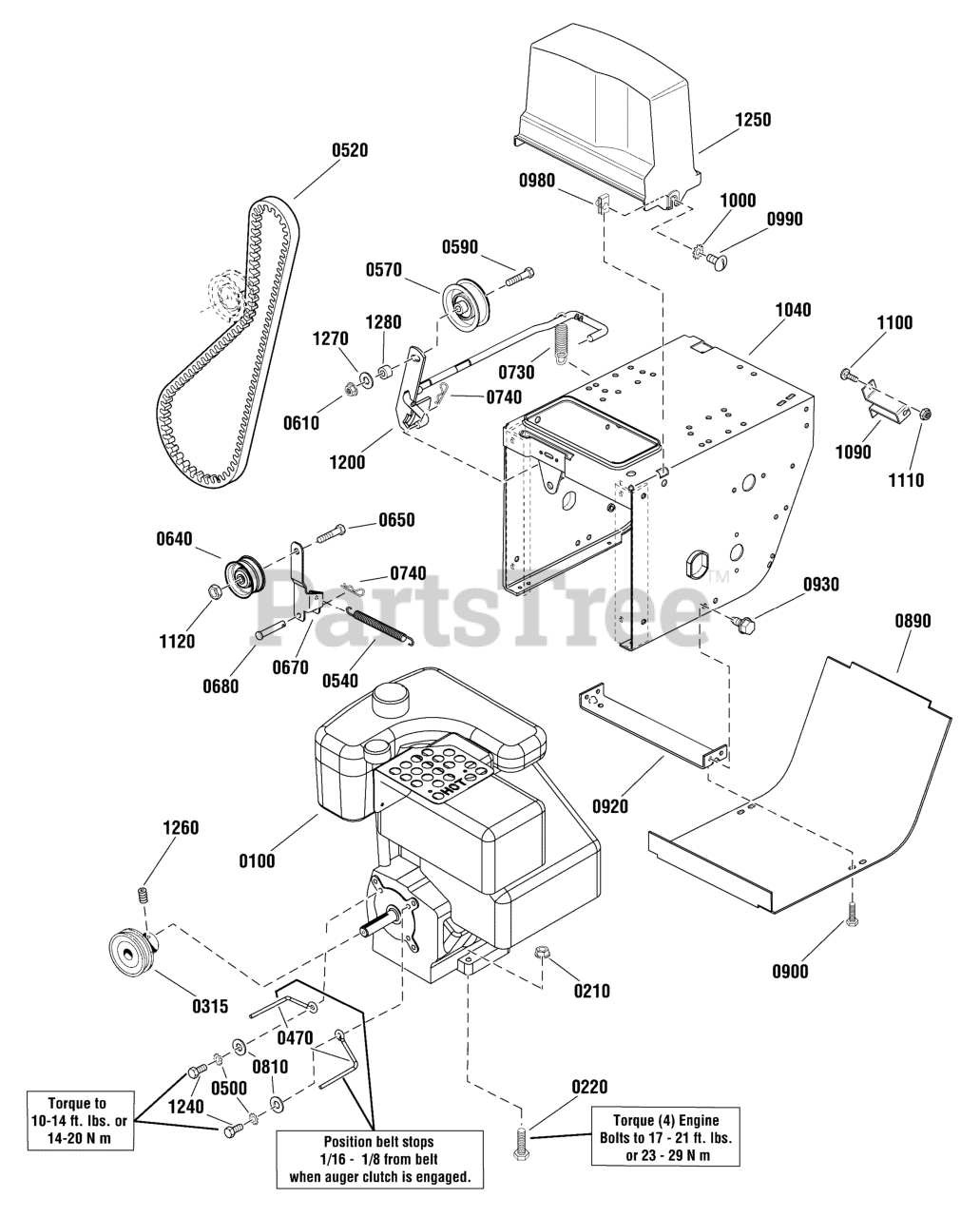

1694875 - Murray Power Source Engine & Frame Group Parts Diagram

Power Source

Engine & Frame Group Parts Diagram

  • Title

0100

Murray PH-951501

*ENGINE, 9.0HP KOHLER

Note: (Models Series: PH-951501)

$

$

Not available

0210

Murray 2831277SM

NUT, Hex Flange 5/16-18

$3.49

$

Usually ships in 2-12 days

0

0220

Murray 704288

CAPSCREW, Hex Head, 5/16-18 x 1 3/4

$4.99

$

Usually ships in 2-12 days

0

0315

Murray 1676493SM

PULLEY, Double

$95.99

$

Usually ships in 2-12 days

0

0470

Murray 1731178SM

STOP, Belt

$10.99

$

In Stock, only 1 left!

0

0500

Murray 1917356SM

LOCKWASHER, Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0520

Murray 1676461SM

V-BELT, 3L

$24.99

$

In Stock, only 1 left!

0

0540

Murray 1727149SM

SPRING, Extension
(Superseded to 703146)

$

$

Not available

0570

Murray 1726348SM

PULLEY, Idler

$24.99

$

In Stock, only 4 left!

0

0590

Murray 2860709SM

SCREW, Hex Whiz Lock 3/8-16 x 1 3/4
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

0610

Murray 1928352SM

NUT, Hex Flange 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

0640

Murray 1668477SM

PULLEY, Idler

$23.99

$

In Stock, Qty 20+

0

0650

Murray 1960647SM

SCREW, Hex Head, 3/8-16 x 1-1/2

$7.49

$

Usually ships in 2-12 days

0

0670

Murray 1703046ASM

ARM, Idler

$10.99

$

Usually ships in 2-12 days

0

0680

Murray 1665994SM

PIN, Flat Head
(Superseded to 703145)

$3.99

$

In Stock, only 3 left!

0

0730

Murray 2159106SM

SPRING, Extension
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

0740

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0810

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

0890

Murray 706523

COVER, Bottom

$98.99

$

Usually ships in 2-12 days

0

0900

Murray 1925003SM

SCREW, Hex Washer Head 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

0920

Murray 1727004ASM

SUPPORT, Tie Bar
(Superseded to 1727004BMYP)

$14.99

$

Usually ships in 2-12 days

0

0930

Murray 1664847SM

SCREW, Hex Washer Head 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0980

Murray 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

0990

Murray 1918249SM

SCREW, 5/16-18 X 3/4, Slotted Truss Head, Blk

$4.99

$

Usually ships in 2-12 days

0

1000

Murray 2820426SM

LOCKWASHER, External Tooth 5/16

$4.49

$

In Stock, only 1 left!

0

1040

Murray 706524

FRAME

$

$

Not available

1090

Murray 1720404ASM

SUPPORT, Clutch Cable
(Superseded to 1720404BMYP)

$12.99

$

Usually ships in 2-12 days

0

1100

Murray 1931317SM

BOLT, Carriage 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

1110

Murray 1960685SM

NUT, Hex 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

1120

Murray 1928731SM

NUT, Hex, Top Lock 3/8-16

$4.99

$

In Stock, only 1 left!

0

1200

Murray 1729646ASM

ROD, Clutch, Brake Arm
(Superseded to 1729646BMYP)

$117.99

$

Usually ships in 2-12 days

0

1240

Murray 1921515SM

CAPSCREW, Hex Head 5/16-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

1250

Murray 1724630

COVER, Belt

$

$

Not available

1260

Murray 1930540SM

SCREW, Set, Square Head 5/16-18 x 5/8

$4.49

$

In Stock, Qty 10

0

1270

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

1280

Murray 1667811SM

SPACER, 3/8

$3.49

$

In Stock, Qty 20+

0
