1694874 - Simplicity 42" Snow Thrower Attachment Auger Housing & Chute Group Parts Diagram

42" Snow Thrower Attachment

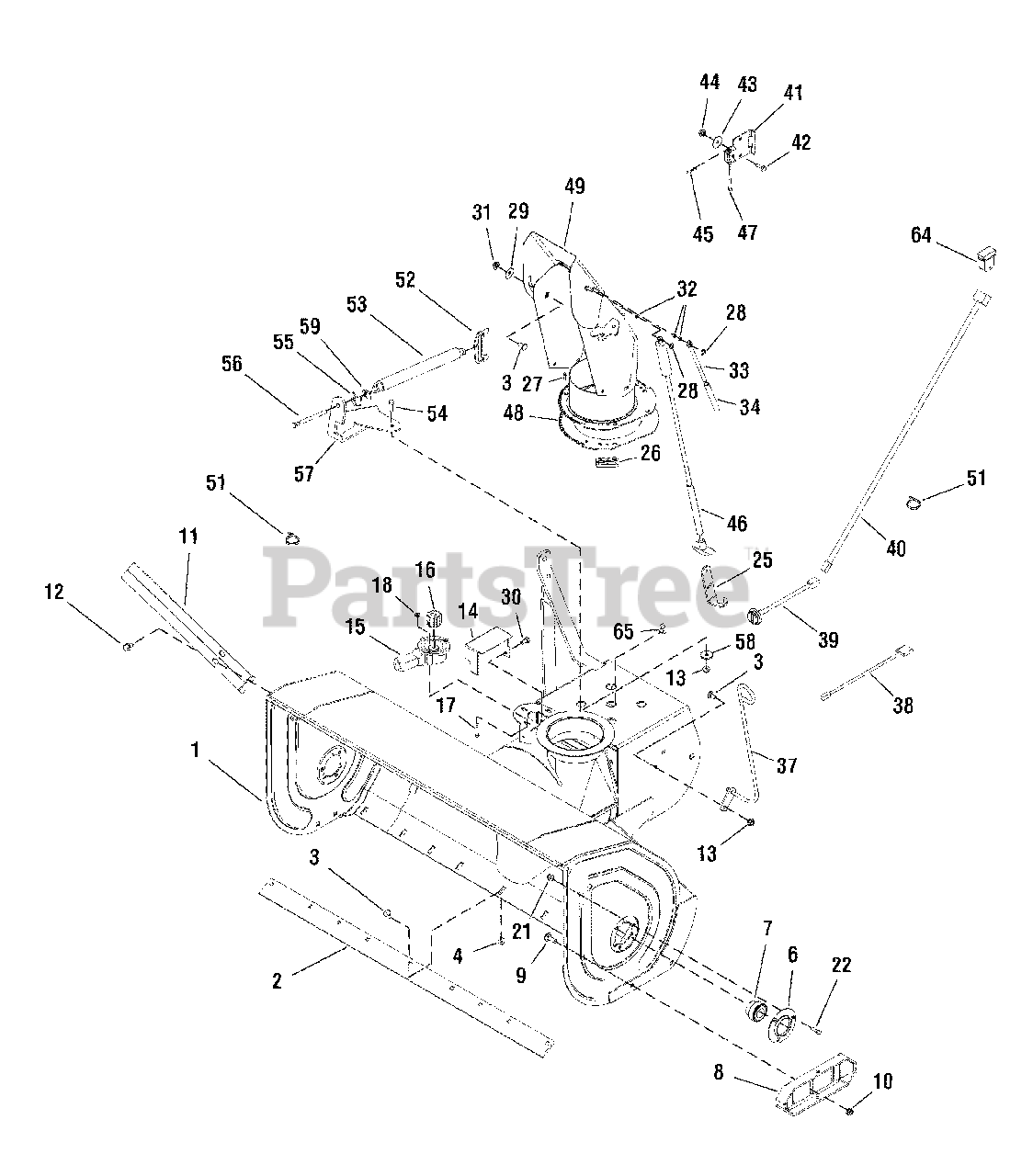

Auger Housing & Chute Group Parts Diagram

  • Title

1

Simplicity 1732272ASM

AUGER HOUSING ASSEMBLY, 42"

$

$

Not available

2

Simplicity 1723986ASM

SCRAPER BAR, 42"

$68.99

$

In Stock, only 2 left!

0

3

Simplicity 1931333SM

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

4

Simplicity 1935048SM

LOCKNUT, Flange, 5/16 - 18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 2172278ASM

BEARING, Flange

$11.99

$

In Stock, Qty 6

0

7

Simplicity 1733105SM

BEARING, Cartridge

$57.99

$

In Stock, Qty 19

0

8

Simplicity 1725747ASM

SKID SHOE
(Superseded to 1725747BMYP)

$92.99

$

In Stock, only 4 left!

0

9

Simplicity 1960702SM

BOLT, Carriage, 3/8 - 16 x 1
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

10

Simplicity 1960687SM

NUT, ESNA Flange, 3/8 - 16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 1729642ASM

DRIFT CUTTERS

$9.49

$

Usually ships in 2-12 days

0

12

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite, 5/16 - 18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1960684SM

NUT, Keps Washer, 5/16 - 18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

14

Simplicity 1733934SM

COVER, Gear
(Superseded to 1733934ASM)

$

$

Not available

15

Simplicity 1728965SM

MOTOR, Electric

$176.99

$

In Stock, Qty 8

0

16

Simplicity 1728967SM

GEAR, Pinion

$17.99

$

In Stock, only 4 left!

0

17

Simplicity 2860604SM

SCREW, Hex Washer, #10 - 24 x 1-1/4

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1960745SM

NUT, Hex Keps, #10 - 24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1931277SM

NUT, Hex Flange Whizlock, 5/16 - 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Simplicity 1925205SM

SCREW, Hex Head, 5/16 - 18 x .62
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

25

Simplicity 1726411ASM

BRACKET, Cable

$

$

Not available

26

Simplicity 1666613SM

CHUTE RETAINERS

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1960001SM

SCREW, Plastite
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 1960126SM

NUT, Push, 1/4
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

29

Simplicity 2860210SM

WASHER, Nylon

$4.49

$

In Stock, only 2 left!

0

30

Simplicity 1929000SM

SCREW, Hex Washer Head Taptite, 1/4 - 20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

31

Simplicity 1960686SM

NUT, Hex Flange ESNA, 5/16 - 18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1702219SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

33

Simplicity 1611945SM

ROD, Spring

$13.99

$

In Stock, only 1 left!

0

34

Simplicity 1611939SM

SPRING, Compression

$10.99

$

Usually ships in 2-12 days

0

37

Simplicity 1717591ASM

GUIDE ASSEMBLY, Cable

$27.99

$

In Stock, only 1 left!

0

38

Simplicity 1722735SM

HARNESS, Spout Rotator

$

$

Not available

39

Simplicity 1716987SM

HARNESS, Power Outlet

$91.99

$

Usually ships in 2-12 days

0

40

Simplicity 1732236SM

HARNESS ASSEMBLY, Chute

$73.99

$

Usually ships in 2-12 days

0

41

Simplicity 1721590ASM

BRACKET, Cable Mount

$27.99

$

In Stock, Qty 5

0

42

Simplicity 1924009SM

CAPSCREW, 1/4 - 20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

43

Simplicity 1960151SM

WASHER, Special
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

44

Simplicity 1960685SM

NUT, Hex Keps, 1/4 - 20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

45

Simplicity 1960221SM

HAIRPIN, 1/16
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

46

Simplicity 1724568SM

CABLE ASSEMBLY

$170.99

$

Usually ships in 2-12 days

0

47

Simplicity 1668344SM

PIN, Flat Head
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

48

Simplicity 1717477ASM

GEAR, Chute

$50.99

$

Usually ships in 2-12 days

0

49

Simplicity 1731437SM

CHUTE ASSEMBLY
(Superseded to 1736420AYP)

$384.99

$

Usually ships in 2-12 days

0

51

Simplicity 2825094SM

CABLE TIE
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

52

Simplicity 1724641ASM

SPRING ANCHOR

$8.49

$

In Stock, only 2 left!

0

53

Simplicity 1723412SM

SPRING

$58.99

$

In Stock, only 1 left!

0

54

Simplicity 1921333SM

CAPSCREW, 5/16 - 18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

55

Simplicity 1723499SM

RETAINER, Spring

$8.49

$

In Stock, only 2 left!

0

56

Simplicity 1722357SM

CAPSCREW, 5/16 - 18 x 4-1/2

$17.99

$

Usually ships in 2-12 days

0

57

Simplicity 1732127ASM

SPRING ANCHOR ASSEMBLY

$54.99

$

Usually ships in 2-12 days

0

58

Simplicity 1933468SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

59

Simplicity 1935255SM

NUT, Pushpal, 5/16 - 18

$3.49

$

In Stock, only 2 left!

0

64

Simplicity 1724210SM

SWITCH, Chute Control

$54.99

$

In Stock, only 1 left!

0

65

Simplicity 1715956SM

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0
