1694863 - Simplicity 44" Mower Deck 44" Mower Deck - Clutch & Support Group (987048) Parts Diagram

44" Mower Deck

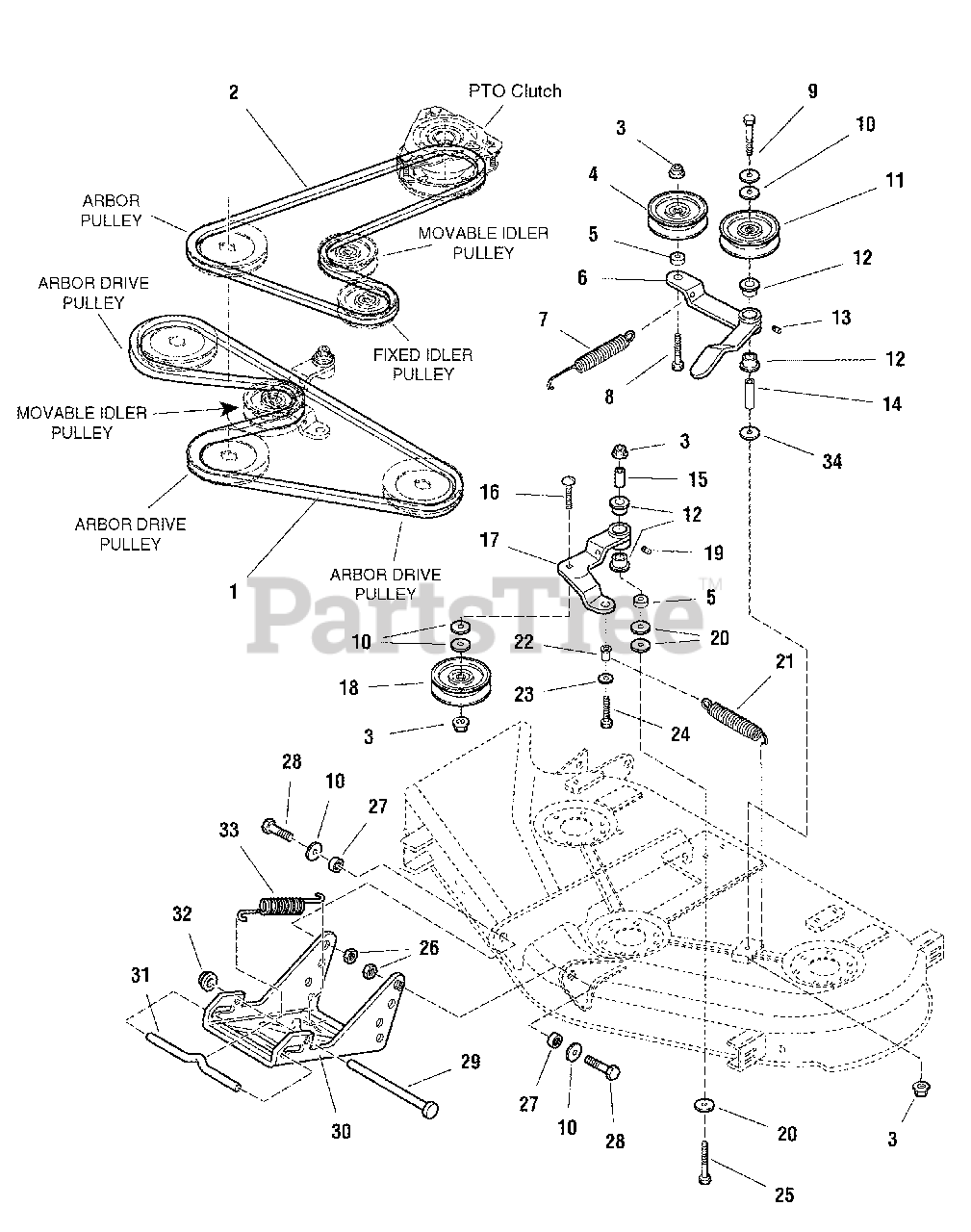

44" Mower Deck - Clutch & Support Group (987048) Parts Diagram

  • Title

1

Simplicity 1721532SM

V-BELT, Mower Deck, 44" Mower Deck

$58.99

$

In Stock, Qty 20+

0

2

Simplicity 1713549SM

V-BELT, P.T.O., 44" Mower Deck
(Superseded to 1727773SM)

$34.99

$

In Stock, only 3 left!

0

3

Simplicity 1960339SM

NUT, Hex Flange, 3/8-16

$

$

Not available

4

Simplicity 2171247SM

PULLEY, Idler

$51.99

$

In Stock, Qty 20+

0

5

Simplicity 1667811SM

SPACER, Powdered Metal

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1726814SM

LEVER & HANDLE ASSEMBLY, (Includes Ref. Nos. 12 & 13)
(Superseded to 1726815ASM)

$110.99

$

Usually ships in 2-12 days

0

7

Simplicity 1714062SM

SPRING, Extension

$

$

Not available

8

Simplicity 1931353SM

CARRIAGE BOLT, 3/8-16 x 1-3/4 G5, Black
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0

9

Simplicity 1922918SM

CAPSCREW, 3/8-16 x 3-1/4
(Superseded to 703874)

$4.49

$

In Stock, Qty 11

0

10

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1706510SM

PULLEY, Idler (Includes Ref. Nos. 12 & 13)

$32.99

$

In Stock, only 2 left!

0

12

Simplicity 1676148SM

BUSHING

$5.99

$

In Stock, Qty 20+

0

13

Simplicity 2812808SM

FITTING, Lube, 1/4-20 Tappered

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1657242SM

SPACER, Hardened

$10.99

$

In Stock, Qty 10

0

15

Simplicity 1674669SM

SPACER, Hard Case

$11.99

$

In Stock, Qty 20+

0

16

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4, G5

$4.49

$

In Stock, Qty 10

0

17

Simplicity 1718561SM

LEVER ASSEMBLY, Idler (Includes Ref. Nos. 12 & 19)

$50.99

$

Usually ships in 2-12 days

0

18

Simplicity 1724387SM

PULLEY, Idler

$35.99

$

In Stock, Qty 20+

0

19

Simplicity 2821133SM

FITTING, Lube, 1/4 Drive
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

20

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

21

Simplicity 1656936SM

SPRING, Extension

$9.99

$

In Stock, Qty 20+

0

22

Simplicity 1701159SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

23

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1933958SM

CAPSCREW, Hex Head, 1/4-20 x 1-1/6

$4.49

$

In Stock, only 1 left!

0

25

Simplicity 1921972SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/2, G5
(Superseded to 703873)

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 1919439SM

NUT, Hex Lock ESNA Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1708973SM

SPACER, Powdered Metal

$13.99

$

In Stock, only 2 left!

0

28

Simplicity 1922605SM

CAPSCREW, 3/8-16 x 1-1/4, G8
(Superseded to 703969)

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 1713578SM

ROD, Hitch, 1/2 x 7-5/8

$15.99

$

In Stock, only 1 left!

0

30

Simplicity 1727593A

HITCH

$

$

Not available

31

Simplicity 1715759SM

ROD, Latch

$7.99

$

In Stock, Qty 11

0

32

Simplicity 1960519SM

NUT, Push 1/2
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

34

Simplicity 1922755SM

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0
