1694824 - Simplicity Power Source for MB Broom Handles & Controls Group Parts Diagram

Power Source for MB Broom

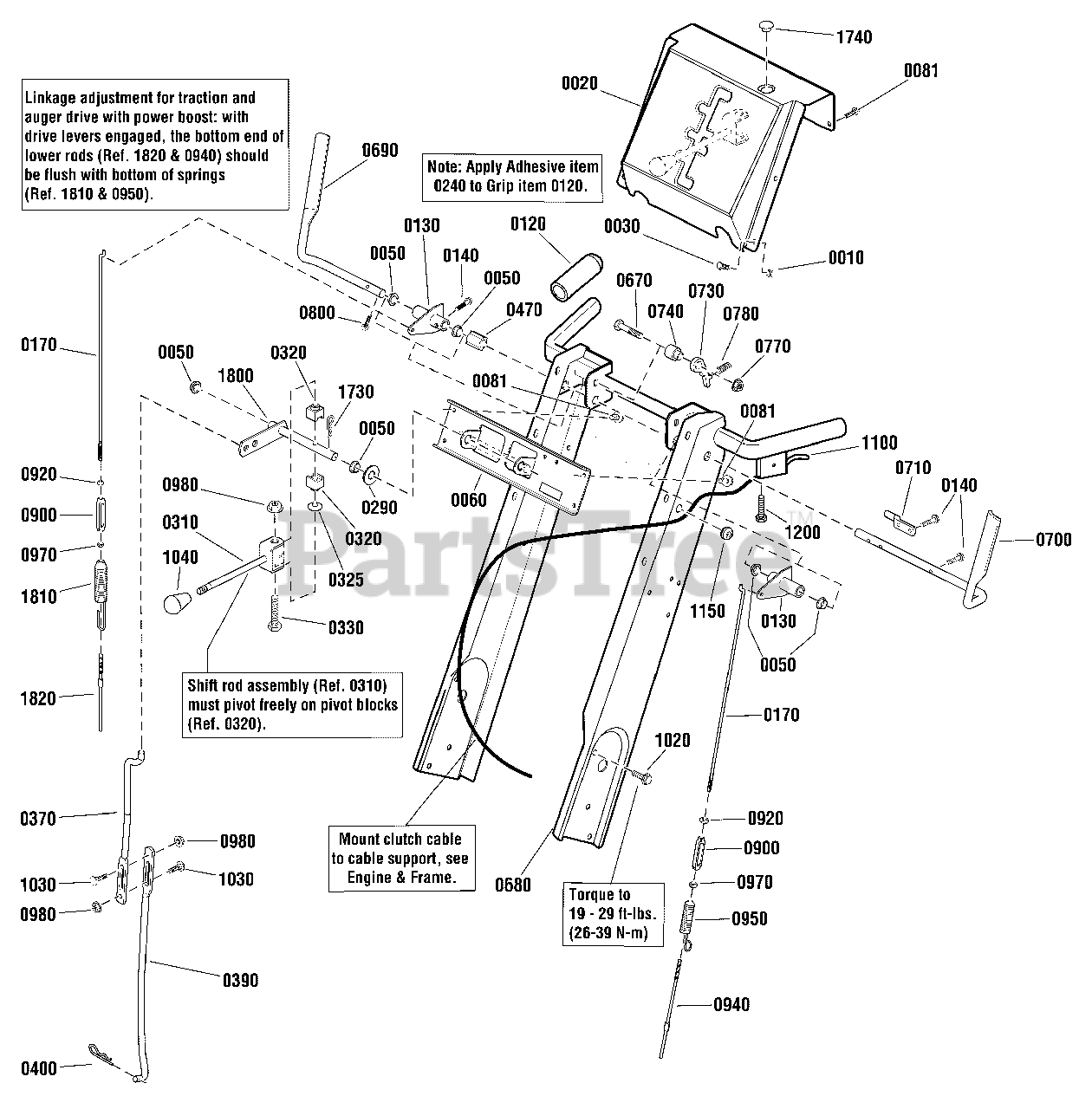

Handles & Controls Group Parts Diagram

  • Title

0010

Simplicity 1930641SM

NUT, Hex Flange, Whiz Lock Large, 1/4-20, GR5
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0020

Simplicity 1667800ZSM

DASHBOARD

$

$

Not available

0030

Simplicity 1935450SM

SCREW, Hex Flange Head Cap, 1/4 - 20 X 3/4

$4.49

$

In Stock, only 1 left!

0

0050

Simplicity 1668185SM

BUSHING, Nylon, 1/2 ID X 3/4 OD X 1/4 LG

$5.49

$

In Stock, only 1 left!

0

0060

Simplicity 1723935ASM

BRKT, Shift Control
(Superseded to 1723935BMYP)

$15.99

$

Usually ships in 2-12 days

0

0081

Simplicity 1925592SM

SCREW, Hex Washer Head Taptite, 1/4-20 X 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0120

Simplicity 1726317SM

GRIP-Black Soft, 1 Inch DIA 5 39/64 LG

$8.49

$

In Stock, only 1 left!

0

0130

Simplicity 1725205ASM

CLUTCH LEVER ASSEMBLY, Welded

$33.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1960471SM

SCREW, Hex Washer Head Taptite, 12-24 X 1

$3.49

$

In Stock, only 1 left!

0

0170

Simplicity 1668121SM

ROD, Engagement, 5/32 DIA 17 3/16 LG, 10-24

$30.99

$

Usually ships in 2-12 days

0

0240

ADHESIVE, Loctite #410 Black Thick Gel

Note: (Referenced, Not Shown)

$

$

Not available

0290

Simplicity 1924361SM

WASHER, Flat, 17/32 ID X 1 1/4 OD X 5/64 THK
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0310

Simplicity 1714120SM

SCHIFT ROD & CLEVIS ASSEMBLY
(Superseded to 703053)

$38.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1668524SM

BLOCK, Pivot, 3/4 X 3/4 X 53/64 HI
(Superseded to 703050)

$13.99

$

Usually ships in 2-12 days

0

0325

Simplicity 1668681SM

WASHER, Curved, 33/64 ID X 1 OD X 9/64 TH
(Superseded to 703051)

$6.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1960705SM

SCREW, Hex Flange Whiz Lock, 1/4-20 X 2 1/4

$2.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1726304SM

ROD, 3/8 DIA X 11 3/8 LG

$

$

Not available

0390

Simplicity 1666255SM

ROD, Shift, 3/8 DIA X 15 5/16 LG

$51.99

$

In Stock, Qty 5

0

0400

Simplicity 1722460SM

PIN, Quick, 5/16 X 1 3/16 LG
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0470

Simplicity 1705899SM

GUIDE, Metal Control Plate, 7/16 WD
(Superseded to 703213)

$8.49

$

In Stock, only 1 left!

0

0670

Simplicity 1933689SM

SCREW, Hex Flange Whiz Lock, 5/16-18 X 1 1/2

$4.49

$

Usually ships in 2-12 days

0

0680

Simplicity 1729359

CHANNEL HANDLE ASSEMBLY
(Superseded to 1729855CSM)

$

$

Not available

0690

Simplicity 1727128SM

HANDLE, Clutch RH Formed

$40.99

$

Usually ships in 2-12 days

0

0700

Simplicity 1727127SM

HANDLE, Clutch LH Formed

$45.99

$

Usually ships in 2-12 days

0

0710

Simplicity 1677453SM

ROD, Control Flat Plate, 3/8 DIA 2 13/16

$8.99

$

Usually ships in 2-12 days

0

0730

Simplicity 1705898SM

LATCH, Control Plate
(Superseded to 703214)

$9.49

$

Usually ships in 2-12 days

0

0740

Simplicity 1678579SM

SPACER, 21/ 64 ID X 13/16 OD X 15/16 LG
(Superseded to 703049)

$6.99

$

Usually ships in 2-12 days

0

0770

Simplicity 1960686SM

NUT, Nylock Flange, 5/16-18 GR F
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0780

Simplicity 1701342SM

SPRING, Compression, 3/8 ID X 1 LG
(Superseded to 1750475YP)

$4.49

$

Usually ships in 2-12 days

0

0800

Simplicity 1928732SM

SCREW, Hex Washer Head Taptite 10-24 X 1
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

0900

Simplicity 2108775SM

TURNBUCKLE, 10-24NC (LH&RH) X 2 1/4 LG

$

$

Not available

0920

Simplicity 2828704SM

NUT, Hex 10-24

$5.99

$

In Stock, only 1 left!

0

0940

Simplicity 1668526SM

ROD, Clutch, 5/32 DIA 6 5/16 LG 10-24

$

$

Not available

0950

Simplicity 1707452SM

SPRING, Extension 39/64 OD

$14.99

$

In Stock, only 2 left!

0

0970

Simplicity 1916621SM

NUT, Hex, 10-24

$3.49

$

In Stock, Qty 11

0

0980

Simplicity 1960685SM

BOLT, Carriage, 1/4-20 X 3/4 GR5
(Superseded to 703061)

$3.49

$

In Stock, Qty 12

0

1020

Simplicity 1960729SM

SCREW, Hex Head Serrated Flange Tapping 5/16-18 X 1

$3.49

$

Usually ships in 2-12 days

0

1030

Simplicity 1931317SM

BOLT, Carriage, 1/4-20 X 3/4
(Superseded to 703101)

$3.99

$

Usually ships in 2-12 days

0

1040

Simplicity 1713844SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

1100

Simplicity 1718791SM

HANDLE & CABLE ASSEMBLY

$70.99

$

Usually ships in 2-12 days

0

1150

Simplicity 1664022SM

GROMMET, 1/2 DIA X 1/8 WD Groove 9/32 H

$4.49

$

Usually ships in 2-12 days

0

1200

Simplicity 1725702SM

SCREW, Pan Head Torx Thead Cutting, #10 X 1/2

$5.49

$

Usually ships in 2-12 days

0

1730

Simplicity 1960074SM

PIN, Hair, 3/32 X 1 39/64
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

1740

Simplicity 1724489SM

PLUG, Plastic Button, 7/16

$3.49

$

Usually ships in 2-12 days

0

1800

Simplicity 1674567SM

ROD & PIVOT ARM ASSEMBLY
(Superseded to 703052)

$39.99

$

Usually ships in 2-12 days

0

1810

Simplicity 1669323SM

SPRING, Extension, 3/4 X 3 27/64 LG

$36.99

$

Usually ships in 2-12 days

0

1820

Simplicity 1668525SM

ROD, Clutch, 5/32 DIA X 3 31/64 LG 10-24

$6.99

$

In Stock, only 2 left!

0
