1694824 - Simplicity Power Source for MB Broom Engine & Frame Group Parts Diagram

Power Source for MB Broom

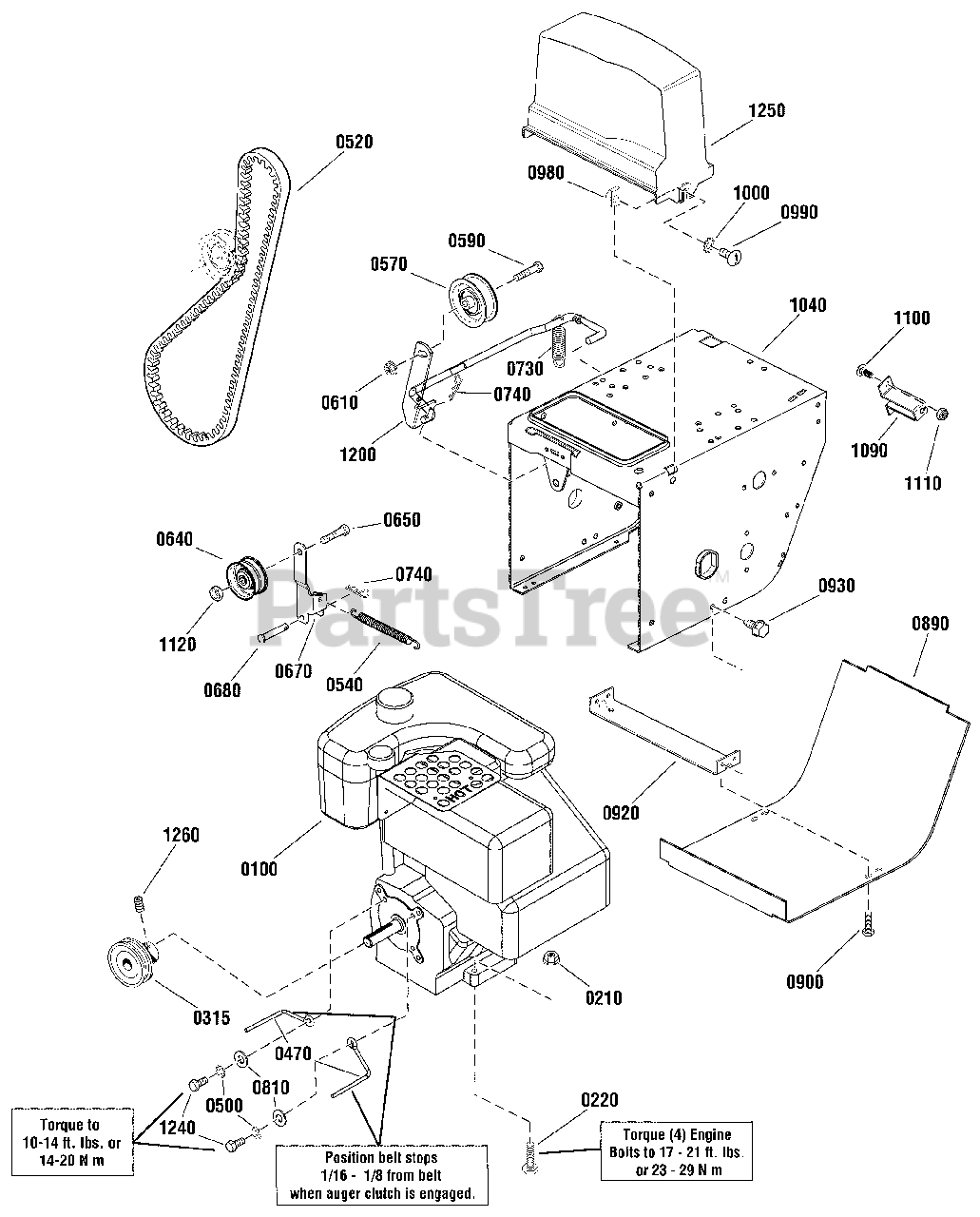

Engine & Frame Group Parts Diagram

  • Title

0100

Simplicity PH-951501

*ENGINE, 9.0HP KOHLER

Note: (Models Series: PH-951501)

$

$

Not available

0210

Simplicity 2831277SM

NUT, Flange, 5/16-18, GR5

$3.49

$

Usually ships in 2-12 days

0

0220

Simplicity 704288

SCREW, Hex Head Cap, 5/16-18 X 1 3/4, GR5

$4.99

$

Usually ships in 2-12 days

0

0315

Simplicity 1676493SM

PULLEY, Double 2 1/4 & 2 3/4 OD, 1 ID, 2 1/8 WD

$95.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1727786SM

STOP, Belt

$6.49

$

Usually ships in 2-12 days

0

0500

Simplicity 1917356SM

LOCKWASHER, Split, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0520

Simplicity 1676461SM

V-BELT, 3L

$24.99

$

In Stock, only 1 left!

0

0540

Simplicity 1727149SM

SPRING, Extension, 3/4 OD X 5 53/64
(Superseded to 703146)

$

$

Not available

0570

Simplicity 1726348SM

PULLEY, Idler 2 3/4

$24.99

$

In Stock, only 4 left!

0

0590

Simplicity 2860709SM

BOLT, Flange Lock, 3/8-16 X 1 3/4
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

0610

Simplicity 1928352SM

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

0640

Simplicity 1668477SM

PULLER, Idler With Bearing, 2 1/4 OD, 3/8 ID

$23.99

$

In Stock, Qty 20+

0

0650

Simplicity 1960647SM

SCREW, Thin Hex Head, 3/8-16 X 1 1/2

$7.49

$

Usually ships in 2-12 days

0

0670

Simplicity 1703046ASM

ARM, Idler

$10.99

$

Usually ships in 2-12 days

0

0680

Simplicity 1665994SM

PIN, Clevis, Flat Drilled, 5/16 X 1 3/4
(Superseded to 703145)

$3.99

$

In Stock, only 3 left!

0

0730

Simplicity 1724503SM

SPRING, Extension, 23/32 X 12 1/2 LG

$20.99

$

In Stock, Qty 6

0

0740

Simplicity 1722460SM

PIN, Quick, 5/64 X 1 3/16 LG
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0810

Simplicity 1919326SM

WSHR, Flat, 11/32 X 3/4 X 1/16

$4.49

$

In Stock, Qty 6

0

0890

Simplicity 706523

COVER, Bottom

$98.99

$

Usually ships in 2-12 days

0

0900

Simplicity 1925003SM

SCREW Hex Head Taptite, 1/4-20 X 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

0920

Simplicity 1727004ASM

SUPPORT, Tie Bar
(Superseded to 1727004BMYP)

$14.99

$

Usually ships in 2-12 days

0

0930

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 X 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0980

Simplicity 1935255SM

NUT, Speed, Lug Type 5/16-18

$3.49

$

In Stock, only 2 left!

0

0990

Simplicity 1918249SM

SCREW, Truss Head Slotted, 5/16-18 X 3/4

$4.99

$

Usually ships in 2-12 days

0

1000

Simplicity 2820426SM

LOCKWASHER, External Tooth 5/16

$4.49

$

In Stock, only 1 left!

0

1040

Simplicity 706524

FRAME

$

$

Not available

1090

Simplicity 1720404ASM

SUPPORT, Clutch Cable
(Superseded to 1720404BMYP)

$12.99

$

Usually ships in 2-12 days

0

1100

Simplicity 1931317SM

BOLT, Carriage 1/4-20 X 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

1110

Simplicity 1960685SM

NUT, Keps 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

1120

Simplicity 1928731SM

NUT, Hex Toplock Jam, 3/8-16

$4.99

$

In Stock, only 1 left!

0

1200

Simplicity 1727058SM

CLUTCH ROD & BRAKE ARM ASSEMBLY, With Pad
(Superseded to 1729646BMYP)

$117.99

$

Usually ships in 2-12 days

0

1200

Simplicity 1727058ASM

CLUTCH ROD & BRAKE ARM ASSEMBLY, With Pad
(Superseded to 1729646BMYP)

$117.99

$

Usually ships in 2-12 days

0

1240

Simplicity 1921515SM

SCREW, Hex Head Cap, 5/16-24 X 3/4

$3.99

$

Usually ships in 2-12 days

0

1250

Simplicity 1724630

COVER, Belt Sweeper Notched

$

$

Not available

1260

Simplicity 1930540SM

SCREW, Set Square Head Cup Point, 5/16-18X 5/8, G8

$4.49

$

In Stock, Qty 10

0
