1694799 - Simplicity Regent Lawn Tractor, 18hp Transmission Group - Tuff Torq K46AA Parts Diagram

Regent Lawn Tractor, 18hp

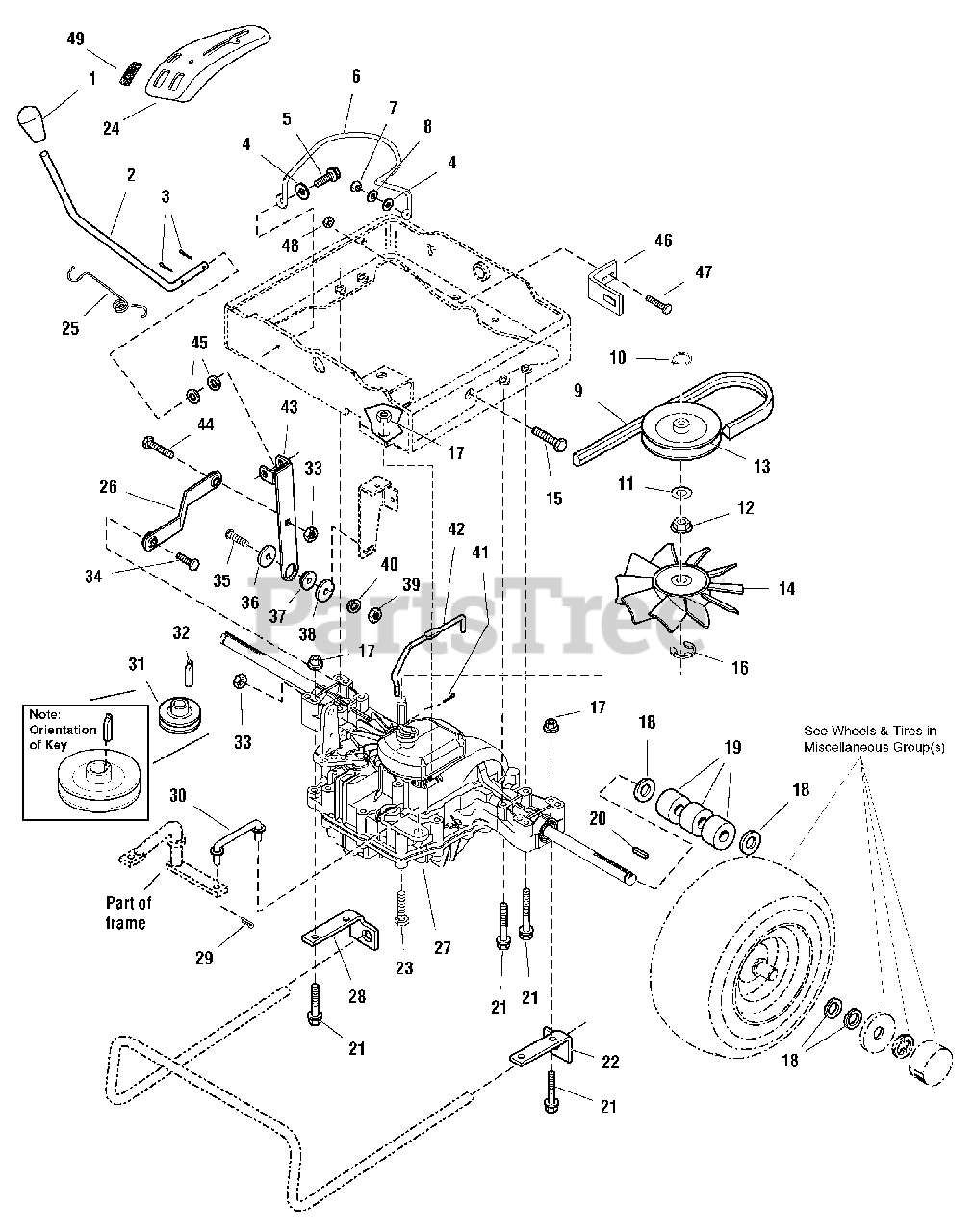

Transmission Group - Tuff Torq K46AA Parts Diagram

  • Title

1

Simplicity 1713843SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 1724547SM

ROD

$245.99

$

Usually ships in 2-12 days

0

3

Simplicity 1918451SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 6

0

5

Simplicity 1960541SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 1721007SM

STOP, Bel

$

$

Not available

7

Simplicity 1917372SM

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1721130SM

V-BELT

$54.99

$

In Stock, only 1 left!

0

10

SNAP RING

$

$

Not available

11

LOCKWASHER

$

$

Not available

12

SPLINE COLLAR

$

$

Not available

13

PULLEY

$

$

Not available

14

FAN

$

$

Not available

15

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

16

E RING

$

$

Not available

17

Simplicity 1927557SM

NUT, Hex Flange Whizlock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 2860202SM

WASHER

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1717451SM

SPACER

$12.99

$

Usually ships in 2-12 days

0

20

Simplicity 1717749SM

KEY
(Superseded to 021553MA)

$4.99

$

In Stock, only 2 left!

0

21

Simplicity 2860551SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 1717427A

ANCHOR, Torsion Bar LH

$

$

Not available

23

Simplicity 1960585SM

CAPSCREW, Hex Head Flange Whizlock, 5/16-18 x 1-3/4

$5.49

$

Usually ships in 2-12 days

0

24

Simplicity 1724504SM

POD, Control Pod

$

$

Not available

25

Simplicity 1721041SM

SPRING

$9.99

$

Usually ships in 2-12 days

0

26

Simplicity 1724232SM

LINK, Transmission

$27.99

$

Usually ships in 2-12 days

0

27

Simplicity 1721021SM

TRANSMISSION ASSEMBLY

$1071.99

$

Usually ships in 2-12 days

0

28

Simplicity 1717428A

ANCHOR, Torsion Bar RH

$

$

Not available

29

Simplicity 1918448SM

PIN, Cotter

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 1720998SM

ROD

$14.99

$

Usually ships in 2-12 days

0

31

Simplicity 1723497SM

PULLEY & HUB ASSEMBLY

$155.99

$

Usually ships in 2-12 days

0

32

Simplicity 2171241SM

KEY, Hi-Pro

$5.99

$

Usually ships in 2-12 days

0

33

Simplicity 1935048SM

NUT, Hex Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

35

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

36

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

37

Simplicity 2108717SM

SPACER

$17.99

$

In Stock, only 1 left!

0

38

Simplicity 1960534SM

WASHER

$

$

Not available

39

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

41

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 1721005SM

ROD

$12.99

$

Usually ships in 2-12 days

0

43

Simplicity 1724233SM

LEVER & CLEVIS ASSEMBLY

$35.99

$

Usually ships in 2-12 days

0

44

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

45

Simplicity 1924359SM

WASHER

$2.49

$

Usually ships in 2-12 days

0

46

Simplicity 1726750ASM

BRACKET, Switch

$5.49

$

Usually ships in 2-12 days

0

47

Simplicity 1960252SM

CARRIAGE BOLT, 1/4-20 X 5/8

$3.99

$

In Stock, only 1 left!

0

48

Simplicity 1960694SM

NUT, Flange, Nylon 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

49

Simplicity 1709188SM

PLUG

$4.99

$

In Stock, only 1 left!

0
