1694770 - Simplicity 48" Mower Deck 48" & 52" Mower Deck - Pulleys, Belts & Idler Arm (1975PB0) Parts Diagram

48" Mower Deck

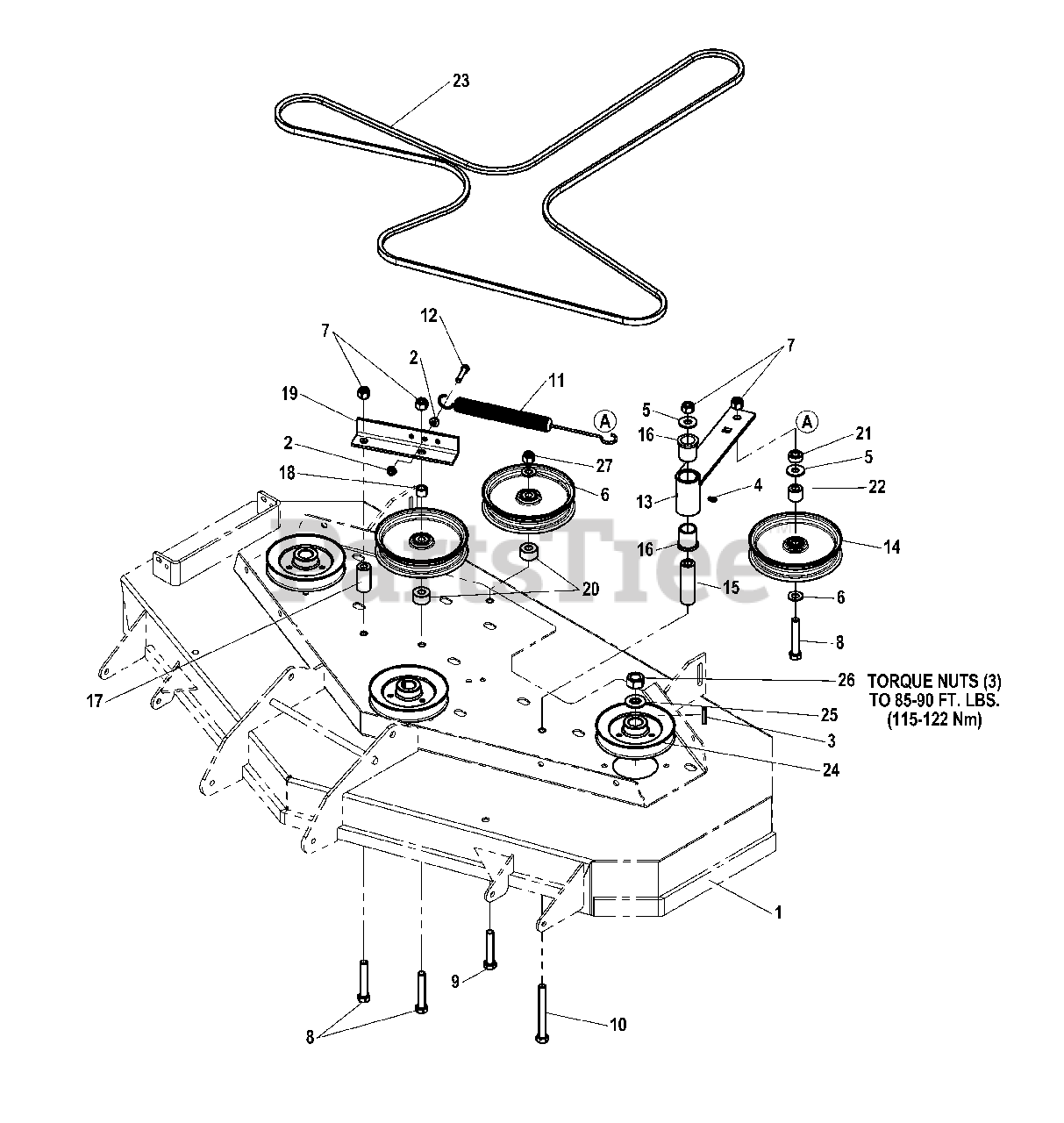

48" & 52" Mower Deck - Pulleys, Belts & Idler Arm (1975PB0) Parts Diagram

  • Title

1

MOWER DECK

$

$

Not available

2

Simplicity 1931277SM

NUT, 5/16-18 Hex Small Serrated Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 5050407X5SM

KEY, 1/4 SQ. X 1-1/4

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5020095SM

GREASE FITTING

$3.99

$

In Stock, only 3 left!

0

5

Simplicity 5025150SM

WASHER, 1/2" USS

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 8

0

7

Simplicity 5025056SM

NUT, 1/2-13 Hex Nylon Lock
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

8

Simplicity 5025017X28SM

BOLT, 1/2-13 x 3-1/4

$5.99

$

In Stock, only 2 left!

0

9

Simplicity 5025018X20SM

BOLT, 1/2-20 x 2-1/2

$6.99

$

In Stock, only 1 left!

0

10

Simplicity 505025422

BOLT, 1/2-13 X 4-3/4

$

$

Not available

11

Simplicity 5023340SM

SPRING, Extension, Swivel End

$36.99

$

In Stock, only 1 left!

0

12

Simplicity 5025011X12SM

BOLT, 5/16-18 x 1-1/2
(Superseded to 5025055X12SM)

$3.99

$

In Stock, only 2 left!

0

13

Simplicity 5407343YP

ASSM, IDLER ARM - BLK - 5407039A (SV)

Note: (Includes bushings and grease fittings.)

$

$

Not available

14

Simplicity 5103800YP

*PULLEY, FLAT IDLER, 6-3/4"

Note: *If not present, order 5025158SM - washer and 5101103SM - shield.

$54.99

$

In Stock, Qty 5

0

15

Simplicity 5061339SM

SPACER, .52 X 1.00 X 3.42

$13.99

$

Usually ships in 2-12 days

0

16

Simplicity 5021541SM

BUSHING, Flange

$9.99

$

In Stock, Qty 18

0

17

Simplicity 5043607

SPACER, .50 X 1.00 X 2.00
(Superseded to 5043607SM)

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 5047027SM

SPACER, .51 X .75 X .56

$5.49

$

In Stock, Qty 20+

0

19

Simplicity 5049874CSM

ANCHOR, SPRING
(Superseded to 5402555CSM)

$13.99

$

Usually ships in 2-12 days

0

20

Simplicity 5047142SM

SPACER, .52 X 1.25 X .70

$8.99

$

In Stock, Qty 8

0

21

Simplicity 5045023SM

SPACER, .52 X 1.00 X .44

$6.49

$

In Stock, only 1 left!

0

22

Simplicity 5044673SM

SPACER, .52 X 1.00 X .88

$8.99

$

In Stock, only 1 left!

0

23

Simplicity 5023297SM

BELT, 48" DECK

$109.99

$

Usually ships in 2-12 days

0

23

Simplicity 5104065YP

BELT, 5V, 160.60"EL, LRG ARAMID, WRP, RC

$148.99

$

In Stock, only 1 left!

0

24

Simplicity 5023175SM

PULLEY, 5.540OB X 3985ID, SINGLE B-SEC (48" Deck)

$67.99

$

In Stock, Qty 17

0

24

Simplicity 5023178SM

PULLEY, Spindle, 6.12" (52" Deck)

$71.99

$

In Stock, only 2 left!

0

25

Simplicity 5025406SM

WASHER, 3/4" Belleville (Included with Complete Spindle Assembly)
(Superseded to 770223)

$4.49

$

In Stock, only 4 left!

0

26

Simplicity 5025405SM

NUT, 3/4-16 Hex (Included with Complete Spindle Assembly)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 5025098SM

NUT, 1/2-20 Hex Nylon Lock

$5.99

$

In Stock, only 2 left!

0
