1694770 - Simplicity 48" Mower Deck 48" & 52" Mower Deck - Housing, Cover, Spindle & Blade (1975HC0) Parts Diagram

48" Mower Deck

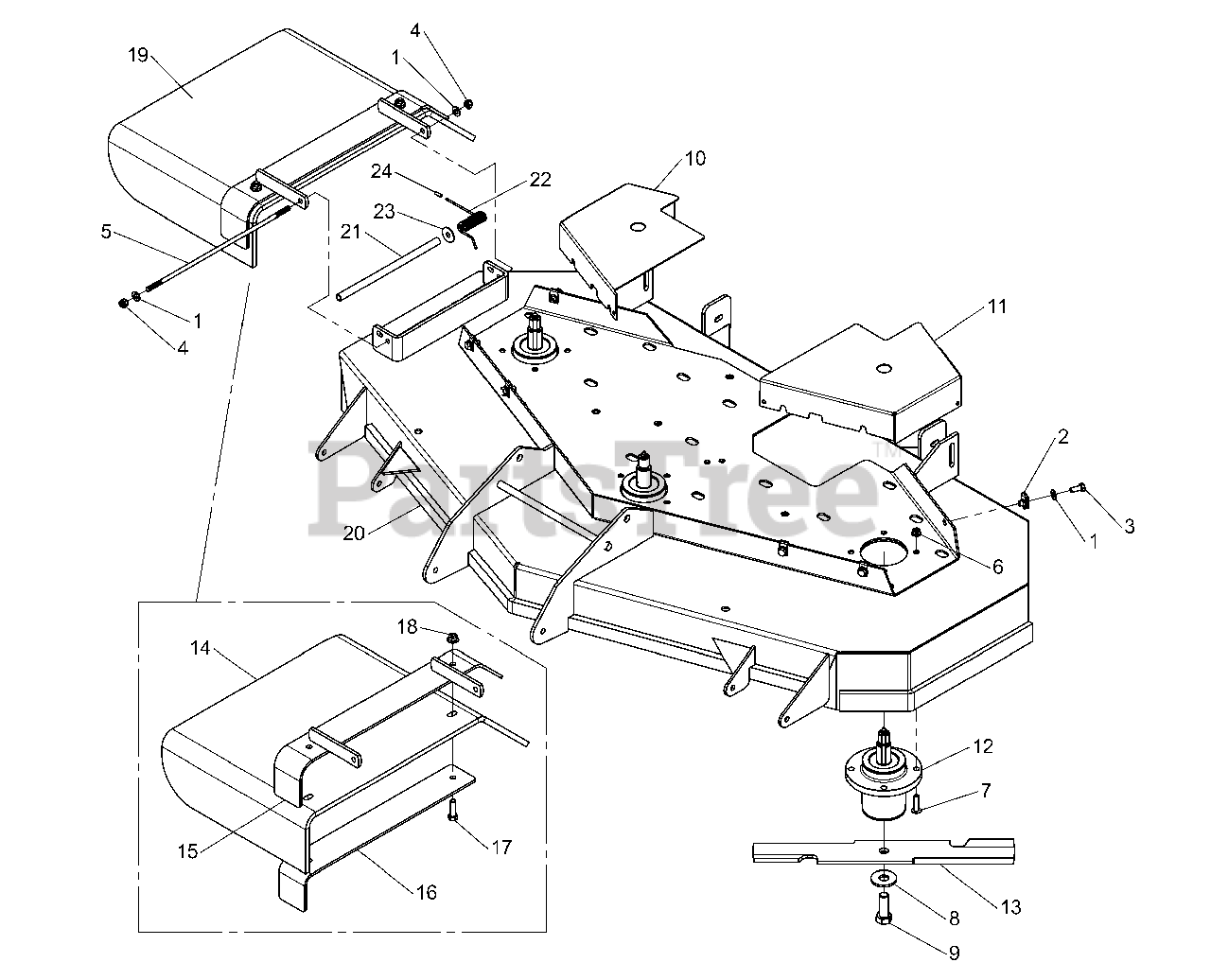

48" & 52" Mower Deck - Housing, Cover, Spindle & Blade (1975HC0) Parts Diagram

  • Title

1

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

2

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, Qty 5

0

3

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 5025045SM

NUT 5/16-24 Hex Nylon Lock

$3.49

$

In Stock, Qty 11

0

5

Simplicity 5042555SM

ROD, Linkage

$10.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025392SM

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 5023156SM

BOLT, Flange Head, 5/16-18 x 1-1/4

$3.99

$

In Stock, only 1 left!

0

8

Simplicity 5025159SM

WASHER, 5/8" USS
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 13

0

9

Simplicity 5025320X14SM

BOLT, 5/8-11 X 1-3/4"
(Superseded to 770136)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 5049881CSM

GUARD, 48" DECK - RH

$23.99

$

Usually ships in 2-12 days

0

10

Simplicity 5061810CSM

GUARD, 52" DECK - RH

$48.99

$

Usually ships in 2-12 days

0

11

Simplicity 5049882CSM

GUARD, 48" DECK - LH

$

$

Not available

11

Simplicity 5061811CSM

GUARD, 52" DECK - LH

$50.99

$

Usually ships in 2-12 days

0

12

Simplicity 5061095SM

SPINDLE ASSEMBLY, Complete (See Spindle Service Parts group)

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

13

Simplicity 5020843ASM

MOWER BLADE, 16-1/4" (48" deck)

$24.99

$

In Stock, only 4 left!

0

13

Simplicity 5021227ASM

MOWER BLADE, 18" (52" Deck)

$25.99

$

In Stock, only 1 left!

0

14

Simplicity 5100524SM

RUBBER CHUTE
(Superseded to 5402404SM)

$170.99

$

Usually ships in 2-12 days

0

15

Simplicity 5413404AYP

WELD, FRAME CHUTE, 44/48/52 - BLK

$68.99

$

In Stock, only 1 left!

0

16

Simplicity 5402362A

SUPPORT, DISCHARGE CHUTE, 48/52 - BLK
(Superseded to 5402362AFS)

$35.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4"

$3.99

$

In Stock, Qty 12

0

18

Simplicity 5025394SM

NUT, 3/8-16 Hex Nylock Flange

$4.49

$

In Stock, Qty 20+

0

19

NO LONGER AVAILABLE - ORDER INDIVIDUAL REPLACEMENT PARTS

Note: (Includes Ref No. 15 - 19)

$

$

Not available

20

Simplicity 5300030SM

MOWER DECK ASSEMBLY, 48"

Note: (Includes safety decals)

$1196.99

$

Usually ships in 2-12 days

0

20

Simplicity 5300031SM

MOWER DECK ASSEMBLY, 52"

Note: (Includes safety decals)

$2051.99

$

Usually ships in 2-12 days

0

21

Simplicity 5050086X8SM

TORSION SPRING SPACER

$8.99

$

Usually ships in 2-12 days

0

22

Simplicity 5023385SM

TORSION SPRING

$8.49

$

Usually ships in 2-12 days

0

23

Simplicity 5025164SM

WASHER, 5/16" Fender

$3.99

$

In Stock, only 1 left!

0

24

Simplicity 5023489SM

CAP

$3.99

$

Usually ships in 2-12 days

0
