1694768 - Simplicity Citation Zero-Turn Mower, 23hp Briggs & Stratton Parking Brake Group (197PBR0) Parts Diagram

Citation Zero-Turn Mower, 23hp Briggs & Stratton

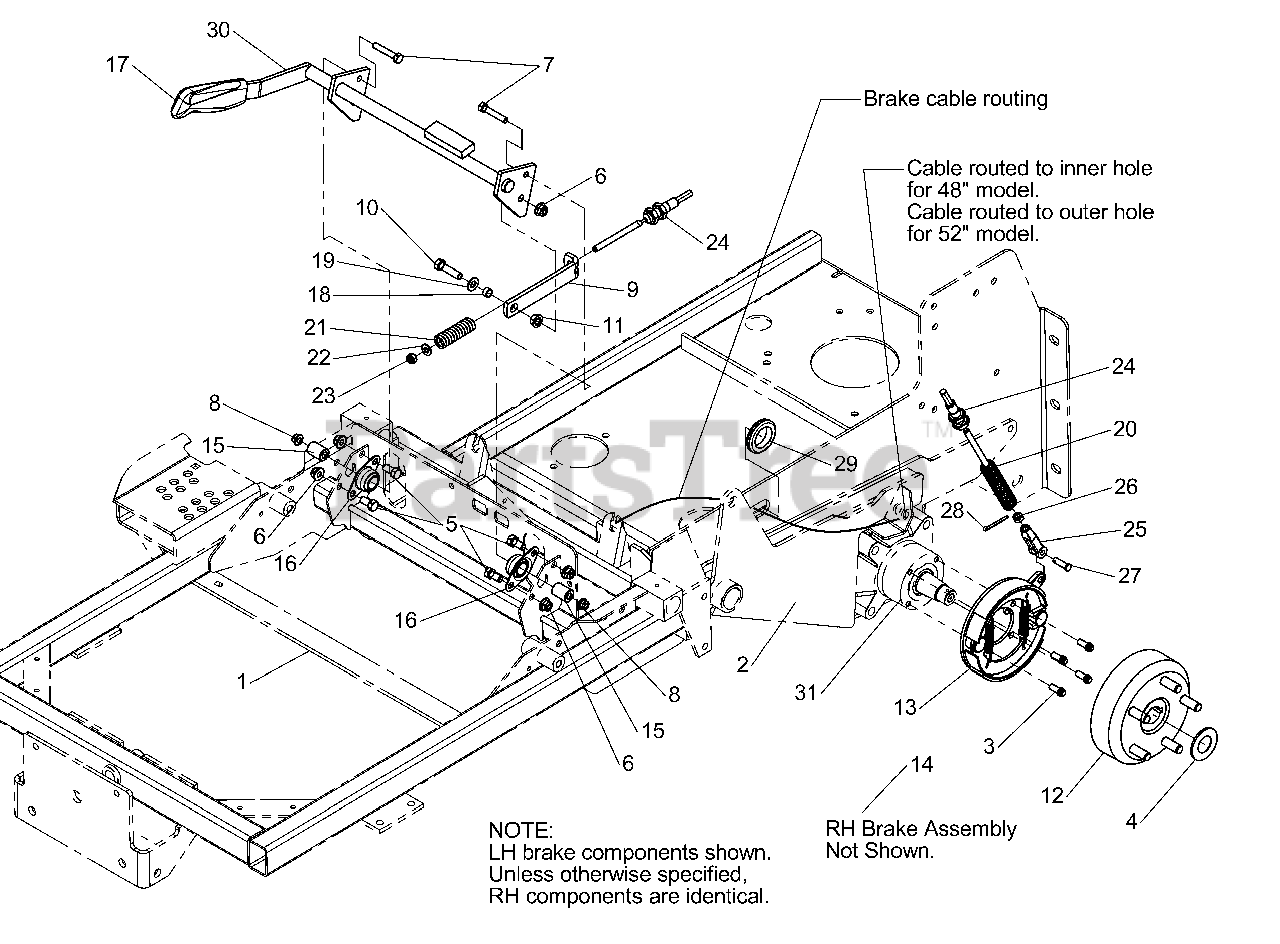

Parking Brake Group (197PBR0) Parts Diagram

  • Title

1

MAIN FRAME (See Main Frame Group)

$

$

Not available

2

MOTOR MOUNT (See Rear Suspension Group)

$

$

Not available

3

Simplicity 5023490SM

BOLT, 5/16-18 X 3/4" 12 Point Flange

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5023249SM

WASHER, 1 x 2

$6.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025013X6SM

BOLT, 3/8-16 X 3/4"

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025394SM

NUT, 3/8-16 Hex Nylock Flange

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025011X14SM

BOLT, 5/16-18 X 1-3/4"

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 5025392SM

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 5061794A

LINK, BRAKE STOP, 6.0 - BLK
(Superseded to 5061794AYP)

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1-1/2"

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025128SM

NUT, 3/8-16 Hex Serrated Flange

$3.49

$

In Stock, only 2 left!

0

12

Simplicity 5102896

BRAKE DRUM, 6", 5 BOLT, KNOTT
(Superseded to 5102896YP)

$225.99

$

Usually ships in 2-12 days

0

13

Simplicity 5023500

BRAKE ASSEMBLY, LH
(Superseded to 5023500SM)

Note: (S/N: 2015208611 & Below)

$271.99

$

Usually ships in 2-12 days

0

14

Simplicity 5023501

BRAKE ASSEMBLY, RH
(Superseded to 5023501SM)

Note: (Not Shown - S/N: 2015208611 & Below)

$271.99

$

In Stock, only 1 left!

0

15

Simplicity 5045404SM

SPACER, .32 X .75 X 1.06

$7.49

$

Usually ships in 2-12 days

0

16

Simplicity 5021098SM

BEARING, Flange

$13.99

$

In Stock, Qty 5

0

17

Simplicity 1722302SM

GRIP

$8.49

$

In Stock, Qty 10

0

18

Simplicity 5041930SM

SPACER, .38 X .50 X .27

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025156SM

WASHER, 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

20

Simplicity 5023320SM

SPRING, Compression

$8.49

$

In Stock, only 1 left!

0

21

Simplicity 5022361SM

SPRING, Compression

$9.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

23

Simplicity 5025045SM

NUT, 5/16-24 Hex Nylon Lock

$3.49

$

In Stock, Qty 11

0

24

Simplicity 5023324SM

PARKING BRAKE CABLE

$81.99

$

Usually ships in 2-12 days

0

25

Simplicity 5020979SM

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

26

Simplicity 5025033SM

NUT, 5/16-24 Hex
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 5025213X8SM

CLEVIS PIN, 5/16" X 1"

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025203X10SM

COTTER PIN, 1/8" X 1-1/4"

$3.99

$

In Stock, only 1 left!

0

29

Simplicity 5021397SM

GROMMET, 1-1/4"

$6.49

$

Usually ships in 2-12 days

0

30

Simplicity 5049831CSM

BRAKE SHAFT
(Superseded to 5403631CSM)

$49.99

$

Usually ships in 2-12 days

0

31

WHEEL MOTOR (See Hydraulic Group)

$

$

Not available
