1694765 - Simplicity 61" Mower Deck 61" Mower Deck - Rear Mount Bars (42356rm0) Parts Diagram

61" Mower Deck

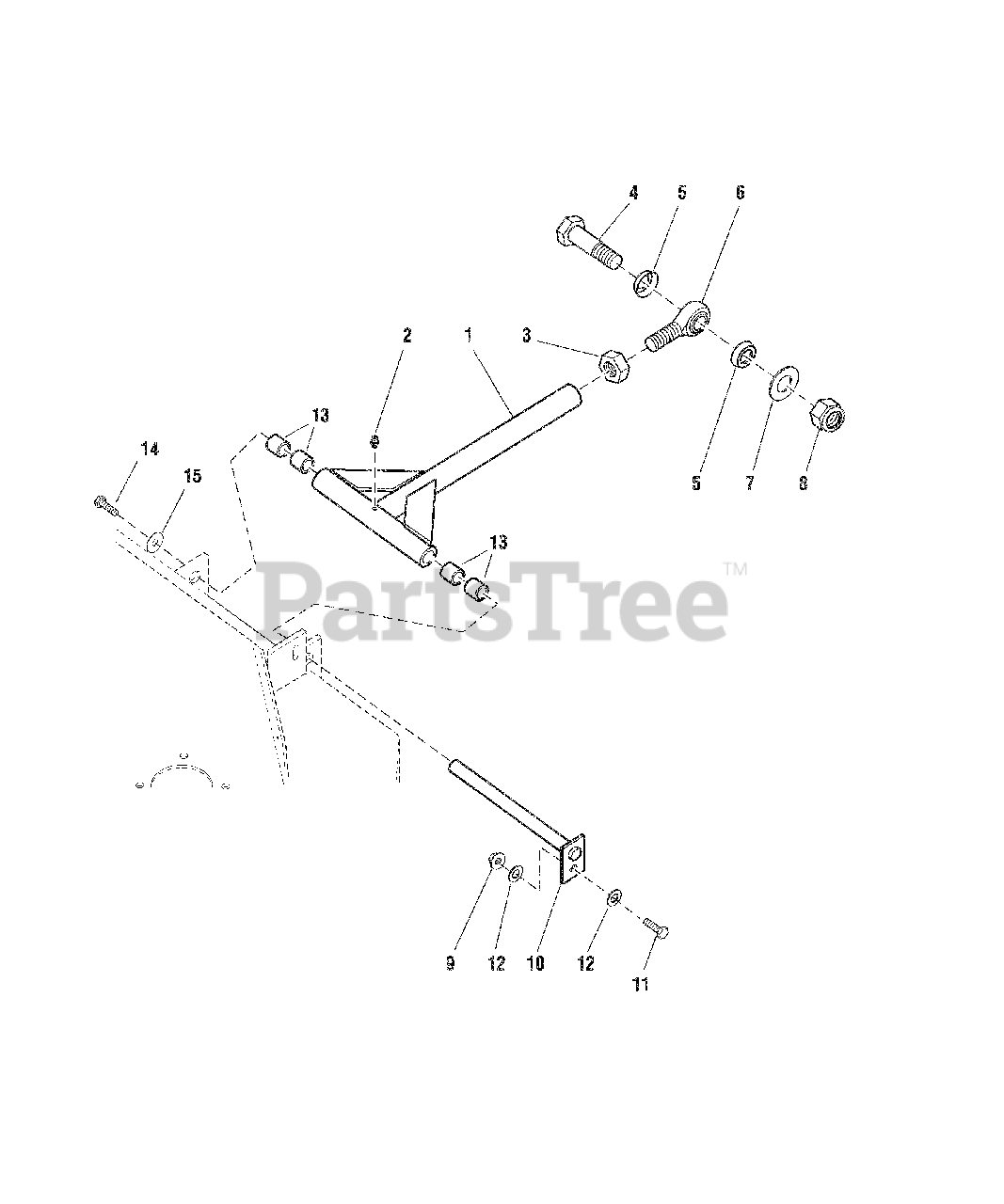

61" Mower Deck - Rear Mount Bars (42356rm0) Parts Diagram

  • Title

1

Simplicity 5045009CSM

PUSHER BAR ASSEMBLY

$202.99

$

Usually ships in 2-12 days

0

2

Simplicity 5020095SM

GREASE FITTING

$3.99

$

In Stock, only 3 left!

0

3

Simplicity 5025093SM

NUT, 3/4-16 Hex Jam

$4.49

$

In Stock, only 1 left!

0

4

Simplicity 5025265X24SM

BOLT, 3/4-16 x 3

$13.99

$

In Stock, only 2 left!

0

5

Simplicity 5022111SM

ROD END SEAL

$15.99

$

In Stock, Qty 8

0

6

Simplicity 5022039SM

BALL JOINT, 3/4-16 Male

$37.99

$

In Stock, Qty 13

0

7

Simplicity 5025160SM

WASHER, 3/4" SAE

$3.99

$

In Stock, Qty 5

0

8

Simplicity 5025284SM

NUT, 3/4-16 Hex Nylon Lock

$3.49

$

In Stock, only 3 left!

0

9

Simplicity 5025096SM

NUT, 3/8-16 Hex Nylon Lock

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 5045037SM

WELD, DECK MOUNT SHAF
(Superseded to 5045037CSM)

$

$

Not available

11

Simplicity 5025013X10SM

BOLT, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 12

0

12

Simplicity 5025156SM

WASHER, 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

13

Simplicity 5023344SM

BUSHING

$9.49

$

Usually ships in 2-12 days

0

14

Simplicity 5025013X8

BOLT, 3/8-16 X 1 GD5 YZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

15

Simplicity 5100548

WASHER, .390 X 1.50 X .109 YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0
