1694764 - Simplicity Stallion Zero-Turn Mower, 27hp Kohler Lift Group (4235dlt0) Parts Diagram

Stallion Zero-Turn Mower, 27hp Kohler

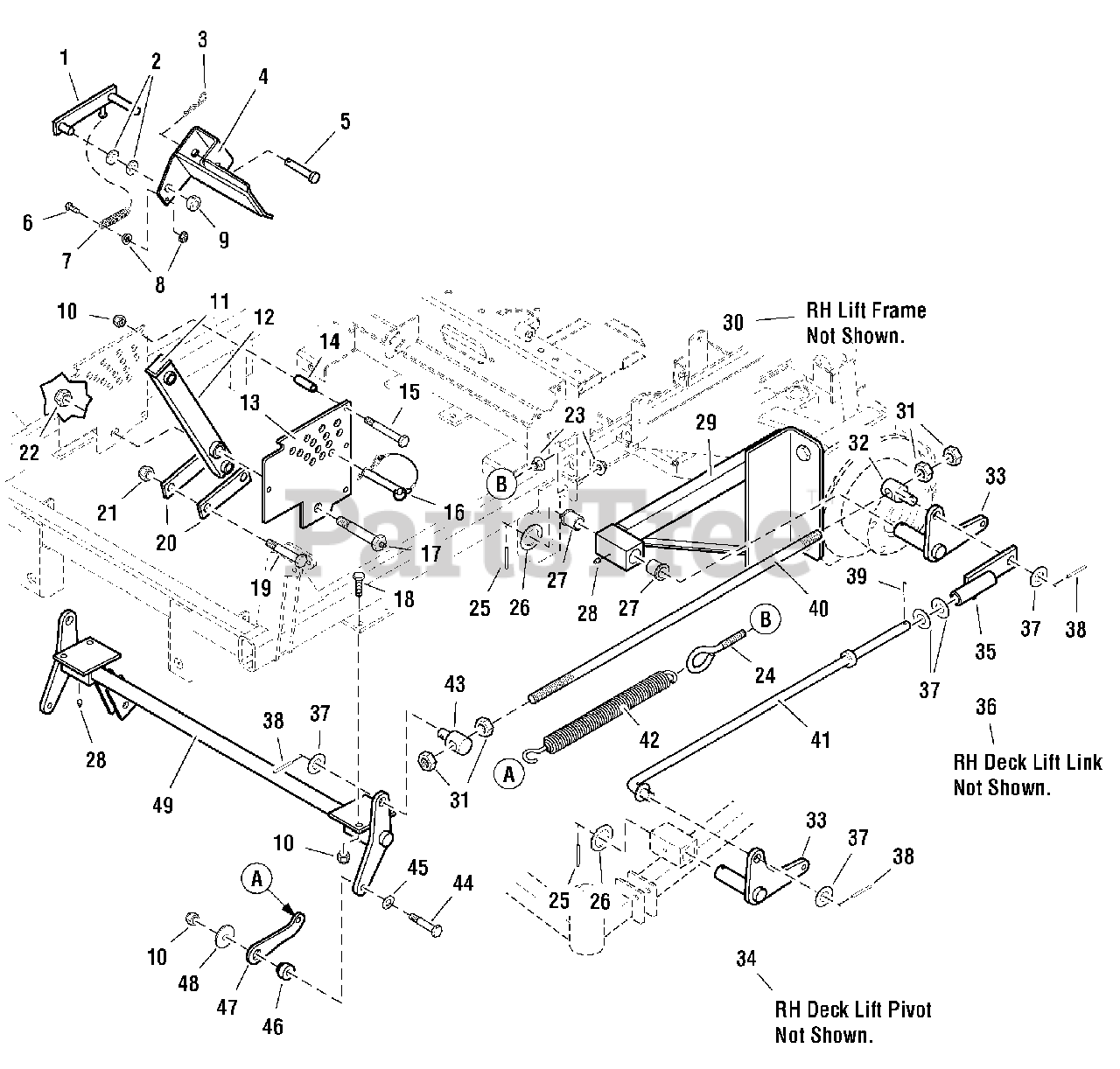

Lift Group (4235dlt0) Parts Diagram

  • Title
1

Simplicity 5061232C

DECK LIFT LOCK

$

$

Not available

2

Simplicity 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 12

0

3

Simplicity 1918196SM

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 5044875SM

SAFETY WALK, 4.50 X 3.50
(Superseded to 5101008SM)

$7.49

$

Usually ships in 2-12 days

0

4

Simplicity 5045058CSM

DECK LIFT PEDAL

$92.99

$

Usually ships in 2-12 days

0

5

Simplicity 5022044SM

PIN, Clevis, 1/2 x 2-1/2

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 5025010X6SM

BOLT, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 5020639SM

SPRING, Extension

$31.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025126SM

NUT, 1/4-20 Hex Serrated Flange
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

9

Simplicity 5023241SM

COLLAR, Split, 1/2

$16.99

$

In Stock, only 1 left!

0

10

Simplicity 5025096SM

NUT, 3/8-16 Hex Nylon Lock

$3.49

$

In Stock, Qty 20+

0

$2.99

$

Usually ships in 2-12 days

0

12

Simplicity 5044987CSM

ARM, Deck Lift Pivot

$39.99

$

Usually ships in 2-12 days

0

13

Simplicity 5061307C

DECK HEIGHT PLATE

$

$

Not available

14

Simplicity 5044992SM

SPACER, .38 x .50 x 1.56

$5.99

$

In Stock, only 2 left!

0

15

Simplicity 5025013X22SM

BOLT, 3/8-16 x 2-3/4

$4.49

$

In Stock, only 3 left!

0

16

Simplicity 5023082SM

PIN, 1/2 x 3-1/2 w/ Lanyard

$22.99

$

Usually ships in 2-12 days

0

17

Simplicity 5044993SM

LIFT PIVOT BOLT

$31.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025013X10SM

BOLT, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 12

0

19

Simplicity 5025018X24SM

BOLT, 1/2-20 x 3

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 5044994CSM

DECK LIFT LINK

$6.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025098SM

NUT, 1/2-20 Hex Nylon Lock

$5.99

$

In Stock, only 2 left!

0

22

Simplicity 5025282SM

NUT, 5/8-11 Hex Jam Nylon Lock

$

$

Not available

23

Simplicity 5025128SM

NUT, 3/8-16 Hex Serrated Flange

$3.49

$

In Stock, only 2 left!

0

24

Simplicity 5025417

EYEBOLT, 3/8-16 x 1-1/2
(Superseded to 5025417YP)

$5.49

$

Usually ships in 2-12 days

0

25

Simplicity 5025516SM

PIN, Roll, 3/16 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

$11.99

$

Usually ships in 2-12 days

0

27

Simplicity 5023343SM

BUSHING, Flange

$6.49

$

Usually ships in 2-12 days

0

28

Simplicity 5020095SM

GREASE FITTING

$3.99

$

In Stock, only 2 left!

0

29

Simplicity 5061319C

LIFT FRAME ASSEMBLY - LH, Complete

$

$

Not available

30

Simplicity 5061318C

LIFT FRAME ASSEMBLY - RH, Complete

$

$

Not available

31

Simplicity 5025040SM

NUT, 5/8-11 Hex

$3.49

$

In Stock, Qty 6

0

32

Simplicity 5047446SM

SPRING ROD PIVOT

$21.99

$

Usually ships in 2-12 days

0

33

Simplicity 5045449CSM

DECK LIFT PIVOT - LH

$

$

Not available

34

Simplicity 5045450CSM

DECK LIFT PIVOT - RH

$

$

Not available

35

Simplicity 5047522CSM

DECK LIFT LINK - LH

$

$

Not available

36

Simplicity 5047523CSM

DECK LIFT LINK - RH

$

$

Not available

37

Simplicity 5025281SM

WASHER, 5/8" SAE

$3.99

$

In Stock, Qty 8

0

38

Simplicity 5022366SM

PIN, Spring, 3/16 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

39

Simplicity 5025316SM

PIN, Roll, 3/16 x 3/4

$

$

Not available

40

Simplicity 5061304SM

DECK ADJUSTMENT ROD

$17.99

$

Usually ships in 2-12 days

0

41

Simplicity 5047761SM

DECK LIFT ROD

$

$

Not available

42

Simplicity 5023355SM

DECK LIFT SPRING

$49.99

$

Usually ships in 2-12 days

0

43

Simplicity 5045447SM

SPRING ROD PIVOT

$25.99

$

Usually ships in 2-12 days

0

44

Simplicity 5025013X16SM

BOLT, 3/8-16 x 2

$4.49

$

In Stock, Qty 6

0

45

Simplicity 5025156SM

WASHER, 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

46

Simplicity 5061227SM

DECK PIVOT BUSHING

$13.99

$

Usually ships in 2-12 days

0

47

Simplicity 5061224C

SPRING LINK

$

$

Not available

48

Simplicity 5025326SM

WASHER, 3/8 x 2

$4.49

$

Usually ships in 2-12 days

0

49

Simplicity 5061222CSM

DECK LIFT SHAFT & MOUNT ASSEMBLY

$199.99

$

Usually ships in 2-12 days

0
