1694763 - Simplicity Stallion Zero-Turn Mower, 25hp Kohler Engine Group - PTO (4235epg) Parts Diagram

Stallion Zero-Turn Mower, 25hp Kohler

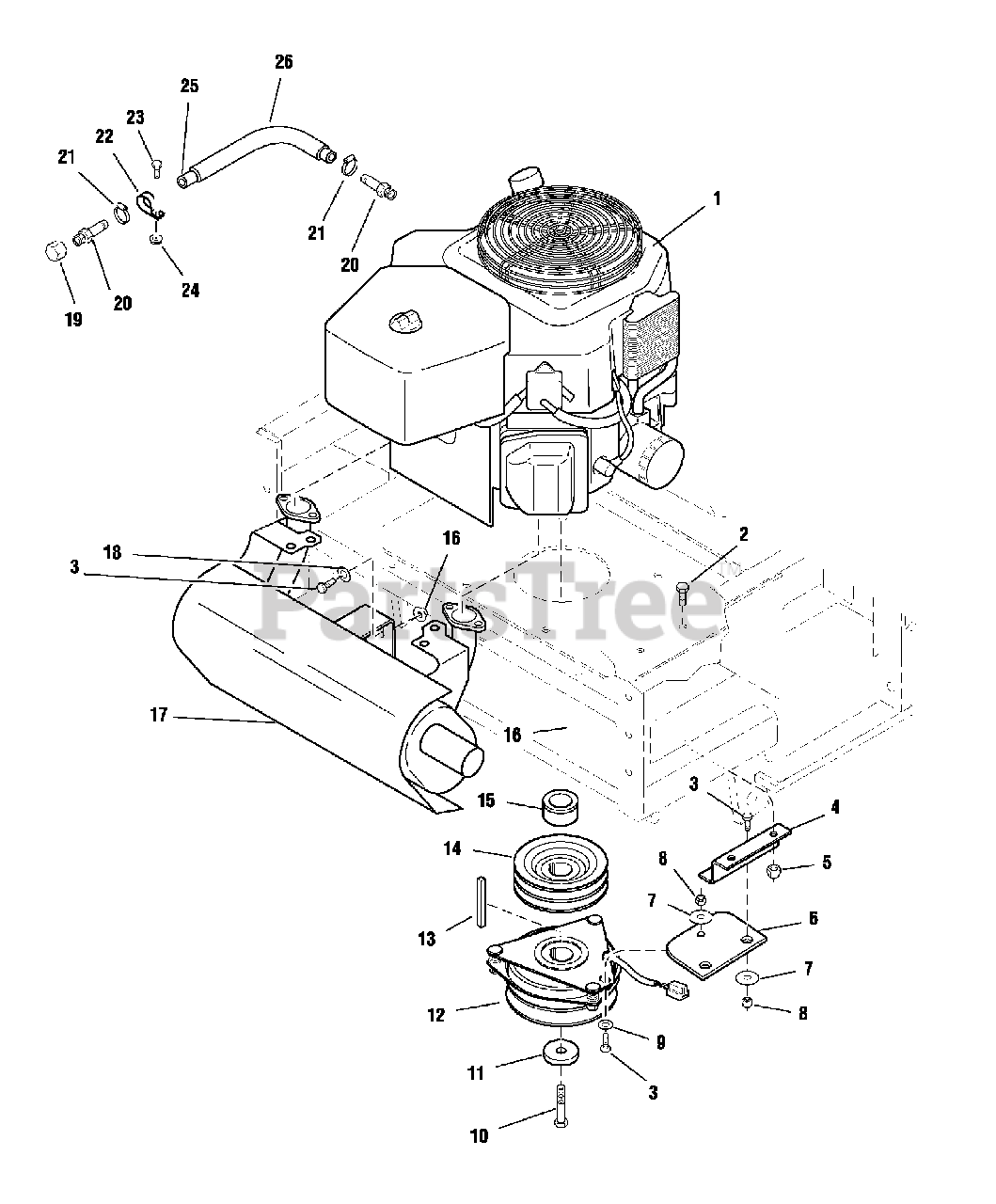

Engine Group - PTO (4235epg) Parts Diagram

  • Title

1

Simplicity 5022961

ENGINE, 25HP Kohler

$

$

Not available

1

Simplicity 5023235

ENGINE, 27HP Kohler

$

$

Not available

1

Simplicity 50211441

OIL FILTER

$

$

Not available

1

Simplicity 5021178X3SM

FUEL FILTER

$

$

Not available

1

PRE-CLEANER

$

$

Not available

1

AIR FILTER

$

$

Not available

2

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, Qty 6

0

3

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, only 4 left!

0

4

Simplicity 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 5043636SM

PAD, Clutch Anchor

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025165SM

WASHER, Fender, 5/16

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

10

Simplicity 5102861SM

CRANKSHAFT BOLT, 7/16 x 1-3/4

$

$

Not available

11

Simplicity 5045475SM

SPACER, .45 x 1.88 x .38

$14.99

$

In Stock, only 1 left!

0

12

Simplicity 5023232SM

ELECTRIC CLUTCH

$744.99

$

Usually ships in 2-12 days

0

13

Simplicity 5050407X28SM

KEY, 1/4 Sq. x 3 - 1/2" " LONG

$

$

Not available

14

Simplicity 5047075SM

CRANKSHAFT PULLEY

$137.99

$

Usually ships in 2-12 days

0

15

Simplicity 5047033SM

SPACER, 1.13 x 1.75 x 1.03

$13.99

$

Usually ships in 2-12 days

0

16

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

17

Simplicity 5400275SM

MUFFLER
(Superseded to 5101275SM)

$329.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

19

Simplicity 5021466SM

CAP, 3/8NPT

$6.49

$

Usually ships in 2-12 days

0

20

Simplicity 5021372SM

FITTING, 3/8NPT - 1/2 Str.

$15.99

$

Usually ships in 2-12 days

0

21

Simplicity 5021392SM

HOSE CLAMP

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 5021500SM

CLAMP, Vinyl

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025010X6SM

CAPSCREW, Hex Hd, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 5025126SM

NUT, Hex, Serrated Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

25

Simplicity 5050857X13SM

HOSE, 13"

$8.49

$

Usually ships in 2-12 days

0

26

Simplicity 5050862X12SM

WIRE LOOM, 12"

$4.49

$

Usually ships in 2-12 days

0
