1694757 - Snapper Hitch & Tubes for Triple Bag Grass Catcher Hitch & Tube Group Parts Diagram

Hitch & Tubes for Triple Bag Grass Catcher

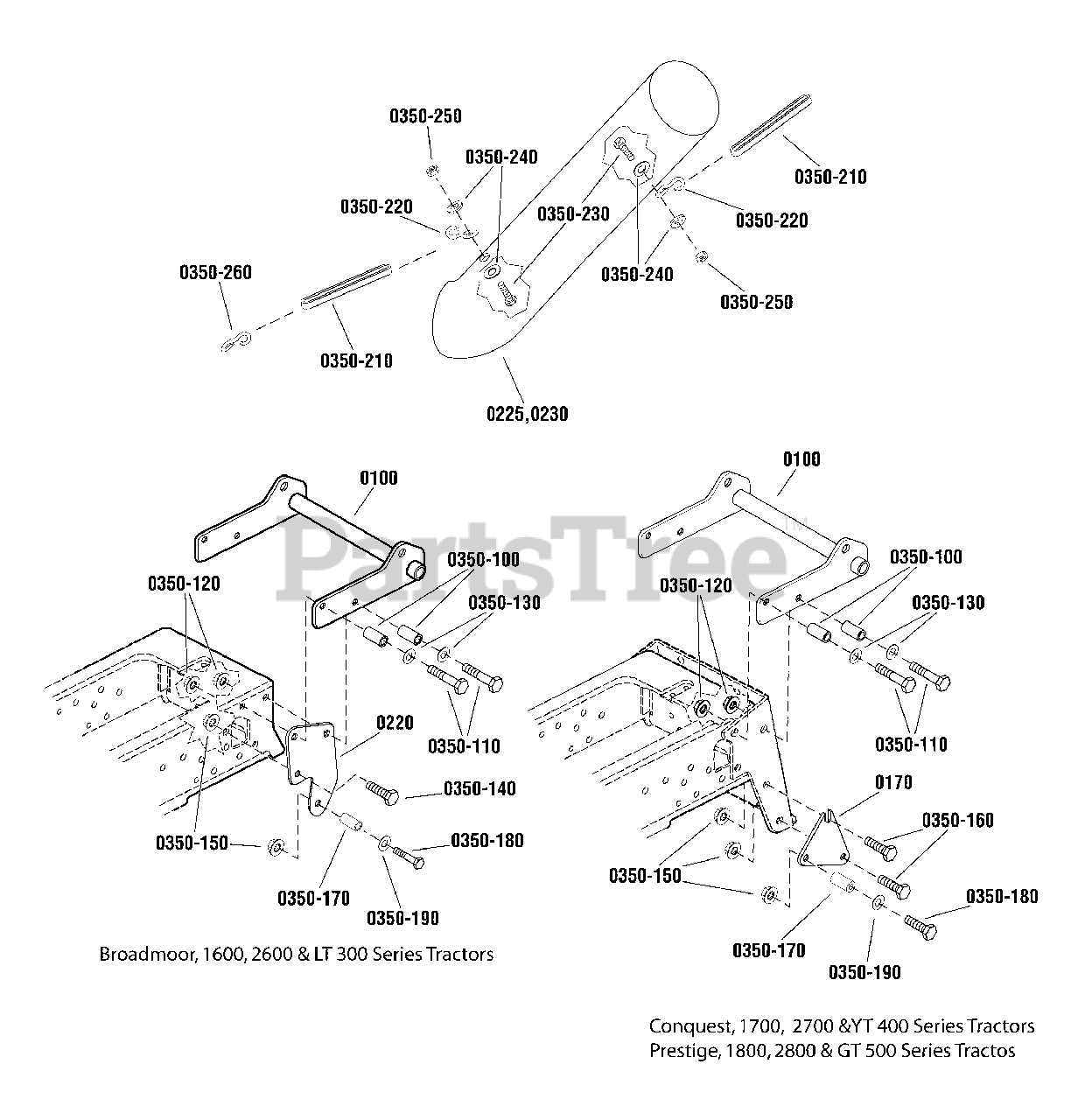

Hitch & Tube Group Parts Diagram

  • Title
0100

Snapper 1723106A

HITCH ASSEMBLY
(Superseded to 1723106ASM)

$149.99

$

Usually ships in 2-12 days

0

0170

Snapper 1723092A

PLATE, Lower
(Superseded to 1723092ASM)

$27.99

$

Usually ships in 2-12 days

0

220

Snapper 1732814A

PLATE, Slide
(Superseded to 1732814ASM)

$10.99

$

Usually ships in 2-12 days

0

0225

Snapper 1717072

TUBE, Lower, (for 54" Models)
(Superseded to 1717072SM)

$188.99

$

Usually ships in 2-12 days

0

0230

Snapper 1723166

TUBE, Lower, (for 44" & 50" Models)
(Superseded to 1723166SM)

$103.99

$

Usually ships in 2-12 days

0

--

Snapper 1660906

*HARDWARE BAG

Note: * Not a sevicable part, order parts seperately

$

$

Not available

0350-100

Snapper 1671260

SPACER
(Superseded to 703450)

$8.49

$

Usually ships in 2-12 days

0

0350-110

Snapper 1960462

CAPSCREW, Hex Head, 1/2-13 x 2-1/2
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

0350-120

Snapper 1960355

NUT, Hex Lock ESNA, 1/2-13
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

0350-130

Snapper 1924361

WASHER
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0350-140

Snapper 1921210

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

0350-150

Snapper 1928352

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

0350-160

Snapper 1920415

CAPSCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

0350-170

Snapper 1676088

SPACER
(Superseded to 1676088SM)

$11.99

$

Usually ships in 2-12 days

0

0350-180

Snapper 1922130

CAPSCREW, Hex Head, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

0350-190

Snapper 1919384

WASHER
(Superseded to 1919384SM)

$5.49

$

In Stock, only 1 left!

0

0350-210

Snapper 2172744

STRAP, Rubber, Black
(Superseded to 2172744SM)

$18.99

$

Usually ships in 2-12 days

0

0350-220

Snapper 1723168

HOOK
(Superseded to 1723168SM)

$9.99

$

Usually ships in 2-12 days

0

0350-230

Snapper 1924009

CAPSCREW, Hex Head, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

0350-240

Snapper 1921319

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0350-250

Snapper 1920397

NUT, Hex Lock ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0350-260

Snapper 1672689

HOOK-S
(Superseded to 1672689SM)

$31.99

$

Usually ships in 2-12 days

0
