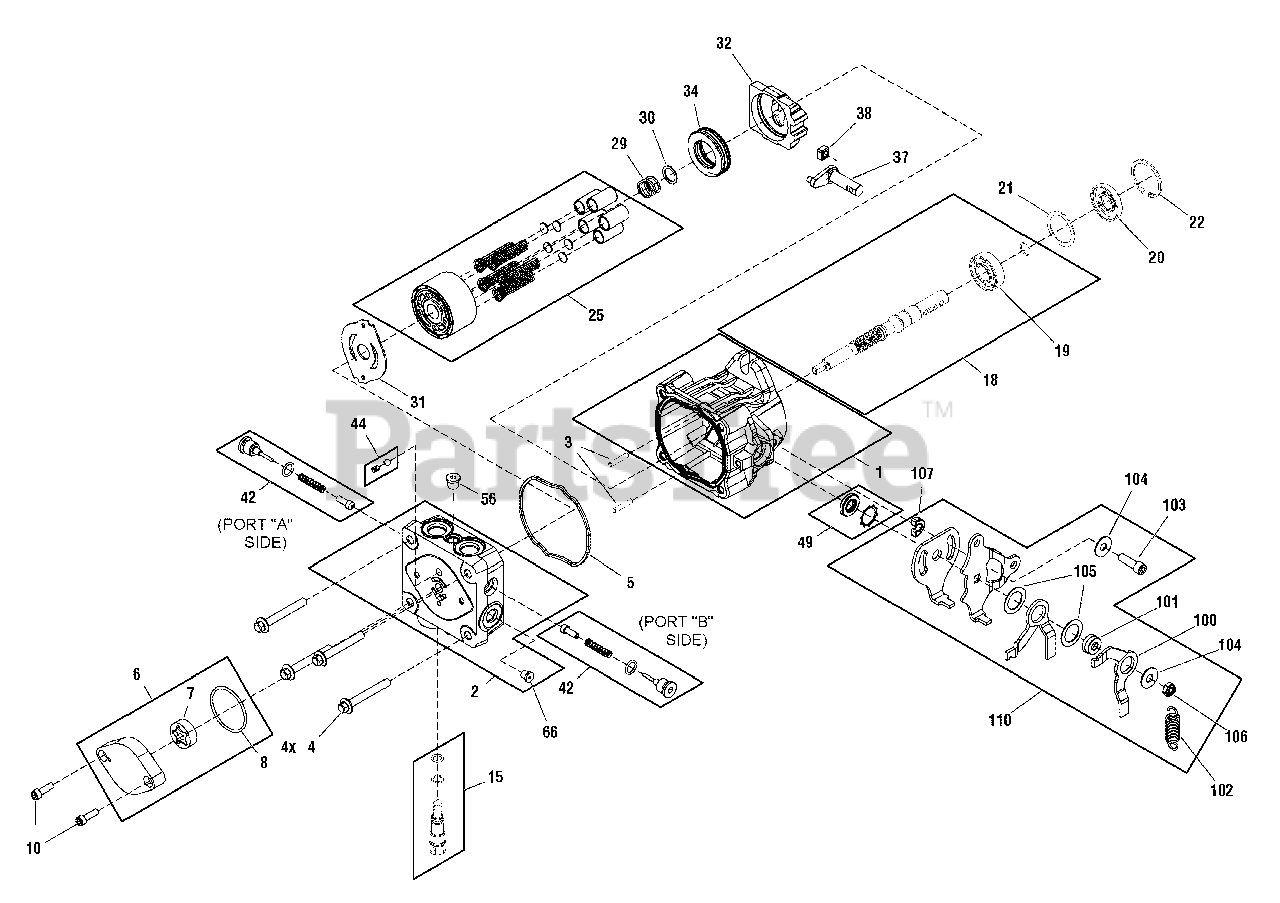

1694744 - Massey Ferguson Champion Zero-Turn Mower, 18hp Kohler Hydraulics Pump SERVICE PARTS - BDP/PG Series (5023092_5023093) Parts Diagram

Champion Zero-Turn Mower, 18hp Kohler

Hydraulics Pump SERVICE PARTS - BDP/PG Series (5023092_5023093) Parts Diagram

  • Title

1

Simplicity 5023405

Housing Kit

$

$

Not available

2

Simplicity 5023406SM

End Cap Kit (W/ Poppets, Standard Charge) (Includes Ref. Nos. 66)

$457.99

$

Usually ships in 2-12 days

0

3

Simplicity 5023407

Straight Headless Pin
(Superseded to 5023407SM)

$23.99

$

Usually ships in 2-12 days

0

4

Simplicity 5023408

Hex Flange Bolt M8-1.25 X 60mm LG
(Superseded to 5023408SM)

$22.99

$

Usually ships in 2-12 days

0

5

Simplicity 5023409SM

Housing O-Ring

$29.99

$

In Stock, only 1 left!

0

6

Simplicity 5023410

Charge Pump Kit (STD) (Includes Ref. Nos. 7 & 8)
(Superseded to 5023410SM)

$219.99

$

Usually ships in 2-12 days

0

7

STD Gerotor Assy (11 cu. In/rev D-Drive) (Not a Serviceable Part)

$

$

Not available

8

O-Ring (Not a Serviceable Part)

$

$

Not available

10

Simplicity 5023411

Socket Head Screw M6 x 1.0-20mm Lg (STD Charge)
(Superseded to 5023411SM)

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 5023412SM

Bypass Valve Kit (Blank)

$75.99

$

Usually ships in 2-12 days

0

18

Simplicity 5023413SM

Pump Shaft Kit (Blind 15mm Keyway W/ Std Charge) (Includes Ref. Nos. 19)

$219.99

$

Usually ships in 2-12 days

0

19

Ball Bearing 17 x 40 x 12 (Not a Serviceable Part)

$

$

Not available

20

Simplicity 5023414SM

Lip Seal 17 x 40 x 7 PTC

$18.99

$

In Stock, only 1 left!

0

21

Simplicity 5023415SM

Spacer

$9.49

$

Usually ships in 2-12 days

0

22

Simplicity 5023416SM

Retaining Ring

$2.99

$

Usually ships in 2-12 days

0

25

Simplicity 5023417

Cylinder Block Kit
(Superseded to 5023417SM)

$225.99

$

Usually ships in 2-12 days

0

29

Simplicity 5023418

Block Spring
(Superseded to 5023418SM)

$23.99

$

Usually ships in 2-12 days

0

30

Simplicity 5023419

Block Thrust Washer
(Superseded to 5023419SM)

$13.99

$

Usually ships in 2-12 days

0

31

Simplicity 5023420

Valve Plate (Steel N-Tec:Black)
(Superseded to 5023420SM)

$62.99

$

Usually ships in 2-12 days

0

32

Simplicity 5023421

Swashplate
(Superseded to 5023421SM)

$100.99

$

Usually ships in 2-12 days

0

34

Simplicity 5023422

Ball Thrust Bearing
(Superseded to 5023422SM)

$41.99

$

Usually ships in 2-12 days

0

37

Simplicity 5023423

Trunnion Arm, Tapered Square
(Superseded to 5023423SM)

$

$

Not available

38

Simplicity 5023424

Slot Guide
(Superseded to 5023424SM)

$18.99

$

Usually ships in 2-12 days

0

42

Simplicity 5023425SM

Check Valve Kit (0.031"Orifice)

$78.99

$

In Stock, only 2 left!

0

44

Simplicity 5023426

Charge Relief Valve Kit (1/4" Plastic Ball & Spring)
(Superseded to 5023426SM)

$15.99

$

In Stock, only 1 left!

0

49

Simplicity 5023427SM

Trunnion Seal / Retainer Kit

$29.99

$

Usually ships in 2-12 days

0

56

Simplicity 5023428SM

Straight Thread Plug

$

$

Not available

66

5/16" SAE Plug (Not a Serviceable Part)

$

$

Not available

94

Arm, Control

$

$

Not available

98

Arm, Retrun

$

$

Not available

99

Arm, Retrun Scissor Inner

$

$

Not available

100

Arm, Retrun Scissor Outer

$

$

Not available

101

Spacer RTN (Not a Serviceable Part)

$

$

Not available

102

Spring, Extension (Not a Serviceable Part)

$

$

Not available

103

Screw, 5/16 x .875 (Patch) (Not a Serviceable Part)

$

$

Not available

104

Washer .34 x .88 x .06 (Not a Serviceable Part)

$

$

Not available

105

Washer, Nylon (Not a Serviceable Part)

$

$

Not available

106

Nut, Hex Lock 5/16-24 UNF (Not a Serviceable Part)

$

$

Not available

107

Spacer (Not a Serviceable Part)

$

$

Not available

110

Simplicity 5023430SM

Kit, RTN, STD (Includes Ref. Nos. 94, 98, 100, 101, 102, 103, 104, 104, 105, 106 & 107)

$65.99

$

Usually ships in 2-12 days

0

111

Simplicity 5023429SM

Overhaul Seal Kit

$

$

Not available
