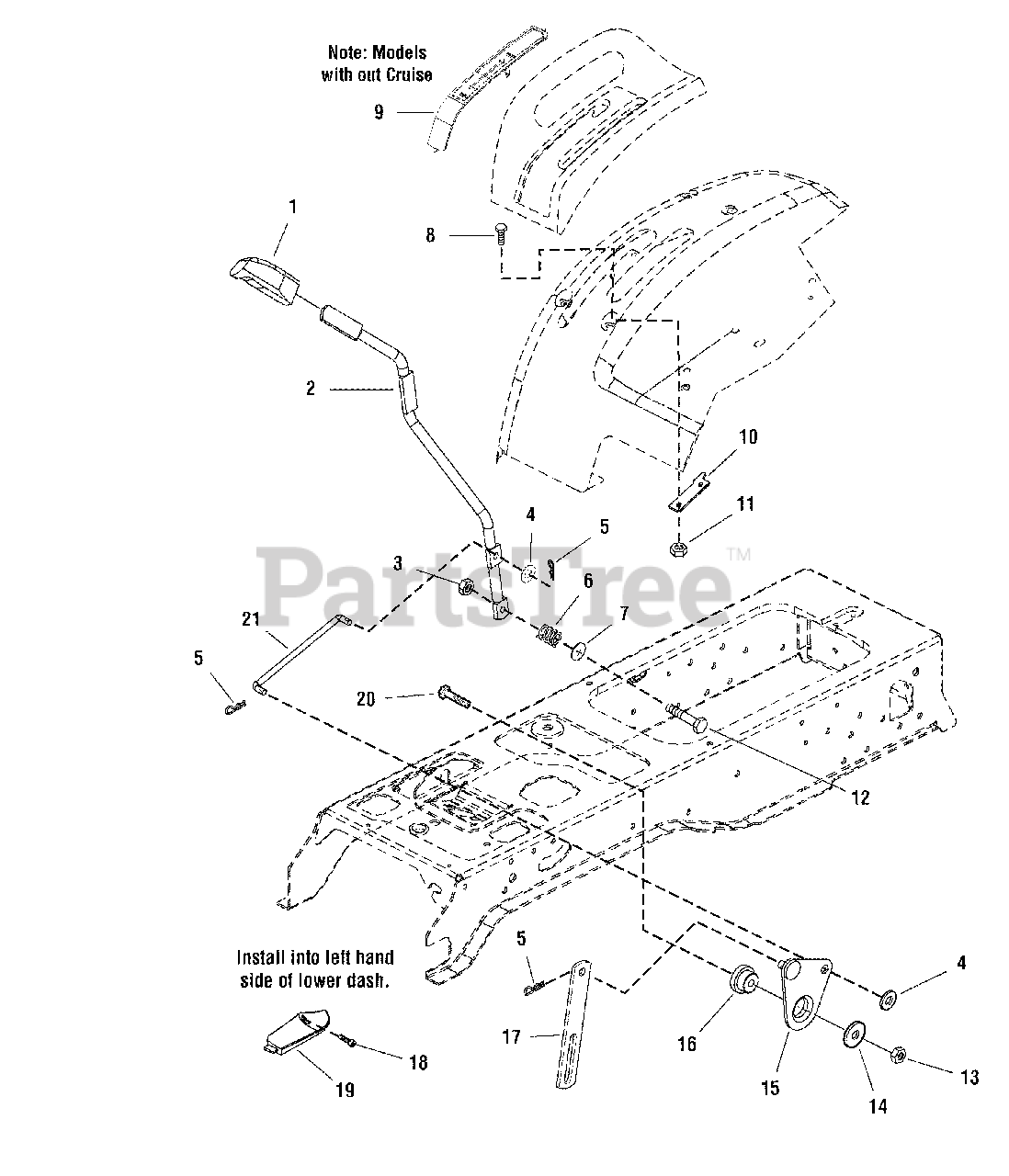

1694682 - Simplicity Broadmoor Lawn Tractor, 20hp Lift Group - Manual with Cruise Control Parts Diagram

Broadmoor Lawn Tractor, 20hp

Lift Group - Manual with Cruise Control Parts Diagram

  • Title
1

Simplicity 1722302

GRIP, Black Vinyl
(Superseded to 1722302SM)

$8.49

$

In Stock, Qty 10

0

2

Simplicity 1722024A

ROD, Lift Lever with Flats
(Superseded to 1722024ASM)

$37.99

$

In Stock, only 1 left!

0

3

Simplicity 1930645

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

4

Simplicity 1924940

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

6

Simplicity 2162085

SPRING, Compression
(Superseded to 2162085SM)

$6.99

$

In Stock, Qty 7

0

7

Simplicity 1723866

NUT, Push, 3/8
(Superseded to 1723866SM)

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 1923341

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 1923341SM)

$4.49

$

In Stock, Qty 8

0

9

Simplicity 1722313

PLUG, Lift Cover (Models without Cruise Control)
(Superseded to 1722313SM)

$3.49

$

In Stock, only 1 left!

0

10

Simplicity 1722284A

QUADRANT
(Superseded to 1722284ASM)

$6.49

$

Usually ships in 2-12 days

0

11

Simplicity 1920397

NUT, Hex Lock ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1923701

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 1919438

NUT, ESNA Lock, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 1960044

WASHER, Flat, 5/16 x 1-1/4
(Superseded to 1960044SM)

$4.49

$

In Stock, only 3 left!

0

15

Simplicity 1722491

CAM ASSEMBLY, Lift
(Superseded to 1722491SM)

$17.99

$

In Stock, only 1 left!

0

16

Simplicity 1704629

SPACER
(Superseded to 1732540SM)

$10.99

$

In Stock, only 1 left!

0

17

Simplicity 1727083A

LINK, Lift Upper
(Superseded to 1727083ASM)

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 1722607

SCREW, Torx Head, # 8-16 x 1/2
(Superseded to 1722607SM)

$3.99

$

In Stock, only 1 left!

0

19

Simplicity 1722285

COVER, Dash
(Superseded to 1722285SM)

$6.99

$

Usually ships in 2-12 days

0

20

Simplicity 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

21

Simplicity 1721789

ROD, Lift
(Superseded to 1721789SM)

$10.99

$

In Stock, only 1 left!

0
