1694676 - Simplicity Deluxe Hard Snow Cab Roof Group (4283rg) Parts Diagram

Deluxe Hard Snow Cab

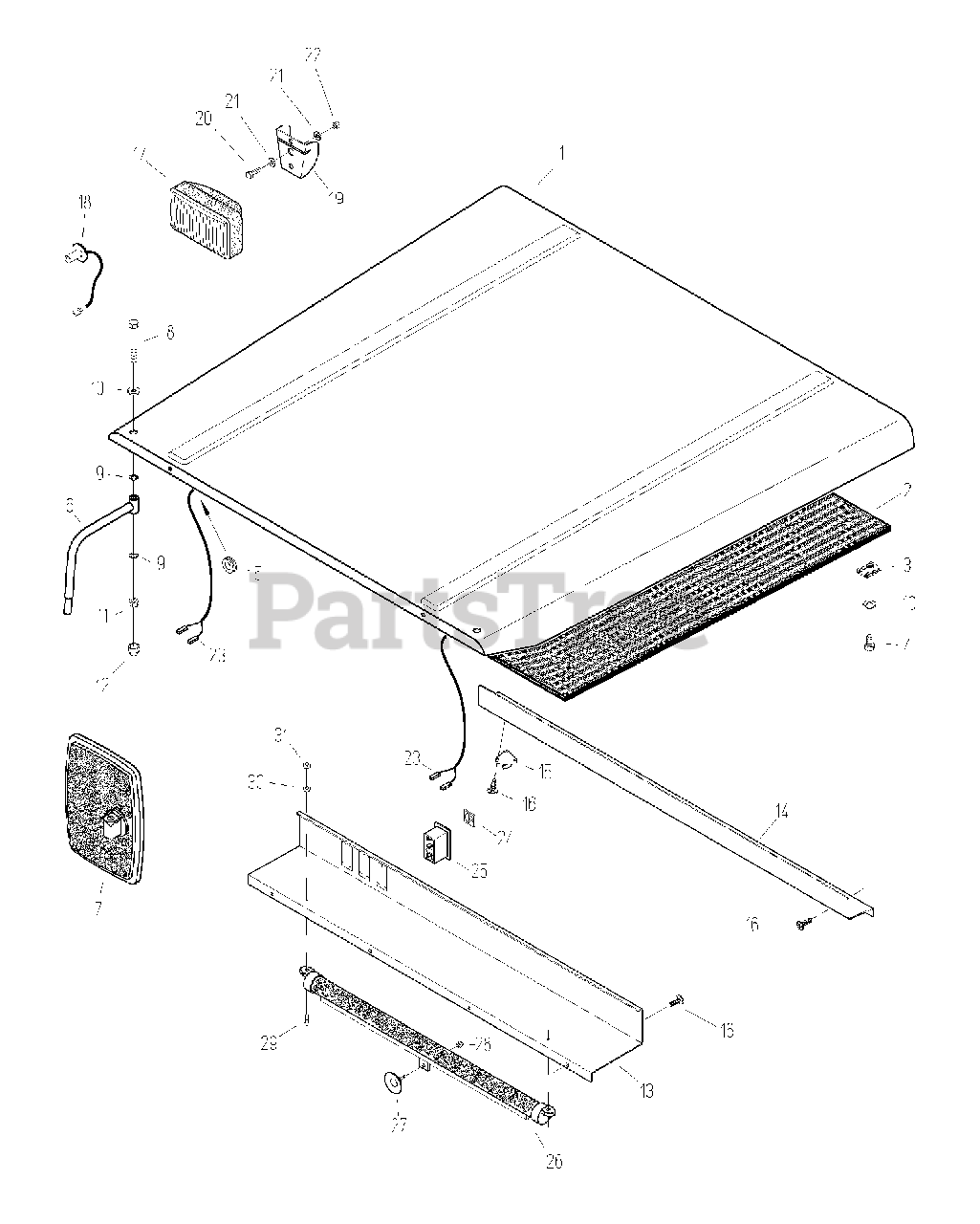

Roof Group (4283rg) Parts Diagram

  • Title

1

Simplicity 1721413SM

SHEET ROOF

$1937.99

$

Usually ships in 2-12 days

0

2

Simplicity 1721414SM

INNER ROOF DECOR

$

$

Not available

3

Simplicity 1721436SM

NUT, M8 13965

$8.99

$

Usually ships in 2-12 days

0

4

HEXAGONAL BOLT, M8 x 16

$

$

Not available

5

Simplicity 1721319SM

CABLE GUIDE, 12MM

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 1721416SM

MIRROR BAR

$

$

Not available

7

Simplicity 1721417SM

MIRROR

$70.99

$

Usually ships in 2-12 days

0

8

CAPSCREW, M8 x 1 1/4 x 65

$

$

Not available

9

WASHER, Spring B8

$

$

Not available

10

WASHER, M8

$

$

Not available

11

NUT, Nylock M8 x 1 1/4

$

$

Not available

12

Simplicity 1721402SM

CAP, D=8MM

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1721419SM

FRAME COVER, Front

$199.99

$

Usually ships in 2-12 days

0

14

Simplicity 1721420SM

FRAME COVER, Rear

$159.99

$

Usually ships in 2-12 days

0

15

Simplicity 1721421SM

COAT HANGER

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1721415SM

SCREW, Self-Tapping Phillips Hd., 4.8 x 16

$3.49

$

Usually ships in 2-12 days

0

23

Simplicity 1721423SM

WIRING ASSEMBLY, Headlight

$

$

Not available

26

Simplicity 1721422SM

SHIELD, Sunlight

$284.99

$

Usually ships in 2-12 days

0

27

Simplicity 1721438SM

VAC SOCKET, with Screw

$9.49

$

Usually ships in 2-12 days

0

28

Simplicity 1721437SM

NUT, Cap M4

$2.49

$

Usually ships in 2-12 days

0
