1694676 - Simplicity Deluxe Hard Snow Cab Glass Door Group (4283gdg) Parts Diagram

Deluxe Hard Snow Cab

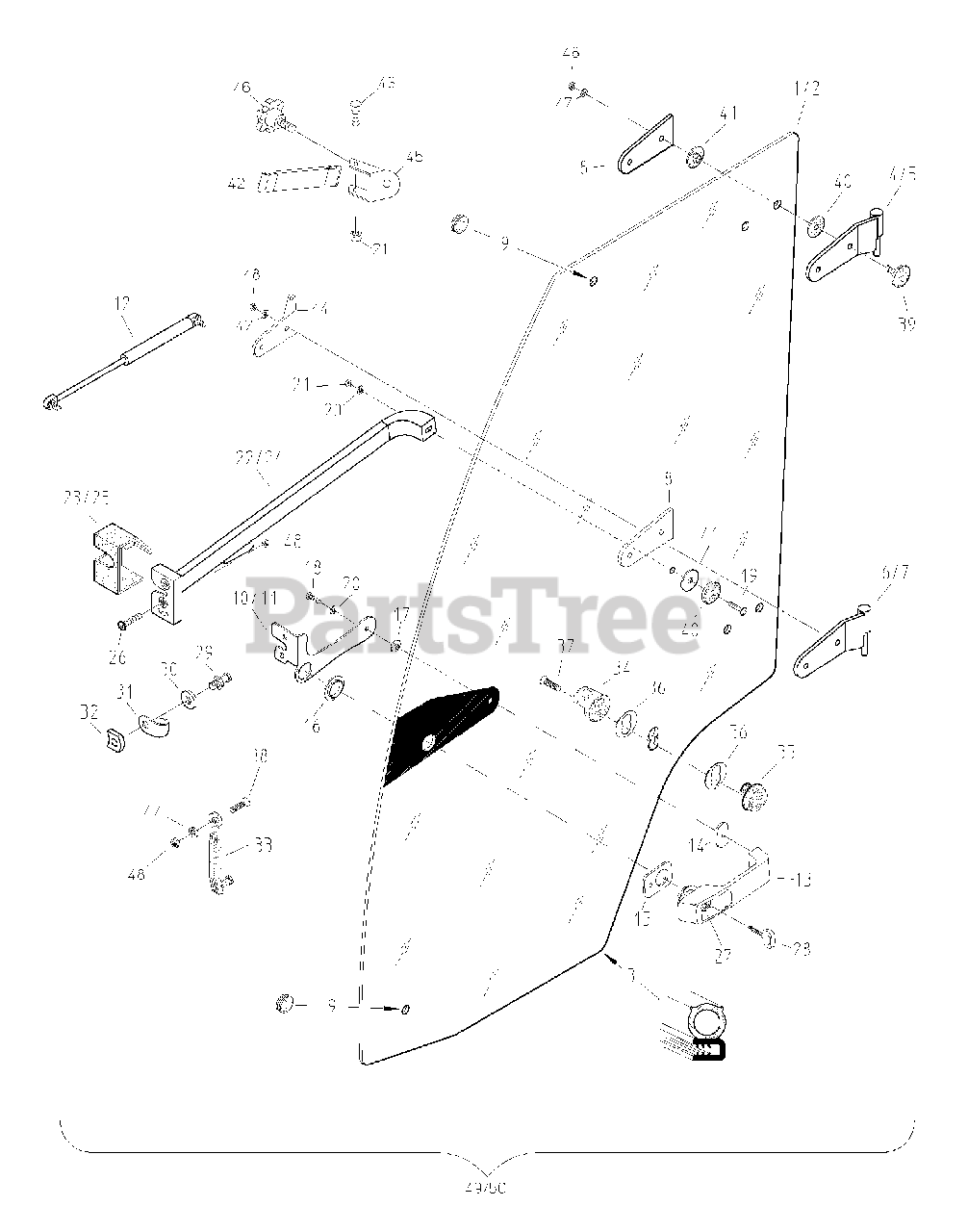

Glass Door Group (4283gdg) Parts Diagram

  • Title

1

Simplicity 1721394SM

LEFT DOOR, Glass

$

$

Not available

2

Simplicity 1721395SM

RIGHT DOOR, Glass

$

$

Not available

3

Simplicity 1721325SM

PROFILE SEALING, 23 ft. 3 in.

$

$

Not available

4

Simplicity 1721368SM

DOOR HINGE, Upper Right

$

$

Not available

5

Simplicity 1721369SM

DOOR HINGE, Upper Left

$

$

Not available

6

Simplicity 1721370SM

DOOR HINGE, Lower Right

$

$

Not available

7

Simplicity 1721371SM

DOOR HINGE, Lower Left

$

$

Not available

8

Simplicity 1721372SM

INNER BRACKET, Hinge

$

$

Not available

9

Simplicity 1721373SM

RUBBER STUBBLE, DM 16

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 1721374SM

LOCKER BRACKET, Left Door

$50.99

$

Usually ships in 2-12 days

0

11

Simplicity 1721375SM

LOCKER BRACKET, Right Door

$

$

Not available

12

Simplicity 1721376SM

GASLIFT, 320MM 300N

$

$

Not available

13

Simplicity 1721377SM

DOOR HANDLE, with Door Lock

$148.99

$

Usually ships in 2-12 days

0

14

Simplicity 1721378SM

RUBBER PAD, Small

$

$

Not available

15

Simplicity 1721379SM

RUBBER PAD, Large

$

$

Not available

16

Simplicity 1721380SM

RUBBER PAD, with Socket, Large

$

$

Not available

17

Simplicity 1721381SM

RUBBER PAD, with Socket, Small

$

$

Not available

18

CAPSCREW, M6 x 1 x 20

$

$

Not available

19

CARRIAGE BOLT, M6 x 1 x 30

$

$

Not available

20

WASHER, M6

$

$

Not available

22

Simplicity 1721382SM

INNER DOORLOCK, Left w/ Handle

$153.99

$

Usually ships in 2-12 days

0

23

Simplicity 1721383SM

DOOR LOCK COVER, Left

$

$

Not available

24

Simplicity 1721384SM

INNER DOORLOCK, Right w/ Handle

$

$

Not available

25

Simplicity 1721385SM

DOOR LOCK COVER, Right

$15.99

$

Usually ships in 2-12 days

0

26

SCREW, Flat Hd. Slotted, M8 x 1 1/4 x 40

$

$

Not available

27

Simplicity 1721386SM

LOCK, Door

$

$

Not available

28

Simplicity 1721387SM

KEY, (NR. 14603)

$

$

Not available

29

Simplicity 1721434SM

LOCKING BOLT, 13mm

$43.99

$

Usually ships in 2-12 days

0

30

Simplicity 1721388SM

PAD

$6.99

$

Usually ships in 2-12 days

0

31

Simplicity 1721389SM

GLIDE, Metal

$8.99

$

Usually ships in 2-12 days

0

32

Simplicity 1721390SM

BRACKET, Threaded

$

$

Not available

33

Simplicity 1721391SM

BAR, Door Holding

$

$

Not available

34

Simplicity 1721334SM

BEARING, Inner Gas Spring
(Superseded to 1721334ASM)

$24.99

$

Usually ships in 2-12 days

0

35

Simplicity 1721335SM

BEARING, Outer Gas Spring

$16.99

$

Usually ships in 2-12 days

0

36

Simplicity 1721431SM

WASHER, Rubber

$

$

Not available

37

SCREW, Flat Head Socket, M8 x 1 1/4 x 25

$

$

Not available

38

SCREW, Flat Hd. Phillips, M8 x 1 1/4 x 30

$

$

Not available

39

Simplicity 1721435SM

PVC-WASHER, with Screw, M8 x 30

$3.99

$

Usually ships in 2-12 days

0

40

Simplicity 1721427SM

WASHER, Rubber

$3.49

$

Usually ships in 2-12 days

0

41

Simplicity 1721428SM

WASHER, Rubber with Socket

$3.49

$

Usually ships in 2-12 days

0

47

NUT, M8

$

$

Not available

48

NUT, Flange Lock, M8

$

$

Not available

49

Simplicity 1721394SM

LEFT DOOR, Complete, (Includes Ref. 2 - 41)

$

$

Not available

50

Simplicity 1721395SM

RIGHT DOOR, Complete, (Includes Ref 2 - 41)

$

$

Not available
