1694676 - Simplicity Deluxe Hard Snow Cab Frame Group (4283fg) Parts Diagram

Deluxe Hard Snow Cab

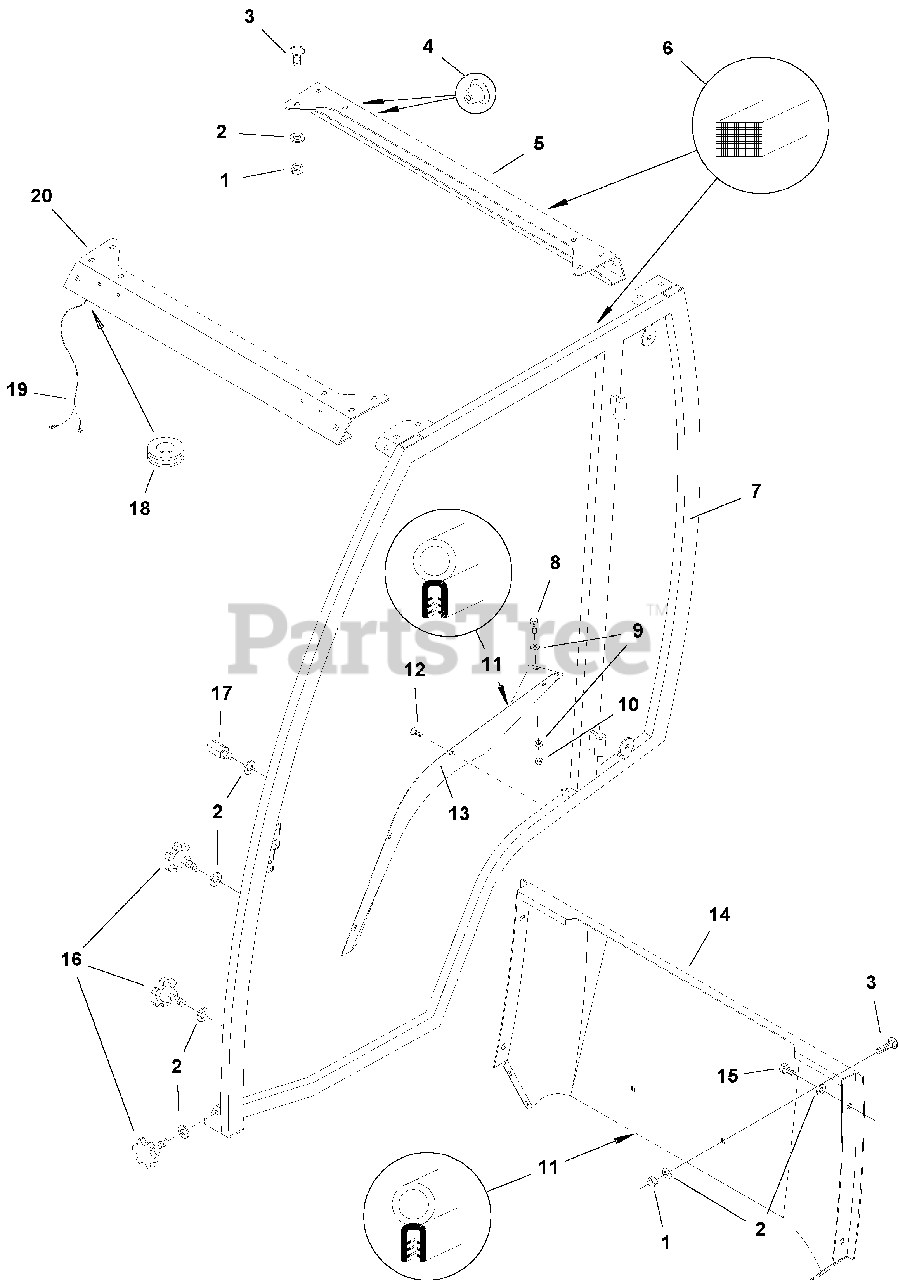

Frame Group (4283fg) Parts Diagram

  • Title

1

NUT, Nylock, M8

$

$

Not available

2

WASHER, M8

$

$

Not available

3

CARRIAGE BOLT, M8 x 1 1/4 x 20

$

$

Not available

4

Simplicity 1721321SM

GROMET, D=7

$2.99

$

Usually ships in 2-12 days

0

5

Simplicity 1721320SM

CROSS MEMBER, Upper Rear

$

$

Not available

6

Simplicity 1721323SM

COMPRIBAND, A 20/15, 10 ft.

$

$

Not available

7

Simplicity 1721311SM

SIDEFRAME, Left

$

$

Not available

7

Simplicity 1721312SM

SIDEFRAME, Right

$

$

Not available

8

CAPSCREW, M6 x 1 x 16

$

$

Not available

9

WASHER, M6

$

$

Not available

10

NUT, Nylock, M6 x 1

$

$

Not available

11

Simplicity 1721316SM

PROFILE SEALING, 10 ft.

$

$

Not available

12

Simplicity 1721415SM

TAPPING SCREW, 4.8 x 16

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1721314SM

FENDERSHIELD, Left

$

$

Not available

13

Simplicity 1721315SM

FENDERSHIELD, Right

$

$

Not available

14

Simplicity 1721322SM

REAR SHIELD

$797.99

$

Usually ships in 2-12 days

0

15

CAPSCREW, M8 x 1 1/4 x 16

$

$

Not available

16

Simplicity 1721346SM

GRIP SCREW, 40/8 x 20

$8.99

$

Usually ships in 2-12 days

0

17

Simplicity 1721313SM

GASLIFT SOCKET

$

$

Not available

18

Simplicity 1721319SM

CABLE GUIDE, 12MM

$5.49

$

Usually ships in 2-12 days

0

19

Simplicity 1721317SM

WIRING, Complete

$90.99

$

Usually ships in 2-12 days

0

20

Simplicity 1721318SM

CROSS MEMBER, Upper Front

$

$

Not available

--

Simplicity 1694676SM

Snow Cab

$

$

Not available
