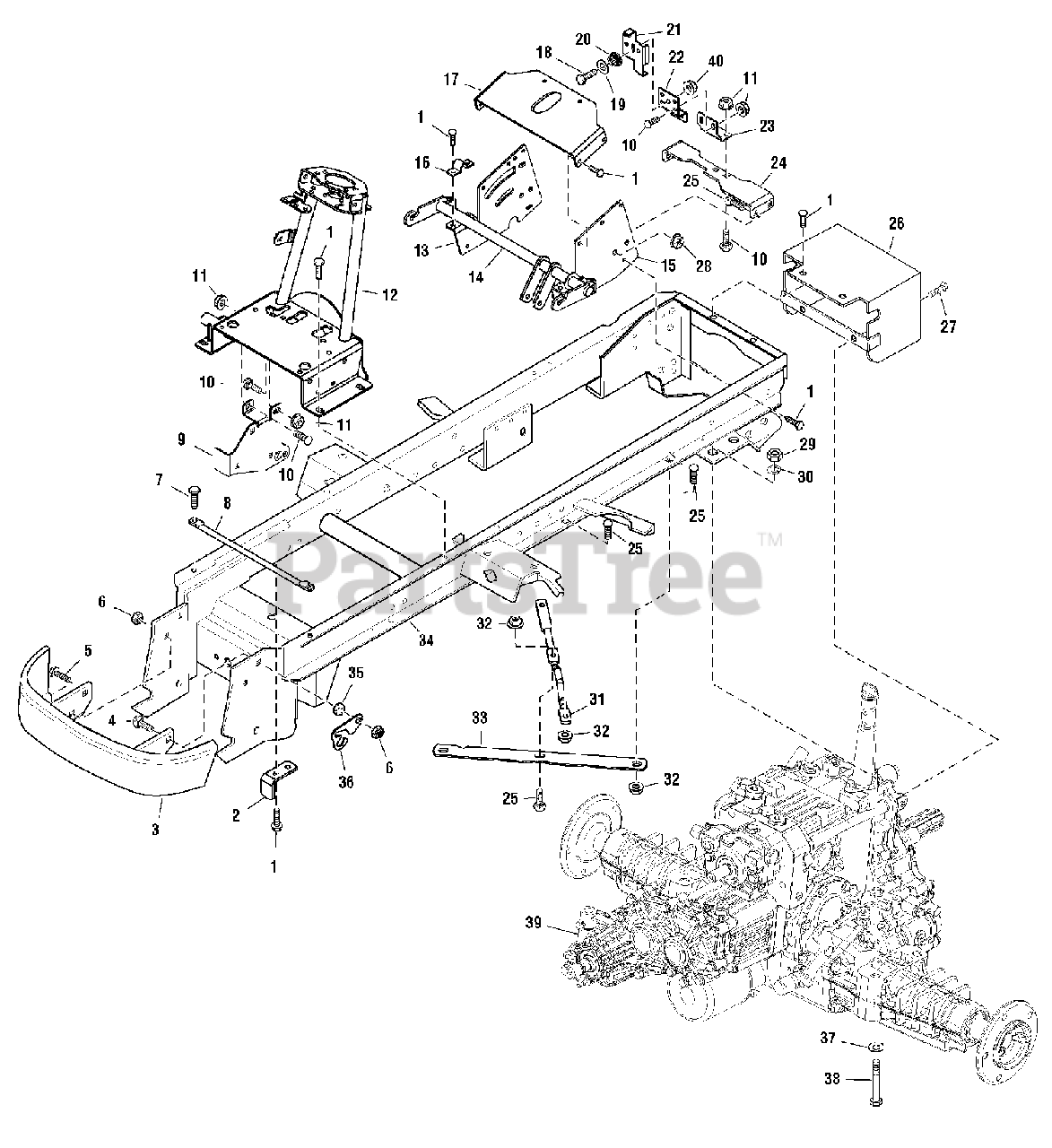

1694644 - Simplicity Legacy XL Garden Tractor, 27hp Kohler Frame & Transmission Group Parts Diagram

Legacy XL Garden Tractor, 27hp Kohler

Frame & Transmission Group Parts Diagram

  • Title

1

Simplicity 1664847SM

CAPSCREW, Hex, Washer Head, Taptite, 5/16-18 x 3/4, Black
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1725752ASM

BRACKET, Upstop

$10.99

$

Usually ships in 2-12 days

0

3

Simplicity 1725171ASM

BUMPER & BRACKETS ASSEMBLY

$237.99

$

Usually ships in 2-12 days

0

4

Simplicity 1960706SM

CARRIAGE BOLT-RD, 1/2-13 x 2, Black

$5.99

$

Usually ships in 2-12 days

0

5

Simplicity 1920328SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/2, Black
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1960708SM

NUT, Hex, Lock ESNA, 1/2-13
(Superseded to 703453)

$5.99

$

Usually ships in 2-12 days

0

9

Simplicity 1724838ASM

SUPPORT, Control Valve

$24.99

$

Usually ships in 2-12 days

0

10

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4, Black
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

11

Simplicity 1960684SM

NUT, Hex, KEPS 5/16-18, Black
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

12

Simplicity 1724108ASM

TOWER ASSEMBLY

$438.99

$

Usually ships in 2-12 days

0

13

Simplicity 1725095ASM

SUPPORT, Seat Support, RH

$28.99

$

Usually ships in 2-12 days

0

14

Simplicity 1724765ASM

SHAFT ASSEMBLY

$162.99

$

Usually ships in 2-12 days

0

15

Simplicity 1725096ASM

SUPPORT, Seat Support, LH

$27.99

$

Usually ships in 2-12 days

0

16

Simplicity 1720147ASM

STRAP
(Superseded to 1720147BZYP)

$9.99

$

Usually ships in 2-12 days

0

17

Simplicity 1725094ASM

SUPPORT, Seat Deck

$31.99

$

Usually ships in 2-12 days

0

18

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1, Black
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

19

Simplicity 1919326SM

WASHER, 5/16, Black

$4.49

$

In Stock, Qty 8

0

20

Simplicity 2153010SM

SPRING, Compresion, Conocal

$8.99

$

Usually ships in 2-12 days

0

21

Simplicity 1724248SM

BRACKET-FREE WHEEL 10GA

$15.99

$

Usually ships in 2-12 days

0

22

Simplicity 1725308SM

SUPPORT, Free Wheel Latch

$14.99

$

Usually ships in 2-12 days

0

23

Simplicity 1725081ASM

SUPPORT, Dump Valve

$17.99

$

Usually ships in 2-12 days

0

24

Simplicity 1724244ASM

BRACKET, Torque Strap

$25.99

$

Usually ships in 2-12 days

0

25

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1 Black
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

26

Simplicity 1724817ASM

SHIELD & BRACKET ASSEMBLY

$131.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960677SM

CAPSCREW, Hex Head, M12-1.75 x 25MM, (540 PTO Models Only)

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 1960687SM

NUT, Hex, Flange ESNA, 3/8-16, Black
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

29

Simplicity 1960423SM

NUT, Hex Flange Center Lock, M12-1.25, Black

$3.99

$

Usually ships in 2-12 days

0

30

Simplicity 1916966SM

LOCKWASHER, 1/2, Black
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

31

Simplicity 1725635SM

ROD

$29.99

$

Usually ships in 2-12 days

0

32

Simplicity 1960680SM

NUT, Hex, KEPS 3/8-16, Black

$6.49

$

Usually ships in 2-12 days

0

33

Simplicity 1724936ASM

BRACE, Cross

$15.99

$

Usually ships in 2-12 days

0

34

Simplicity 1724144ASM

FRAME ASSEMBLY

$1111.99

$

Usually ships in 2-12 days

0

35

Simplicity 1913744SM

NUT, Hex, Jam, 1/2-13, Black

$4.99

$

In Stock, Qty 19

0

36

Simplicity 1726019ASM

LOCK, Hood

$9.99

$

Usually ships in 2-12 days

0

37

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

38

Simplicity 1960482SM

CAPSCREW, Hex Head, M12-1.25 x100MM, Black

$6.49

$

Usually ships in 2-12 days

0

39

Simplicity 1724561SM

TRANSMISSION ASSEMBLY, 4WD, K92C, W/540
(Superseded to 1752345YP)

$7989.99

$

Usually ships in 2-12 days

0

39

Simplicity 1723939SM

TRANSMISSION ASSEMBLY, 2WD, K92A
(Superseded to 1752343YP)

$9971.99

$

Usually ships in 2-12 days

0

39

Simplicity 1723940SM

TRANSMISSION ASSEMBLY, 4WD, K92B
(Superseded to 1752344YP)

$7124.99

$

Usually ships in 2-12 days

0

40

Simplicity 1960686SM

NUT, Hex, Flange ESNA, 5/16-18, Black
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

41

Simplicity 1726474SM

COVER, PTO Shaft

$7.99

$

In Stock, only 1 left!

0
