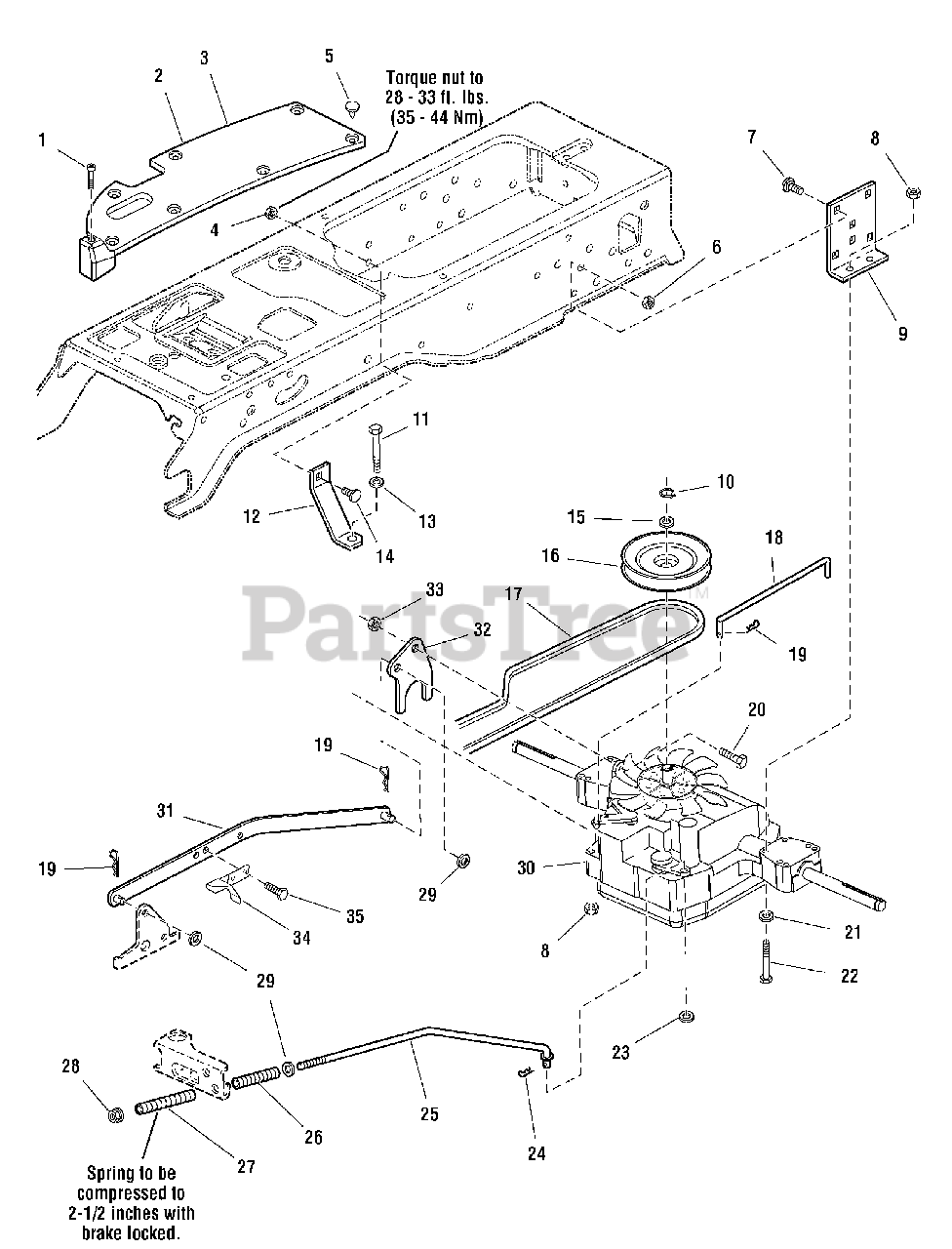

1694630 - Simplicity Broadmoor Lawn Tractor, 18hp Transmission Group - Tuff Torq K57 Parts Diagram

Broadmoor Lawn Tractor, 18hp

Transmission Group - Tuff Torq K57 Parts Diagram

  • Title

1

Simplicity 1960676SM

SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4, Black

$4.49

$

Usually ships in 2-12 days

0

2

Simplicity 1722345SM

PAD, Footrest, LH, without Differential Lock

$23.99

$

Usually ships in 2-12 days

0

3

Simplicity 1722173SM

PAD, Footrest, RH

$32.99

$

Usually ships in 2-12 days

0

4

Simplicity 1960636SM

NUT, Hex KEPS, 5/16-18, Black

$4.99

$

In Stock, only 1 left!

0

5

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

6

Simplicity 1960637SM

NUT, Hex KEPS, 3/8-16, Black

$3.49

$

In Stock, only 1 left!

0

7

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1, Black
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

8

Simplicity 1960686SM

NUT, Hex Flange ESNA, 5/16-18, Black
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1721728ASM

SUPPORT, Transmission

$14.99

$

Usually ships in 2-12 days

0

10

Simplicity 1724316SM

RING, Snap, Transmission

$4.99

$

In Stock, Qty 6

0

11

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

12

Simplicity 1721592ASM

STRAP, Torque

$8.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960141SM

WASHER, 5/16, Black

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1, Black
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

15

Simplicity 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1721666SM

PULLEY & HUB ASSEMBLY

$

$

Not available

17

Simplicity 1726841SM

V-BELT, Drive

$58.99

$

In Stock, Qty 20+

0

18

Simplicity 1726806SM

ROD, Transmission Release

$9.99

$

Usually ships in 2-12 days

0

19

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

20

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 2
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

21

Simplicity 1919326SM

WASHER, 5/16, Black

$4.49

$

In Stock, Qty 8

0

22

Simplicity 1923141SM

CAPSCREW, Hex Head, 5/16-18 x 2-3/4, Black
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

23

Simplicity 1918267SM

WASHER, 15/32 x 15/16, Black

$3.99

$

In Stock, only 1 left!

0

24

Simplicity 1918447SM

PIN, Cotter, Black
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1726871SM

ROD, Brake

$19.99

$

Usually ships in 2-12 days

0

26

Simplicity 1722684SM

SPRING, Compression, 3-1/4" Long, Black

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 1729277SM

SPRING, Compression, 3-5/8" Long, Black

$6.99

$

In Stock, only 1 left!

0

28

Simplicity 1960687SM

NUT, Hex FlangeESNA, 3/8-16, Black
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

29

Simplicity 1924940SM

WASHER, 3/8, Black
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1722668SM

TRANSMISSION ASSEMBLY, K57, without Pulley
(Superseded to 1687313SM)

$2308.99

$

Usually ships in 2-12 days

0

31

Simplicity 1732190ASM

CONTROL ARM ASSEMBLY

$

$

Not available

32

Simplicity 1724423ASM

ARM, Control

$12.99

$

Usually ships in 2-12 days

0

33

Simplicity 1960636SM

NUT, KEPS Lock, 5/16-18

$4.99

$

In Stock, only 1 left!

0

34

Simplicity 1727215ASM

ACTUATOR, Switch

$21.99

$

Usually ships in 2-12 days

0

35

Simplicity 1924856SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0
