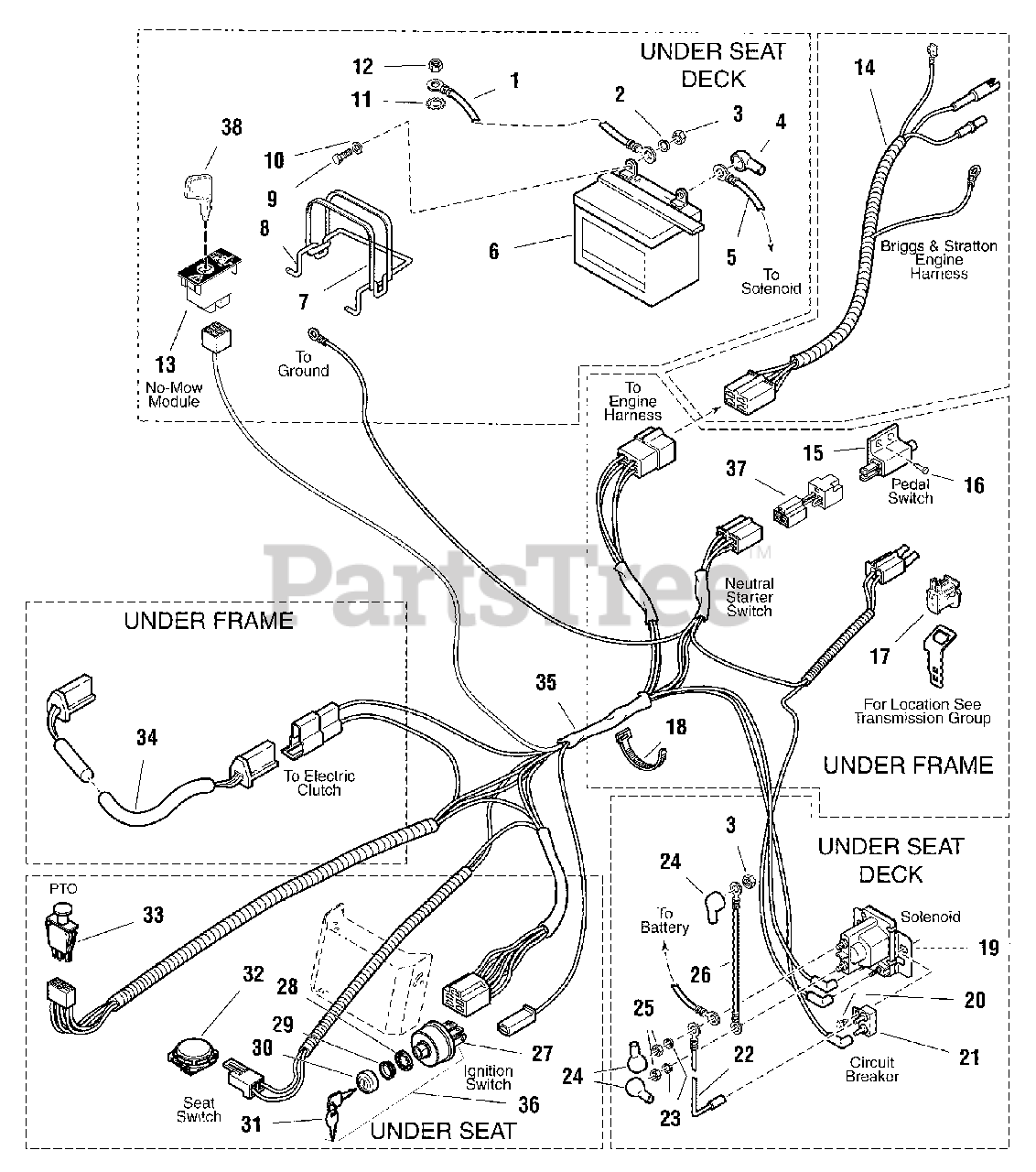

1694610 - Simplicity Coronet Rear-Engine Riding Mower, 13hp Electrical Group Parts Diagram

Coronet Rear-Engine Riding Mower, 13hp

Electrical Group Parts Diagram

  • Title

1

Simplicity 1713163SM

CABLE, Battery to Ground

$24.99

$

In Stock, only 2 left!

0

2

Simplicity 2816964SM

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

3

Simplicity 2816622SM

NUT, Hex 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1709086SM

BOOT, Insulator
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 10

0

5

Simplicity 1727668SM

CABLE, Battery to Solenoid

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 1685215SM

BATTERY

$

$

Not available

7

Simplicity 1665872SM

STRAP, Battery

$11.99

$

In Stock, Qty 7

0

8

Simplicity 1667805SM

BRACE, Battery

$

$

Not available

9

Simplicity 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

10

Simplicity 2821319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 2820427SM

WASHER, Lock, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

13

Simplicity 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

14

Simplicity 1718948SM

WIRE ASSEMBLY, Harness to Engine (Briggs & Stratton Only)

$7.99

$

Usually ships in 2-12 days

0

15

Simplicity 1717050SM

SWITCH, Neutral Start

$17.99

$

In Stock, Qty 20+

0

16

Simplicity 1722035SM

POP-RIVET

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1732004SM

SWITCH, Push Button (N.O.)

$8.99

$

In Stock, Qty 20+

0

18

Simplicity 1701011SM

TIE, Self-Locking

$5.49

$

In Stock, only 2 left!

0

19

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

20

Simplicity 1925003SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

21

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

22

Simplicity 1665237SM

WIRE ASSEMBLY

$11.99

$

In Stock, Qty 7

0

23

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

25

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 1709088SM

CABLE, Solenoid to Starter

$11.99

$

Usually ships in 2-12 days

0

27

SWITCH, Ignition (6 pole)

$

$

Not available

28

Simplicity 1960547SM

WASHER, Internal Tooth, 5/8

$4.49

$

In Stock, only 3 left!

0

29

Simplicity 1717549SM

NUT
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

30

Simplicity 1717550SM

COVER, Keyswitch
(Superseded to 847150)

$8.49

$

In Stock, Qty 15

0

31

Simplicity 1717163SM

KEYS (Set of 2 Keys)

$8.99

$

In Stock, Qty 20+

0

32

Simplicity 1718981SM

SWITCH, Seat

$21.99

$

In Stock, only 1 left!

0

33

Simplicity 1716332SM

* SWITCH, PTO, Electric Clutch
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

34

Snapper 1726667SM

WIRE HARNESS, Clutch

$37.99

$

Usually ships in 2-12 days

0

35

Simplicity 1726654SM

HARNESS, Wiring

$117.99

$

Usually ships in 2-12 days

0

36

Simplicity 1686734SM

IGNITION KEY SWITCH ASSEMBLY

$32.99

$

In Stock, Qty 20+

0

37

Simplicity 1734025SM

WIRING ASSEMBLY, All Conditions Shutdown

Note: (CE/Export)

$14.99

$

In Stock, only 1 left!

0

38

Simplicity 1726557SM

KEY, RMO Module, Plastic

$5.49

$

In Stock, Qty 20+

0
