1694542 - Simplicity Wide Body Cart Collector Wide Body Dump Cart Collector - 1694542 Parts Diagram

Wide Body Cart Collector

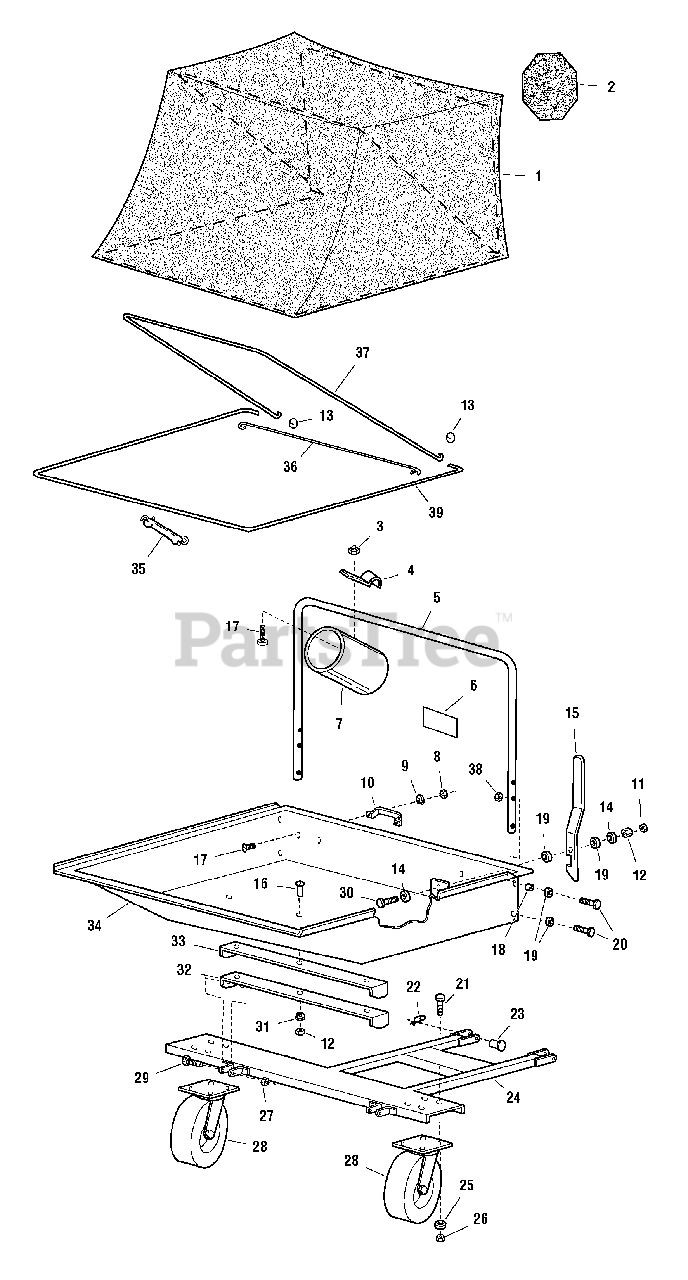

Wide Body Dump Cart Collector - 1694542 Parts Diagram

  • Title

1

Simplicity 1726311SM

COVER

$

$

Not available

2

Simplicity 1726323SM

PATCH, With Velcro

$

$

Not available

3

Simplicity 1920397SM

NUT, Hex, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1908097

SLEEVE CLAMP

$

$

Not available

5

Simplicity 1700758SM

TUBE, Support

$213.99

$

Usually ships in 2-12 days

0

6

Simplicity 1708120SM

DECAL, Max Capacity

$6.49

$

Usually ships in 2-12 days

0

7

Simplicity 1726312SM

SLEEVE, Connecting

$119.99

$

Usually ships in 2-12 days

0

8

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

10

Simplicity 1700768SM

LIFT HANDLE

$10.99

$

Usually ships in 2-12 days

0

11

Simplicity 1920161SM

NUT, Hex, Jam, 5/16-18

$4.49

$

In Stock, only 2 left!

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 170898

COTTER CIRCLE

$

$

Not available

14

Simplicity 2177649SM

WASHER, Compression

$9.49

$

In Stock, Qty 5

0

15

Simplicity 1708212SM

HANDLE, Latch

$

$

Not available

16

Simplicity 1918249SM

SCREW, Slotted, 5/16-18 x 3/4

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 1921958SM

CAPSCREW, Hex Head, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 1700267SM

SPACER, Plastic

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

20

Simplicity 1921677SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

22

Simplicity 2176012SM

PIN, Retainer
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 2102004SM

PIN, Round Head 1/2 x 1-1/2

$9.49

$

In Stock, only 2 left!

0

24

Simplicity 1708213SM

FRAME, Jarco Cart

$524.99

$

Usually ships in 2-12 days

0

25

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 1930645SM

NUT, Hex Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

27

Simplicity 1922134SM

NUT, Hex Centerlock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

28

Simplicity 1676892SM

WHEEL ASSEMBLY

$307.99

$

Usually ships in 2-12 days

0

29

Simplicity 1921176SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

30

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

31

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1726313SM

BRACKET, U

$59.99

$

Usually ships in 2-12 days

0

33

Simplicity 1700767

"U" BRACKET

$

$

Not available

34

Simplicity 1726314SM

BOX, 44" Jrco Cart

$797.99

$

Usually ships in 2-12 days

0

35

Simplicity 1700266SM

Rubber Strap

$

$

Not available

36

Simplicity 1700763SM

ROD, Straight

$23.99

$

Usually ships in 2-12 days

0

37

Simplicity 1700761SM

ROD, Support

$74.99

$

Usually ships in 2-12 days

0

38

Simplicity 1923362SM

NUT, Hex, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

39

Simplicity 1700762SM

ROD, Frame

$105.99

$

Usually ships in 2-12 days

0
