1694499 - Simplicity Clean Sweep Turbo Triple Grass Catcher Tubes & Support Group - Triple Parts Diagram

Clean Sweep Turbo Triple Grass Catcher

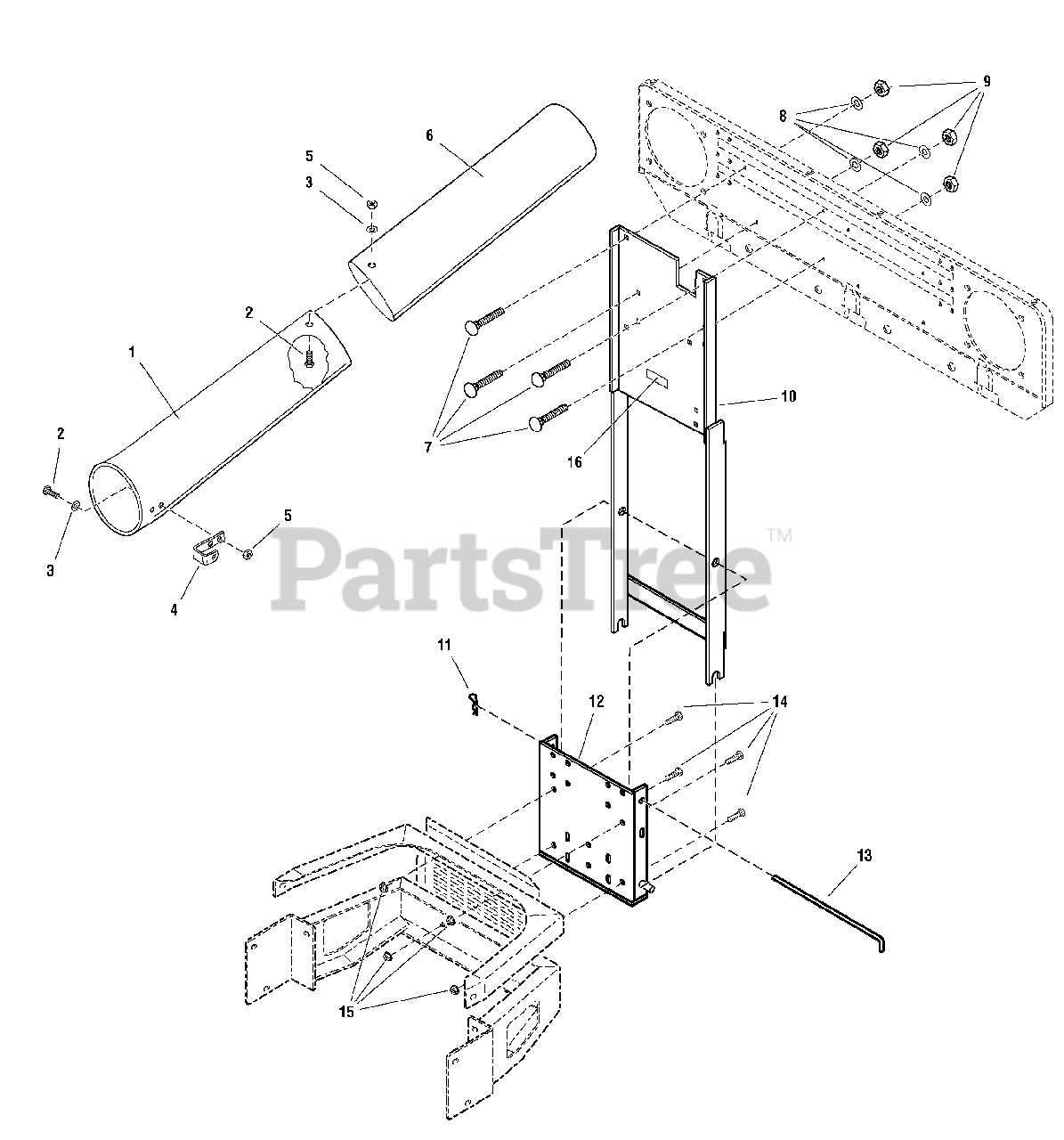

Tubes & Support Group - Triple Parts Diagram

  • Title

1

Simplicity 5049152SM

CHUTE, Grass Collector Lower, Black Poly

$87.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960404SM

SCREW, Truss Head Phillips, #10, 24 x 3/4 Black

$3.99

$

In Stock, only 4 left!

0

3

Simplicity 1960096SM

WASHER, 3/16 (0.19ID x 0.75OD x .06THK) Black

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1705063SM

CLIP, Spring, 1.40 x 1.48 Open 3.50LG 0.88WD
(Superseded to 1705063YP)

$

$

Not available

5

Simplicity 1933896SM

NUT, Hex Lock, 10-24 with Nylon Insert NC3B Black
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

6

Simplicity 5049151SM

CHUTE, Grass Collector Middle, Black Poly

$107.99

$

Usually ships in 2-12 days

0

7

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1 G5 Black
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

8

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16 Black
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917372SM

NUT, Hex 5/16-18 NC-2B Black
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1723437ASM

SUPPORT ASSEMBLY, Triple Collector

$186.99

$

Usually ships in 2-12 days

0

11

Simplicity 1960033SM

CLIP, Hair Pin, .125DIA Spring Wire 2.562LG Black

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1726968A

PLATE & PINS ASSEMBLY, Hitch Triple Collector Black
(Superseded to 1732625ASM)

$131.99

$

Usually ships in 2-12 days

0

13

Simplicity 1717085SM

ROD, Hitch, .625DIA 16.5LG

$50.99

$

In Stock, only 2 left!

0

14

Simplicity 1921176SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/4 G5 Black

$4.99

$

In Stock, only 1 left!

0

15

Simplicity 1960668SM

NUT, Hex Flange Whiz Lock, 1/2-13 Black
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

16

DECAL, ID Plate

$

$

Not available
