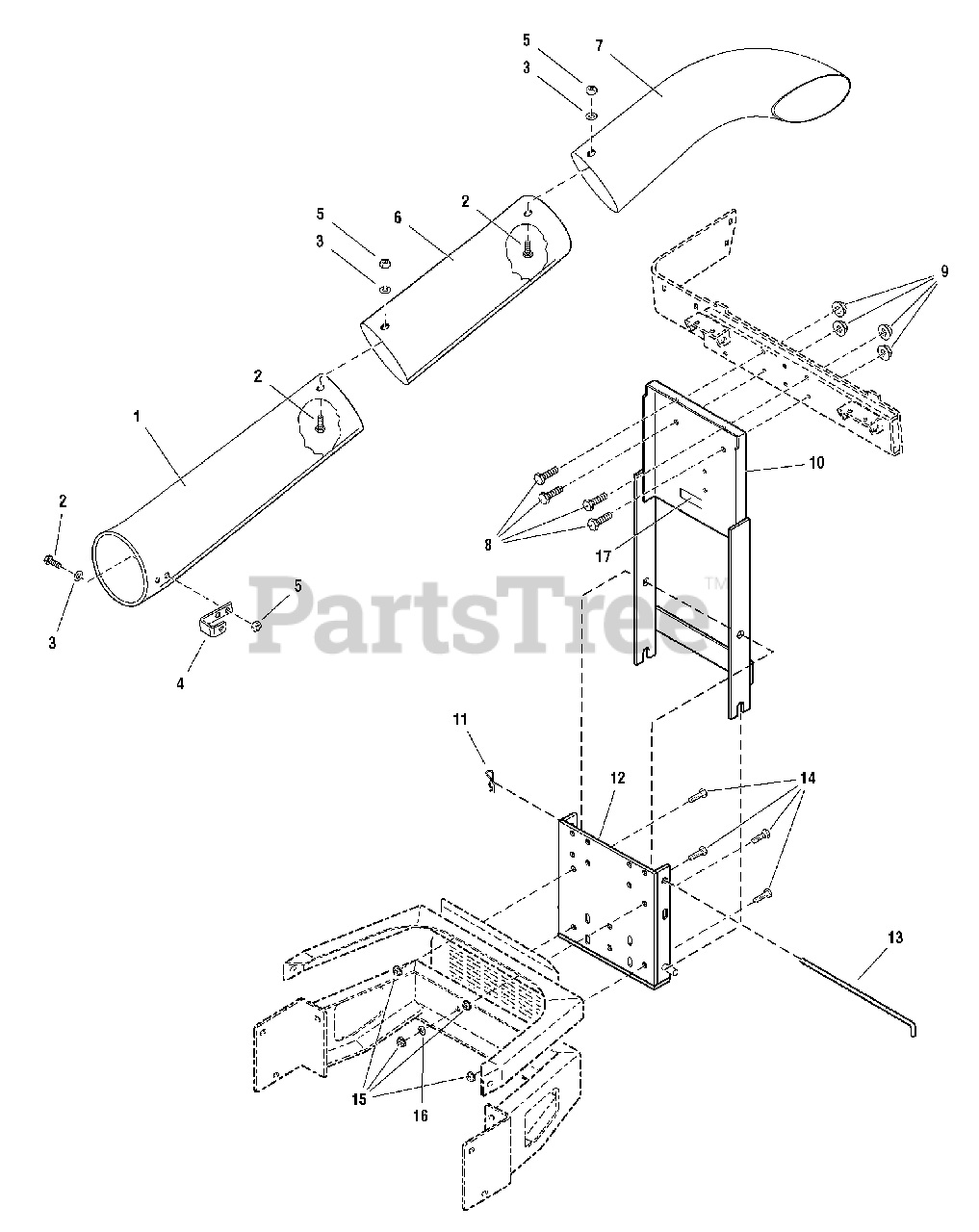

1694498 - Simplicity Clean Sweep Turbo Twin Grass Catcher Tubes & Support Group - Twin Parts Diagram

Clean Sweep Turbo Twin Grass Catcher

Tubes & Support Group - Twin Parts Diagram

  • Title

1

Simplicity 5049152SM

CHUTE, Grass Catcher Lower, Black

$87.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960404SM

SCREW, Truss Head Phillips, #10-24 x 3/4 Black

$3.99

$

In Stock, only 4 left!

0

3

Simplicity 1960096SM

WASHER, 3/16 (0.187ID x 0.75OD x .06THK) Black

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1705063SM

CLIP, Spring, 1.40 x 1.48OP x 3.50LG 0.88WD
(Superseded to 1705063YP)

$

$

Not available

5

Simplicity 1933896SM

NUT, Hex Lock, 10-24 with Nylon Insert, NC3B Black
(Superseded to 703412)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 5049151SM

CHUTE, Grass Catcher Middle, Black

$107.99

$

Usually ships in 2-12 days

0

7

Simplicity 1704283SM

ELBOW, Vacuum Collector, 5.57ID 30.29LG .090

$91.99

$

Usually ships in 2-12 days

0

8

Simplicity 1921965SM

CAPSCREW, Hex Head, 3/8-16 x 3/4 G5 Black
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 1928352SM

NUT, Hex Flange Whiz Lock, 3/8-16 Large Black
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

10

Simplicity 5046687ASM

FRAME ASSEMBLY, Bagger

$279.99

$

Usually ships in 2-12 days

0

11

Simplicity 1960033SM

CLIP, Hair Pin, .125DIA Spring Wire, 2.562LG Black

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 5046995ASM

FRAME ASSEMBLY, Bumper Mounting

$

$

Not available

13

Simplicity 5046693SM

ROD, Support, .625DIA 13.0LG

$22.99

$

Usually ships in 2-12 days

0

14

Simplicity 1921176SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/4 G5 Black

$4.99

$

In Stock, only 1 left!

0

15

Simplicity 1960668SM

NUT, Hex Flange Whiz Lock, 1/2-13 Black
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1924361SM

WASHER, 1/2 (0.53ID x 1.25OD x .08THK) Black
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

17

DECAL, ID Plate

$

$

Not available
