1694497 - Simplicity 60" Turbo Collector for Legacy XL 60" Turbo - Blower Assembly Parts Diagram

60" Turbo Collector for Legacy XL

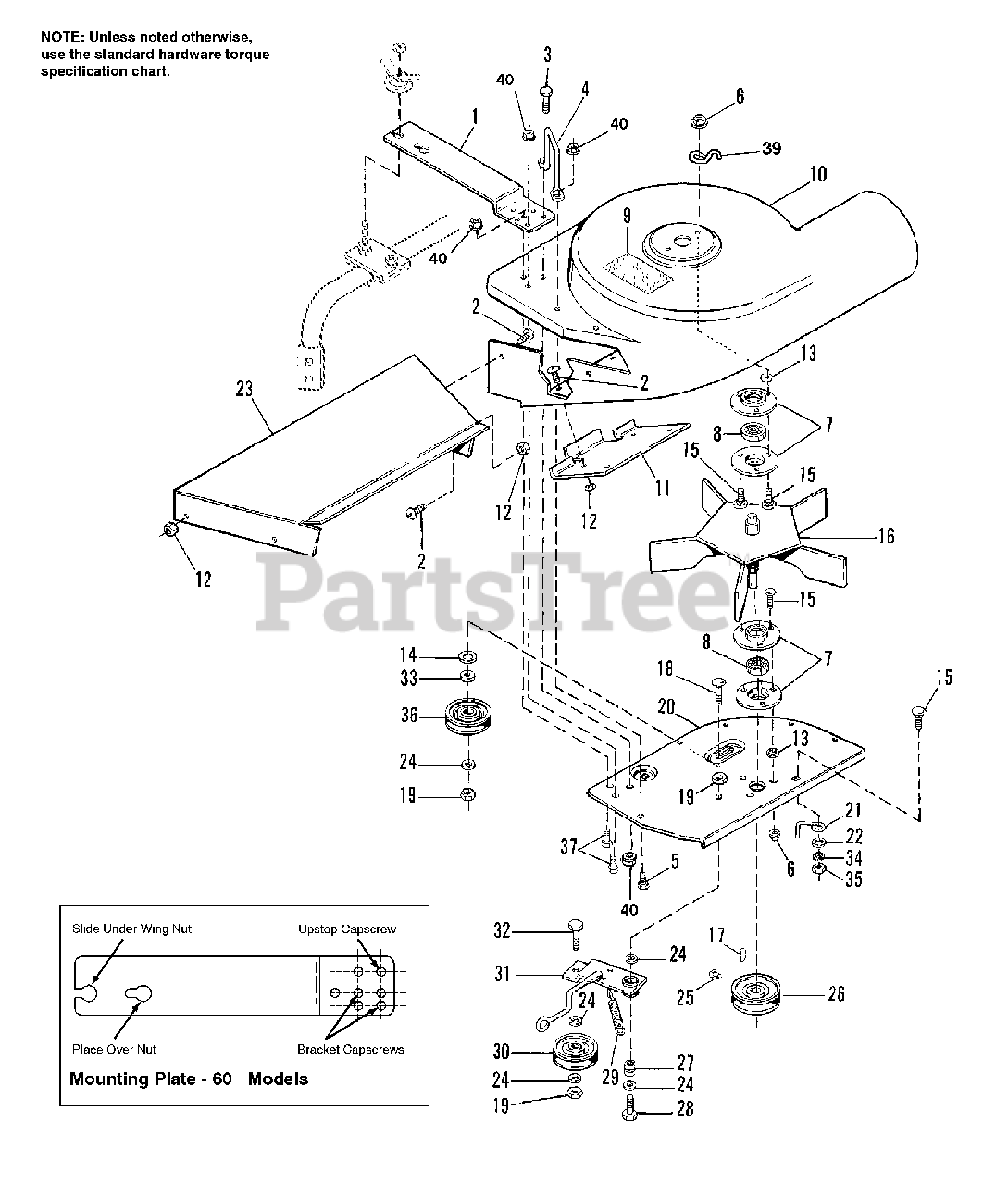

60" Turbo - Blower Assembly Parts Diagram

  • Title

1

Simplicity 1727404ASM

PLATE, Mounting

$13.99

$

Usually ships in 2-12 days

0

2

Simplicity 1921959SM

CAPSCREW, Hex Hd,1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

3

Simplicity 1960346SM

CAPSCREW, Hex Hd,1/4-20 x 2-1/4

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 1700936SM

STOP, Deflector

$24.99

$

Usually ships in 2-12 days

0

5

Simplicity 1924009SM

CAPSCREW, Hex Hd, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1927557SM

NUT, Hex Flange Whiz Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

9

Simplicity 1700259SM

DECAL, Danger

$27.99

$

Usually ships in 2-12 days

0

10

Simplicity 1706718SM

HOUSING, Blower

Note: (Incl. Ref. No. 9)

$384.99

$

Usually ships in 2-12 days

0

11

Simplicity 1679900SM

HOOK, Stone Guard
(Superseded to 1679900ASM)

$107.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960608SM

NUT, Hex Flange Lock, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 1933988SM

NUT, Push, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 1676435SM

WASHER, Plain,1/2

$8.49

$

Usually ships in 2-12 days

0

15

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

16

Simplicity 1706631ASM

FAN ASSEMBLY (5 Blade)

$384.99

$

In Stock, only 1 left!

0

17

Simplicity 2860403SM

KEY, Woodruff, 3/16

$10.99

$

In Stock, only 1 left!

0

18

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 10

0

19

Simplicity 1928731SM

NUT, Hex Jam Lock, 3/8-16

$4.99

$

In Stock, only 1 left!

0

20

Simplicity 1706652ASM

PLATE, Shroud

$62.99

$

Usually ships in 2-12 days

0

21

Simplicity 2170397SM

STOP, Belt

$11.99

$

Usually ships in 2-12 days

0

22

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

23

Simplicity 1702589ASM

COVER, Top

$153.99

$

Usually ships in 2-12 days

0

24

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1960619SM

SETSCREW, Sqr Hd, 5/16-18 x 5/16

$3.49

$

In Stock, Qty 10

0

26

Simplicity 1706634SM

PULLEY, Driven

$45.99

$

In Stock, only 3 left!

0

27

Simplicity 1666114SM

SPACER
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

28

Simplicity 1921969SM

CAPSCREW, Hex Hd, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

29

Simplicity 1679554SM

SPRING, Extension

$7.49

$

Usually ships in 2-12 days

0

30

Simplicity 2174561SM

PULLEY, Idler, Adjustable

$53.99

$

Usually ships in 2-12 days

0

31

Simplicity 1701827ASM

IDLER ARM ASSEMBLY

$67.99

$

Usually ships in 2-12 days

0

32

Simplicity 1921210SM

CAPSCREW, Hex Hd, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

33

Simplicity 2157424SM

WASHER, 3/8

Note: Special

$7.49

$

In Stock, Qty 5

0

34

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 2154534SM

PULLEY, Idler, Fixed

$32.99

$

Usually ships in 2-12 days

0

37

Simplicity 1923341SM

CAPSCREW, Hex Hd, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

39

Simplicity 1672689SM

S-HOOK

$31.99

$

Usually ships in 2-12 days

0

40

Simplicity 1920397SM

NUT, Hex Nylon Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
