1694494 - Simplicity Pacer 34" Walk-Behind Mower Engine Deck & Handle Bars Group (FI0000) Parts Diagram

Pacer 34" Walk-Behind Mower

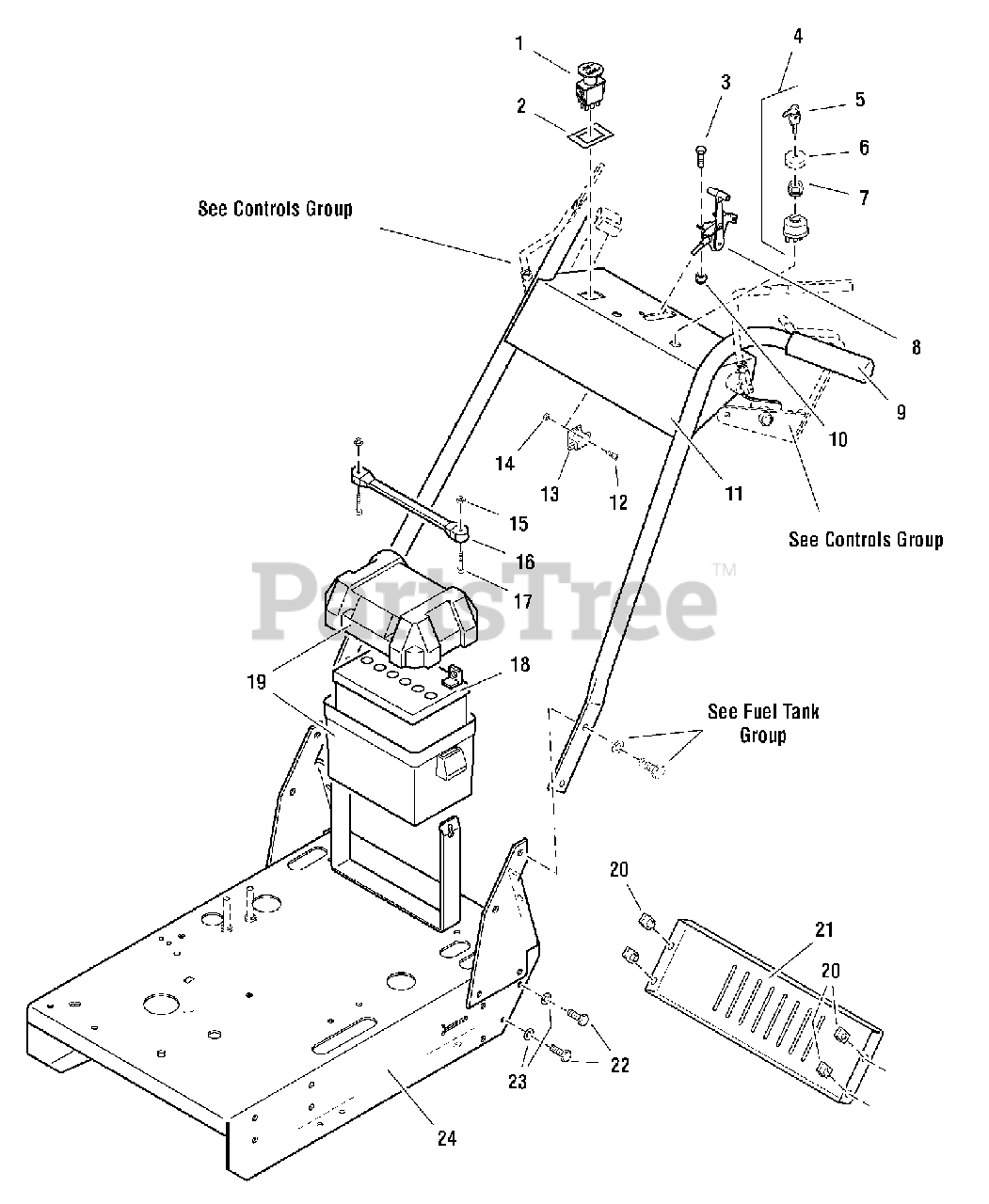

Engine Deck & Handle Bars Group (FI0000) Parts Diagram

  • Title

1

Simplicity 1722887SM

SWITCH, PTO

$35.99

$

In Stock, Qty 20+

0

2

Simplicity 5022222SM

SWITCH RETAINER RING

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1686734SM

SWITCH, Ignition, Complete (includes Ref 5 - 7)

$34.99

$

In Stock, only 2 left!

0

5

Simplicity 1717163SM

KEY, Ignition, Molded (set of 2)

$9.49

$

In Stock, only 3 left!

0

6

Simplicity 1704346SM

COVER

$4.99

$

In Stock, Qty 6

0

7

Simplicity 5022791SM

PLASTIC NUT

$3.49

$

In Stock, only 1 left!

0

8

Simplicity 5047629SM

CABLE, Throttle Control

$65.99

$

Usually ships in 2-12 days

0

9

Simplicity 5021841SM

FOAM GRIP
(Superseded to 84003988)

$8.99

$

In Stock, only 4 left!

0

10

Simplicity 5025095SM

NUT, Hex Nylon Lock, 1/4-20

$3.49

$

In Stock, only 4 left!

0

11

Simplicity 5047905CSM

HANDLE BAR ASSEMBLY

$176.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025179X4SM

SCREW, Phillips Head, #10-24 x 1/2
(Superseded to 1960392SM)

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 5021769SM

SWITCH, NC

$15.99

$

In Stock, only 2 left!

0

14

Simplicity 5025029SM

NUT, Hex, #10-24
(Superseded to 592578)

$4.99

$

In Stock, only 2 left!

0

15

Simplicity 703412

NUT, Hex Nylon Lock, #10-24

Note: (5025271)

$4.49

$

In Stock, only 3 left!

0

16

Simplicity 5021670SM

RUBBER STRAP

$14.99

$

In Stock, only 2 left!

0

17

Simplicity 5025270SM

SCREW, Phillips Head, #10-24 x 1

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 1685215SM

BATTERY, 12Volt (340 CCA)

$

$

Not available

19

Simplicity 5046188SM

BATTERY BOX
(Superseded to 5100688YP)

$69.99

$

In Stock, only 1 left!

0

20

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, only 1 left!

0

21

Simplicity 5047735CSM

REAR SHIELD

$30.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

23

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 5048157CSM

ENGINE DECK ASSEMBLY

$

$

Not available
